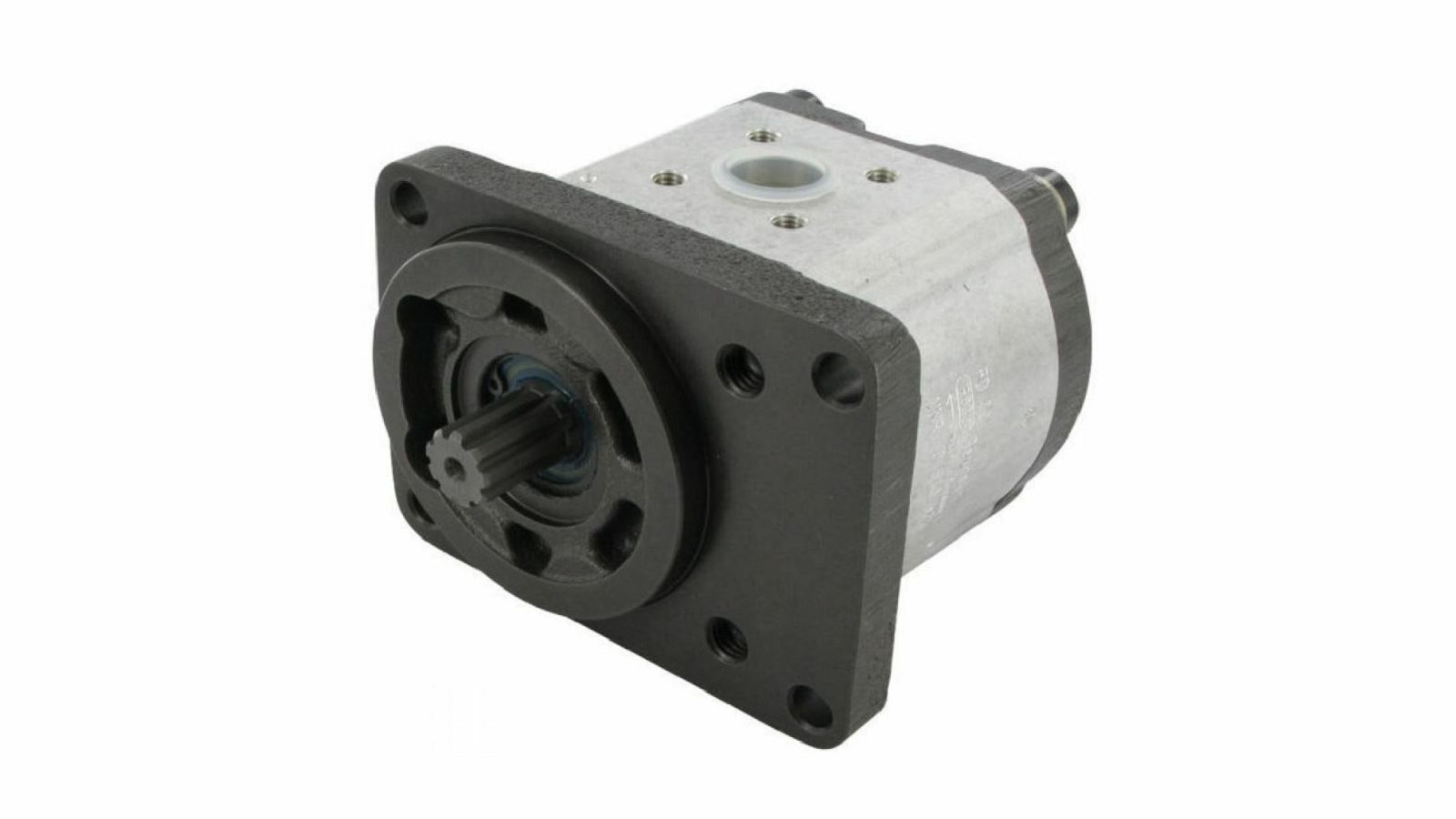

PUMPA 16cm3, LIJEVA, FENDT 1 / 2 / 3 / 4 / 5, 10, 600 D225-6-TD226B-6 - BOSCH REXROTH

R918C01544
AZPF-11-016LFB20MB
0510625317
G281940010010 FENDT
G285940010010
62000004600

-----------

Weight (kg)
3,72

Brand
Bosch-Rexroth

Operating pressure (bar)
230

Manufactured size
F

Max. revolution (rpm)
3000

Max. pressure (bar)
230

Material housing
aluminum

FI shaft/hub (mm)
16,5

Center FI flange (mm)
80

Direction of rotation
left

Version
single pump

Delivery volume (cm3/r)
16

Specification drive
shaft DIN 5482 B 17x14

FI suction connection (mm)
20

Mounting suction connection
hole circle 40 mm M 6

FI pressure connection (mm)
15

Mounting pressure connection
hole circle 35 mm M 6

Optional equipment valve
without valve

Assembly flange drive
4-hole 72x100 mm M 8

Usage
hoist
