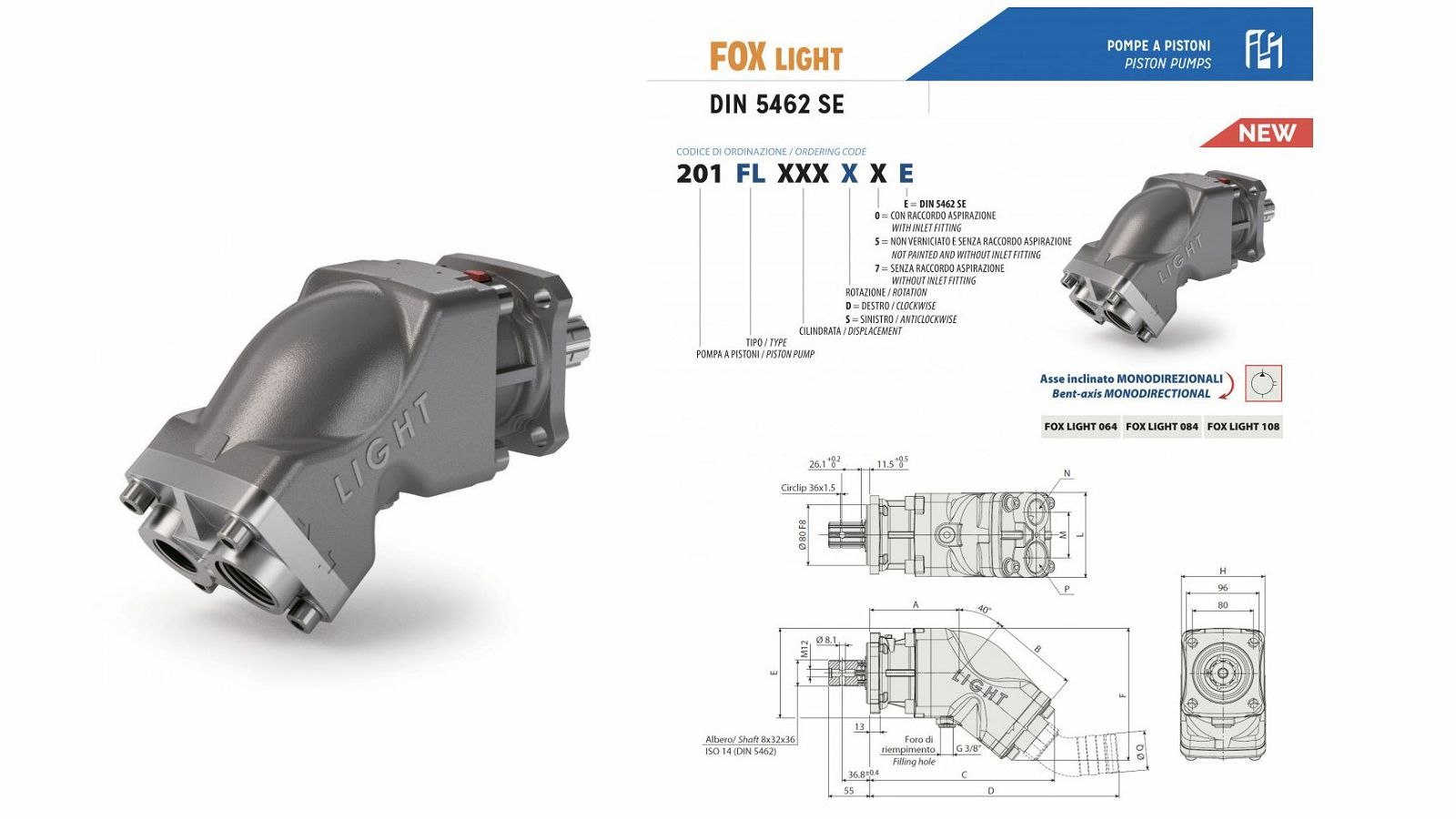

PUMPA 108cm3 DESNA, FOX LIGHT ISO, 201 FL - HYDROCAR

201FL108D7E
61100419000

-----------------


Weight (kg)
14,12

Brand
Hydrocar

Operating pressure (bar)
250

Max. revolution (rpm)
2000

Direction of rotation changeable
yes

Max. pressure (bar)
300

Delivery rate (cm3/r)
107,70

Direction of rotation
right

Standard drive DIN
DIN 5462

Material housing
cast steel

Construction form
inclined axis

Type
201 FL 108 D

Specification drive
shaft 8x32x36

Assembly flange drive
4-hole 80x80 mm

Suction connection
1 1/4 inch internal thread

Pressure connection
G 1 inch internal thread
