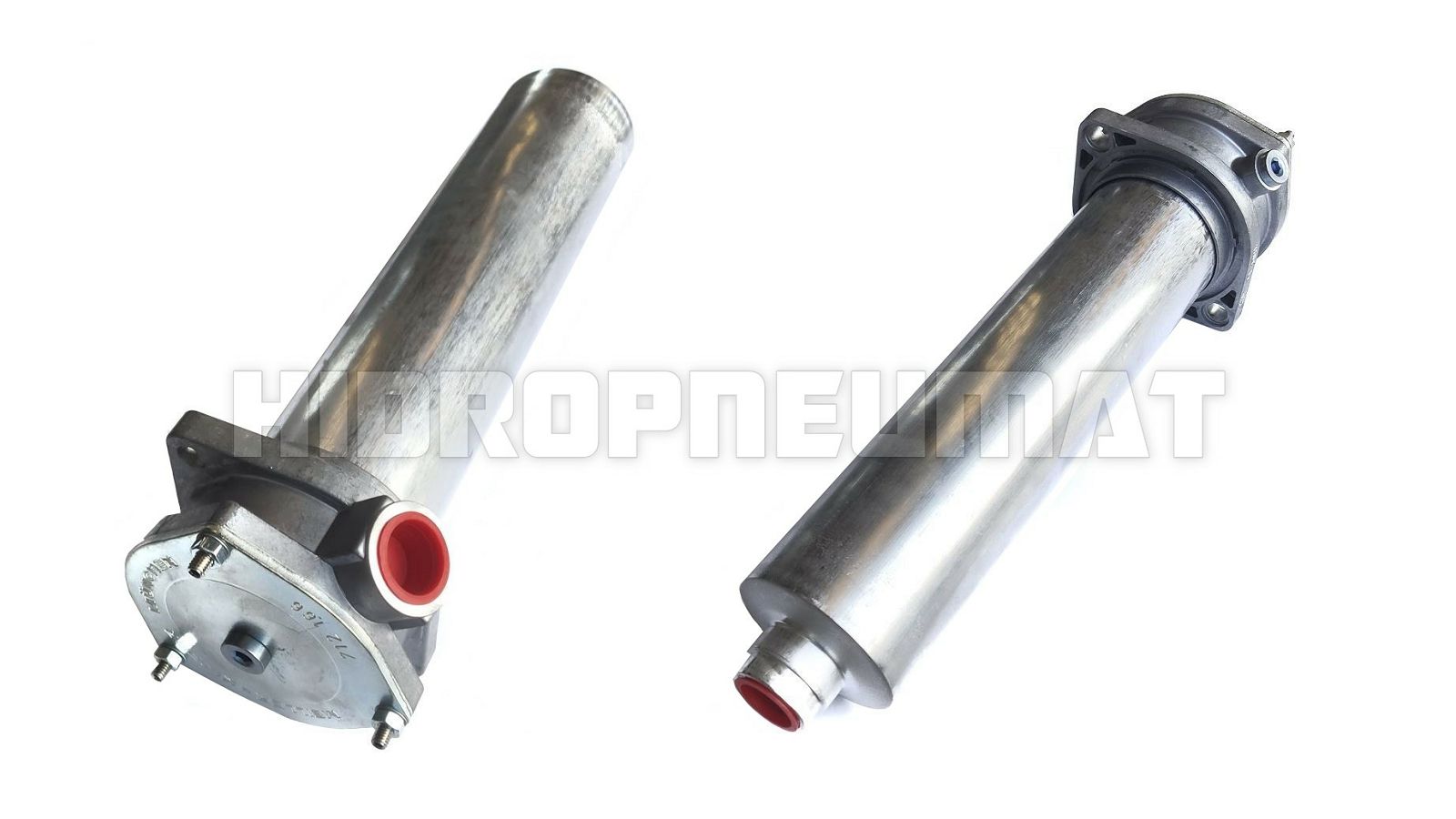

POVRATNI FILTER REZERVOARA HIDRAULIKE kpl. MEILLER

712166
712048 - uložak
61100154600
61102501900


Installation height (mm): 308
Max. operating pressure (bar): 6
Filter material: paper
Filtration fineness (µm): 10
Flow quantity (l/min): 140
Thread connection (inches): 3/4 internal thread
Assembly flange: 2-hole
fi mount hole circle (mm): 110-115
fi filter bowl (mm): 79
Ventilation filter: no
Connection contamination indicator: M 12x1.5 internal thread
Height over tank (mm): 58
Material housing: polyamide
Pressure bypass valve (bar): 2,5
