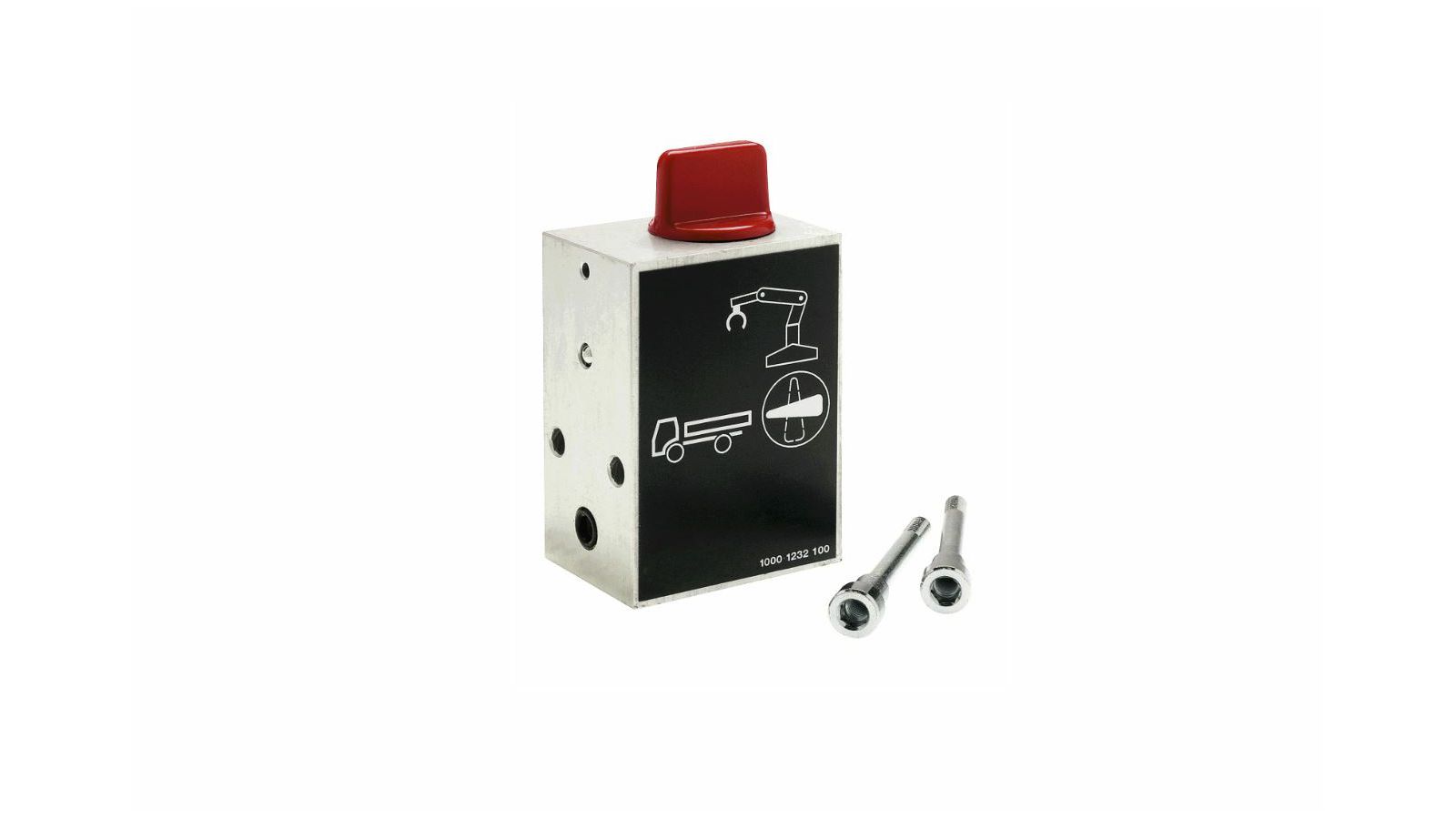

POMOĆNI PREKIDAČ CRVENA RUČKICA M10x1, MAX10Bar - MEILLER

10001232100
702996
39003663
61102599200

------------

Width (mm): 35
Weight (kg): 0,296
Height (mm): 85
Length (mm): 40
Material aluminum
Max. operating pressure (bar): 10
Number of connections pneumatic: 1
Position connection: rear
Connection pressure input: flange
Connection pressure output 1: M 10x1 internal thread
Mounting method: block assembly
Connection pressure switch: without
With signal lamp: no
Switch position: arrester tipper crane
Optional equipment: without
