EVM
EV M
1000598
52300002200
-----------
SET ZA MONTAŽU: V1021-42
-----------

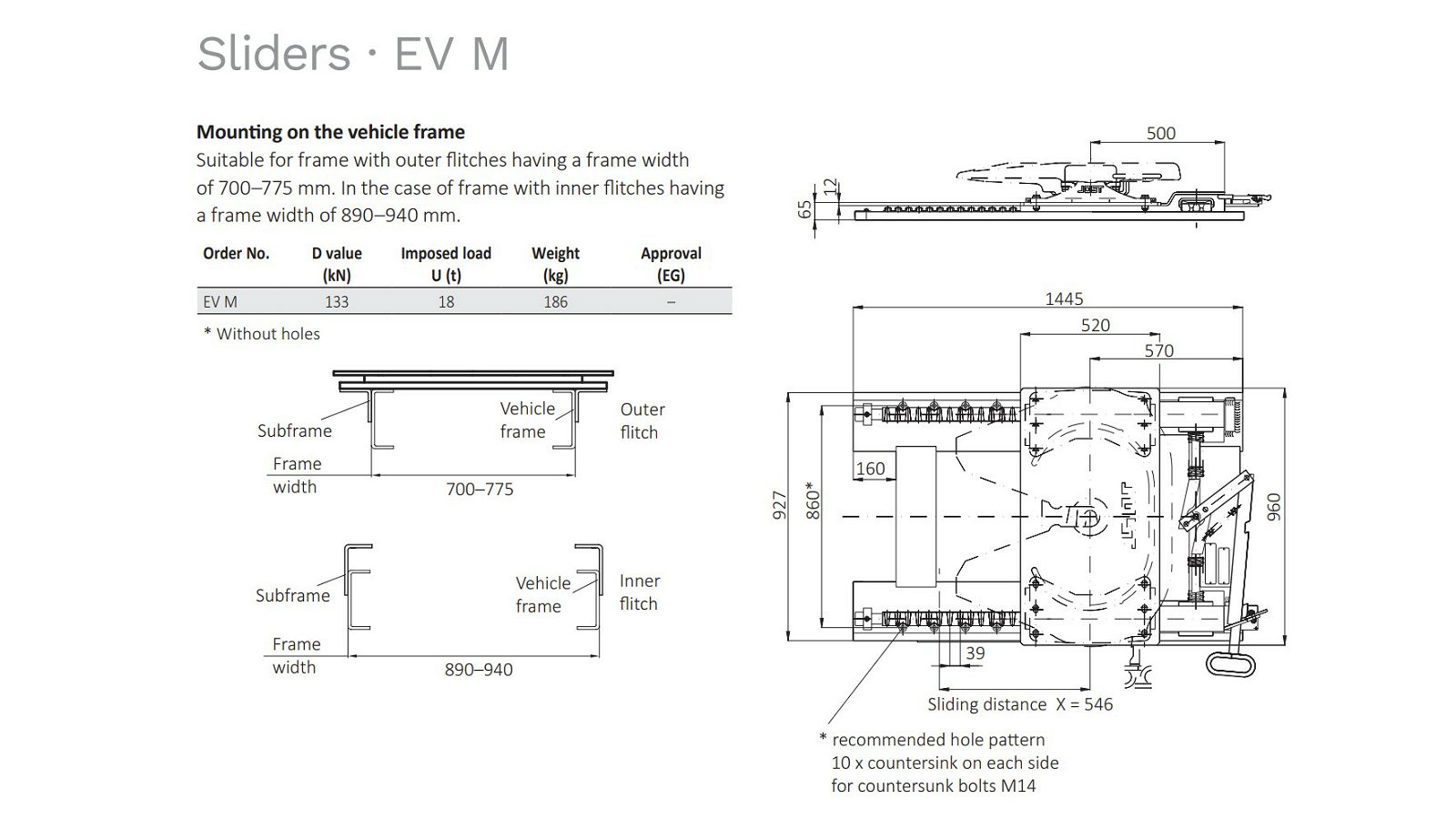

sliding device with ISO 3842 connection hole pattern for fifth-wheel couplings in accordance with DIN 74081,
with overall heights of fifth-wheel couplings up to 250 mm, particularly for the JSK 42 with DIN bearing, not suitable for construction site traffic
Brand
Jost
Fifth wheel load (t)
18
For frame width (mm)
700-775 exterior angle
890-940 interior angle
Height (mm)
65
Length (mm)
1445
Width (mm)
960
Ref. no.
Jost EV M
Setting range (mm)
546
Type
EV M
Weight (kg)
186
