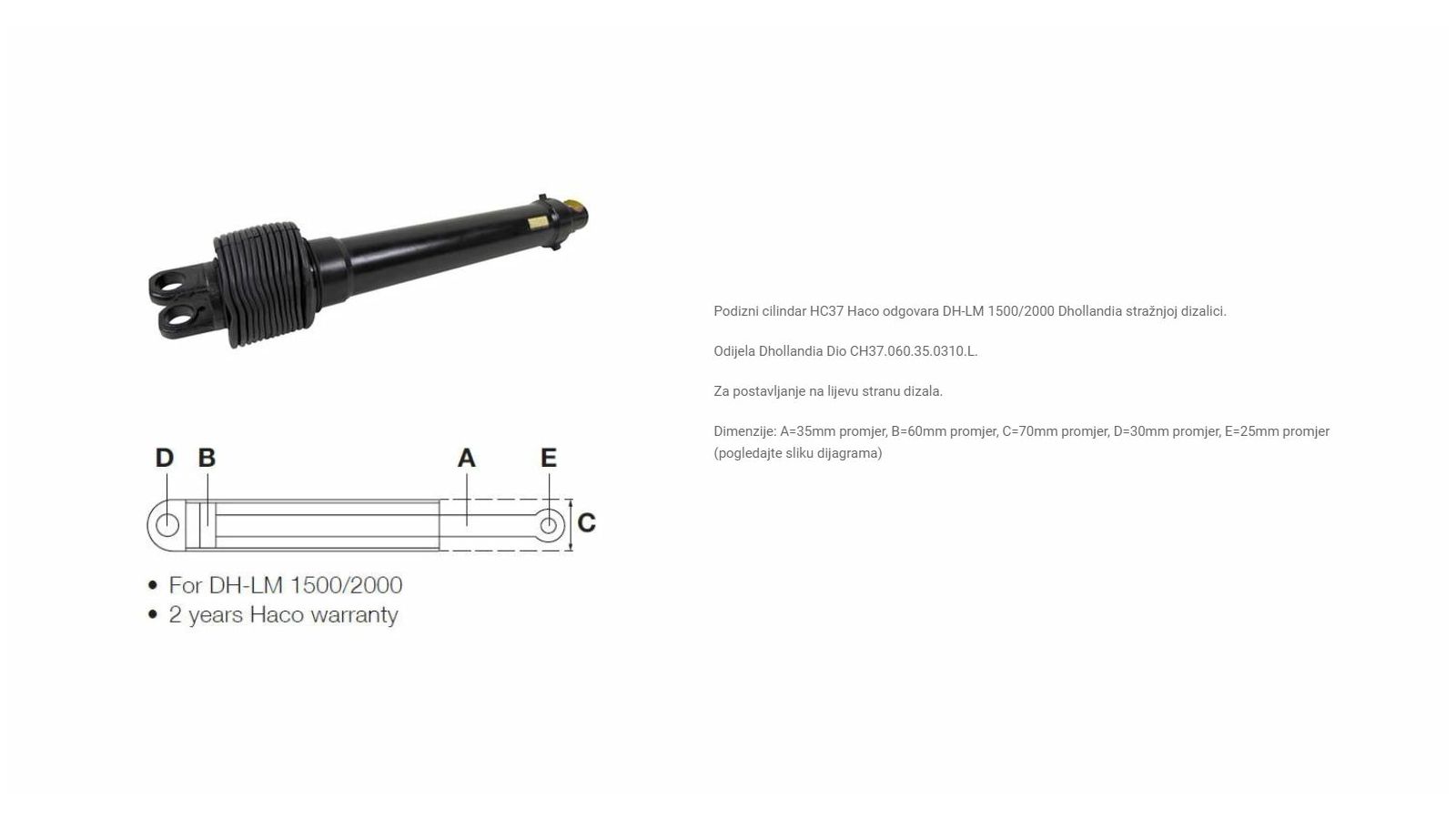

PODIZNI CILINDAR PODIZNE RAMPE HC37, LIJEVI, DHOLLANDIA, HACO

1056028H
CH37.060.35.0310.L
HC37
DH-LM1500/200


Info 1: installation location left
Attachment type on bottom side: U-bracket
Attachment type rod side: cross bore
Installation dimension (mm): 565
FI casing tube (mm): 70
FI mounting bottom side (mm): 25
FI mounting rod side (mm): 30
FI piston rod (mm): 35
Weight (kg): 10,576
Operating pressure (bar): 230
Piston FI (mm): 60
Brand: Haco
Stroke (mm): 310
Oil connection bottom side: 3/8 inch internal thread
Oil connection rod side: M 10x1
