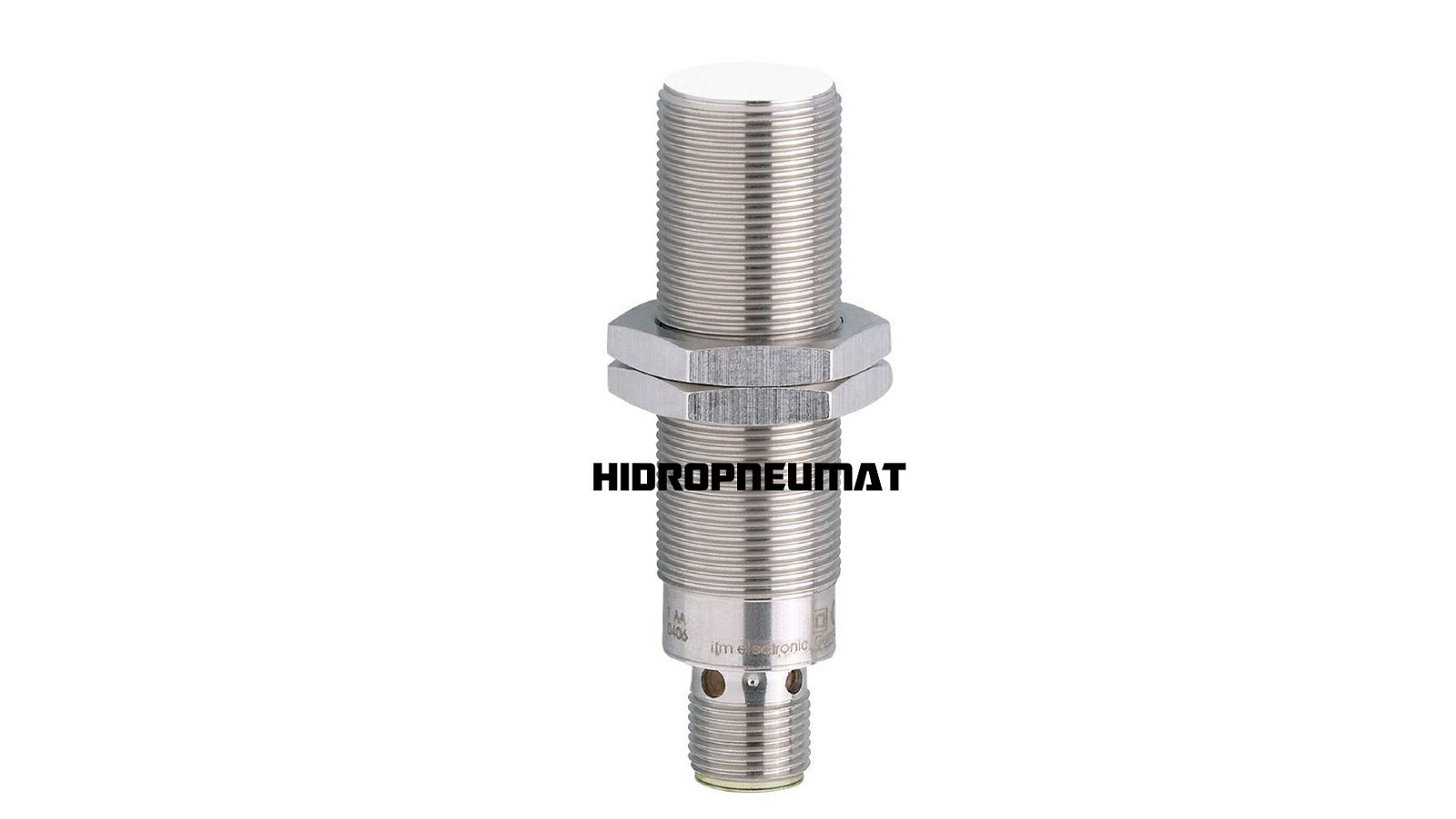

651212
IGM209
IGKC008BBSKG/M/US-104-DRO
61100471300
-----------
Electrical design
PNP
Output function
normally closed
Sensing range [mm]
8
Housing
threaded type
Dimensions [mm]
M18 x 1 / L = 70
Application
Special feature
Gold-plated contacts; Increased sensing range
Application
Use in mobile and harsh applications
Electrical data
Operating voltage [V]
10...36 DC
Current consumption [mA]
< 10
Protection class
II
Reverse polarity protection
yes
Outputs:
Electrical design
PNP
Output function
normally closed
Max. voltage drop switching output DC [V]
2.5
Minimum load current [mA]
2
Max. leakage current [mA]
0.5
Permanent current rating of switching output DC [mA]
100
Switching frequency DC [Hz]
200
Short-circuit protection
yes
Type of short-circuit protection
pulsed
Overload protection
yes
Detection zone:
Sensing range [mm]
8
Operating distance [mm]
0...6.48
Increased sensing range
YES
Accuracy / deviations:
Correction factor
steel: 1 / stainless steel: 0.7 / brass: 0.5 / aluminium: 0.45 / copper: 0.35
Hysteresis [% of Sr]
1...20
Operating conditions
Ambient temperature [°C]
-40...85
Protection
IP 67; IP 69K
