V0720
V0720/300VMP3/4
V0720VMP3/4
V0720/250
Bondioli & Pavesi VMD8004B3
61100434200
------------

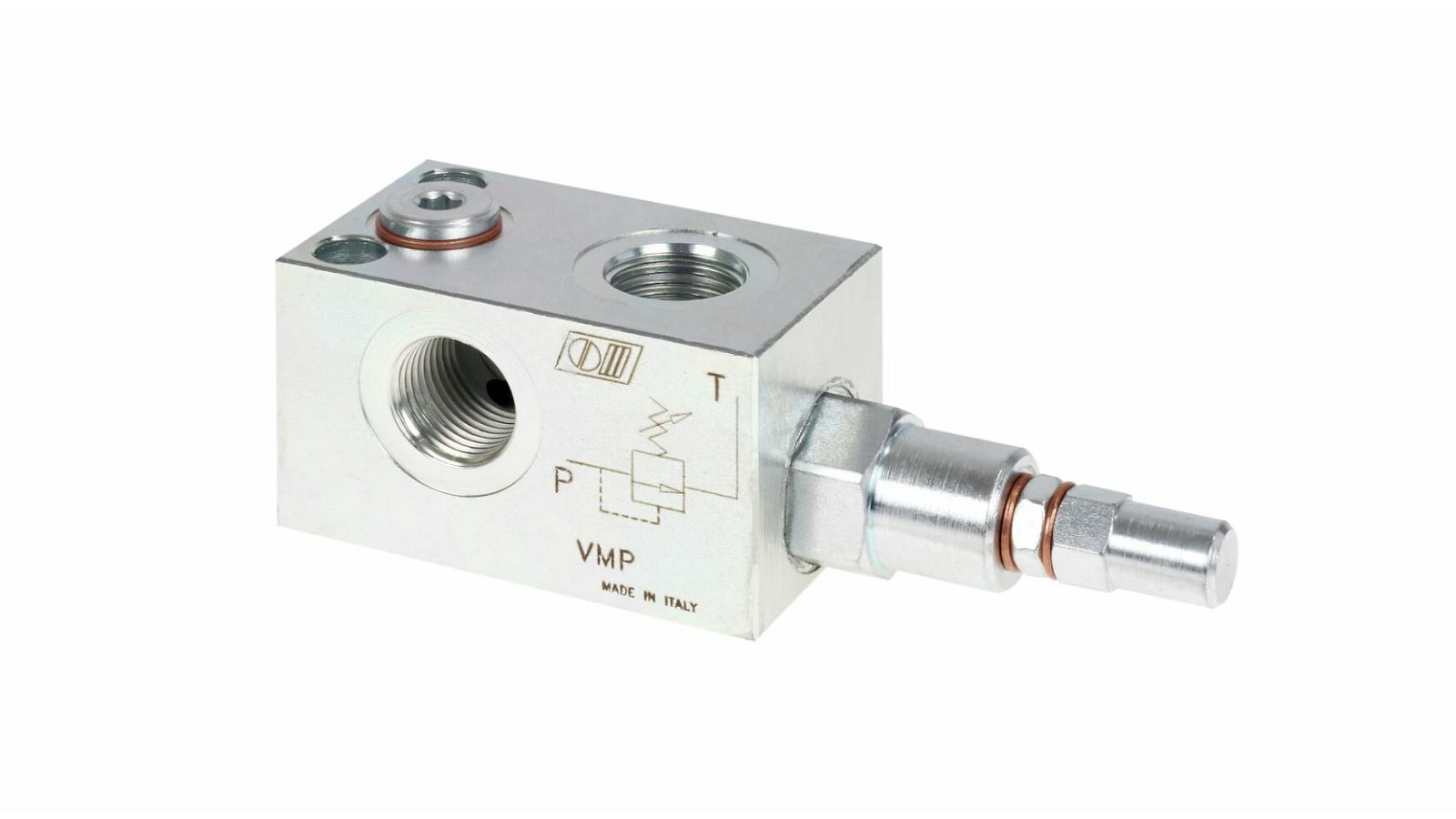

valve for pressure protection of hydraulic systems When the set pressure is reached, the pressure connection to the return connection opens and prevents overpressure in the system.
pressure port offset 90 degrees from return port
Actuation
hydraulic
Brand
other
Connection pressure input
3/4 inch internal thread
Connection pressure output
3/4 inch internal thread
Connection return flow input (inches)
without
Connection return flow output (inches)
3/4 internal thread
Including magnetic coil
no
Info 1
with manometer connection G 1/4 inch
Material
steel
Max. flow rate (l/min)
90
Max. operating pressure (bar)
300
Pressure setting range (bar)
80-300
Securing type
lock nut
cap nut
Set pressure (bar)
150
Setting type
adjusting screw
Surface
galvanized
Weight (kg)
1,472
