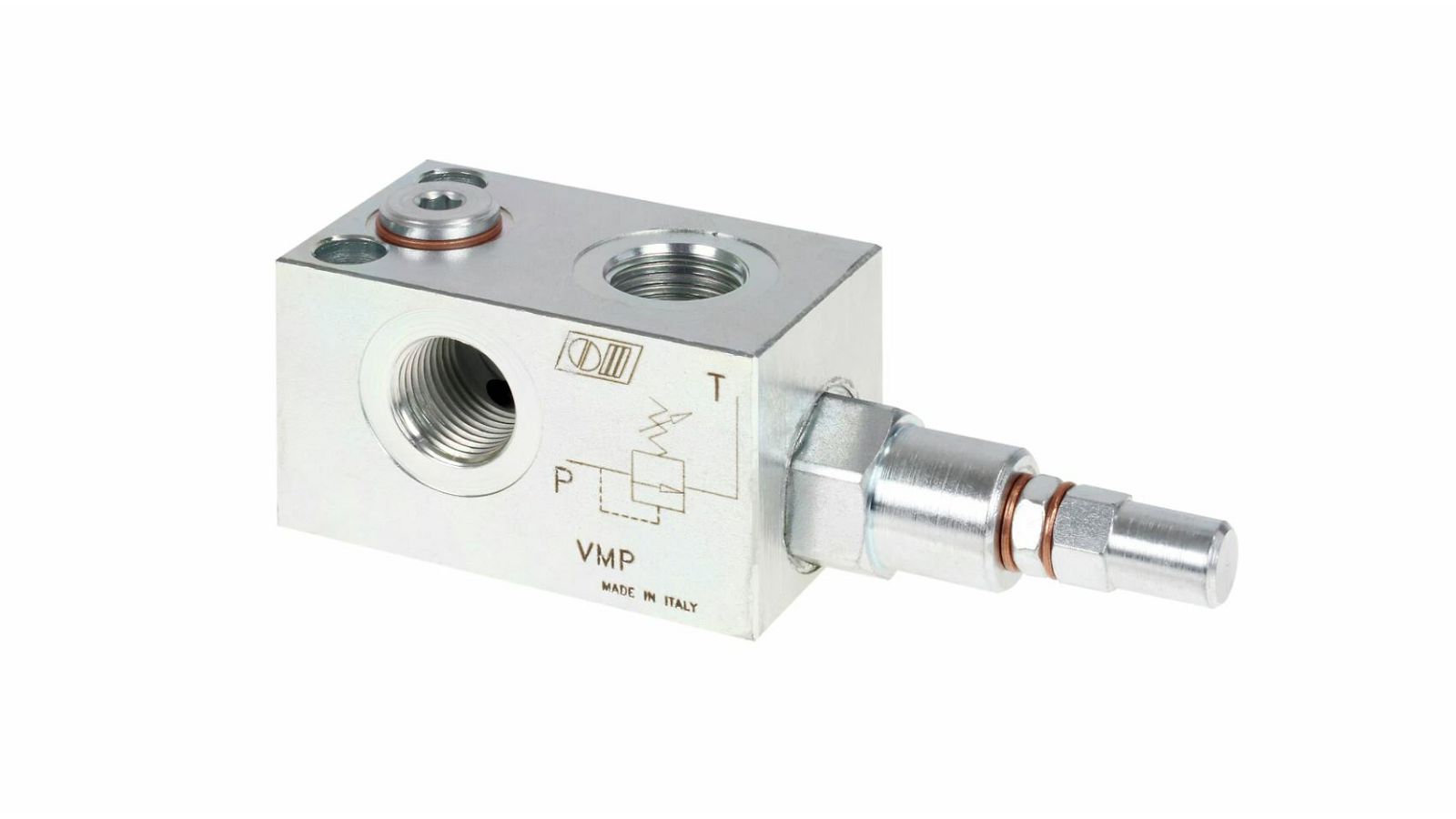

OSLOBAĐAJUĆI VENTIL V0700 VMP 3/8” 45l/min, 10-180 bar

V0700
V0700VMP3/8” 45 10-180 bar.
V0700/250
Bondioli & Pavesi VMD3502B3
61100434300

------------

valve for pressure protection of hydraulic systems When the set pressure is reached, the pressure connection to the return connection opens and prevents overpressure in the system.
pressure port offset 90 degrees from return port

Actuation
hydraulic

Brand
other

Connection pressure input
3/8 inch internal thread

Connection pressure output
3/8 inch internal thread

Connection return flow input (inches)
without

Connection return flow output (inches)
3/8 internal thread

Including magnetic coil
no

Info 1
with manometer connection G 1/4 inch

Material
steel

Max. flow rate (l/min)
45

Max. operating pressure (bar)
180

Pressure setting range (bar)
10-180

Securing type
lock nut
cap nut

Set pressure (bar)
90

Setting type
adjusting screw

Weight (kg)
0,825
