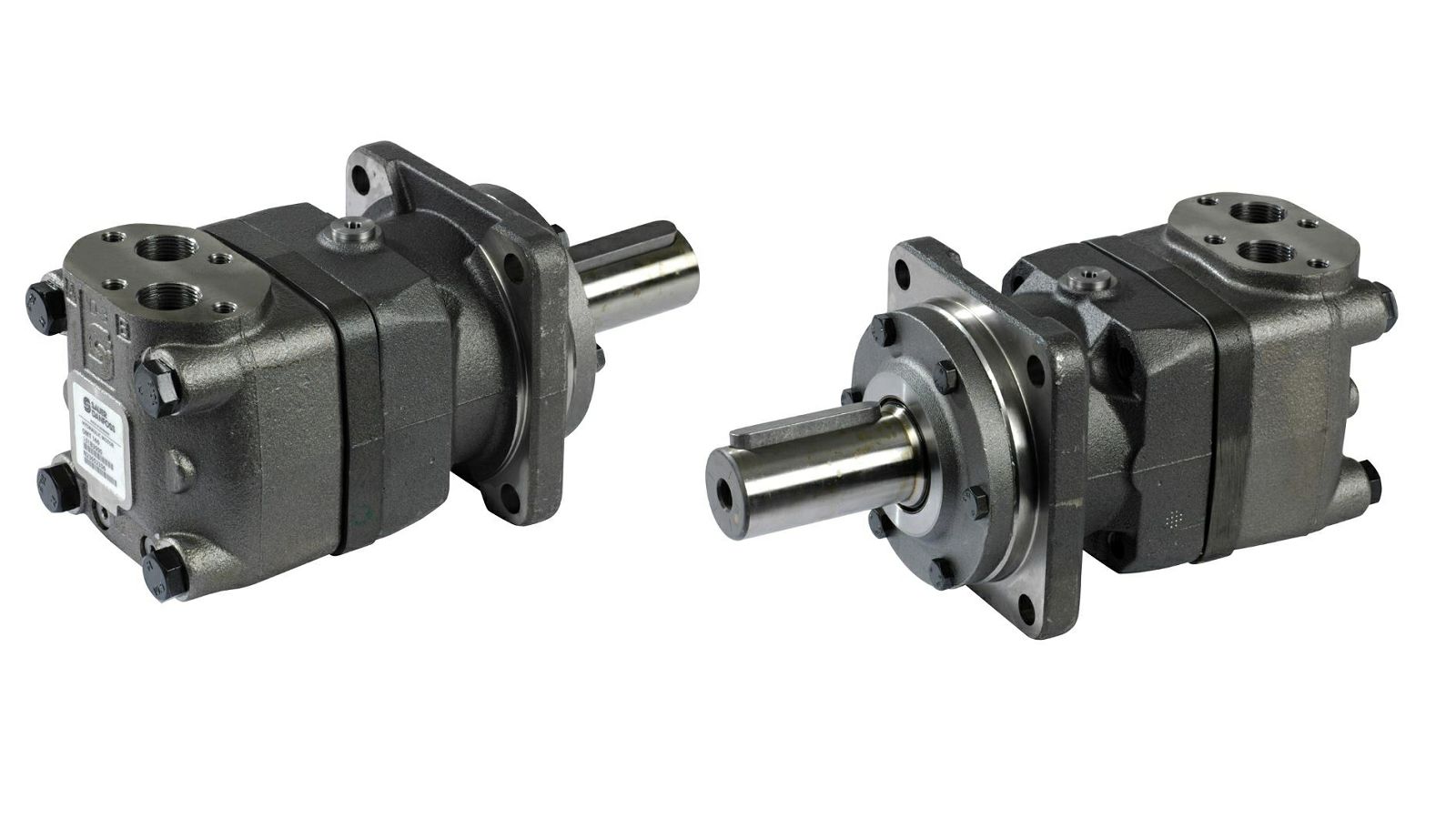

ORBITALNI MOTOR, OMT250 - DANFOSS

151B3002
OMT250
61100109200

-----------

Contamination level max.
22/20/16 - ISO 4406

Continuous power max.
33.5 kW

Continuous rotation max.
500 rpm

Dimension L
201 mm

Dimension L1
27.8 mm

Dimension L2
151 mm

Dimension L3
82 mm

Displacement
251.8 cm3

Drainport
G 1/4 BSP

Holes circle
160 mm

Intrastat code
84122981

Mounting flange
Square 125

Number of mounting holes
4

Oil viscocity recommended
20 - 75 cSt

Port position
Side

Pressure drop continuous max.
200 bar

Recess
125,0 mm

Shaft diameter
40 mm

Shaft keyway
12,0 mm

Shaft type
Cylindrical

Temperature ambient max.
+90 °C

Temperature ambient min.
-30 °C

Torque continuous max.
730 Nm

Working ports
G 3/4 BSP
