151F0506
OMS315
151F0206
OMS315151F0506
61100108800
----------
Weight (kg): 12.3
Power (kW): 15
Brand Danfoss
Operating pressure (bar): 230
Max. torque (Nm) :825
Max. revolution (rpm): 240
Max. pressure (bar): 300
Displacement (cm3/r): 314.9
fi shaft/hub (mm): 32
Standard drive DIN 6885
Material housing :cast steel

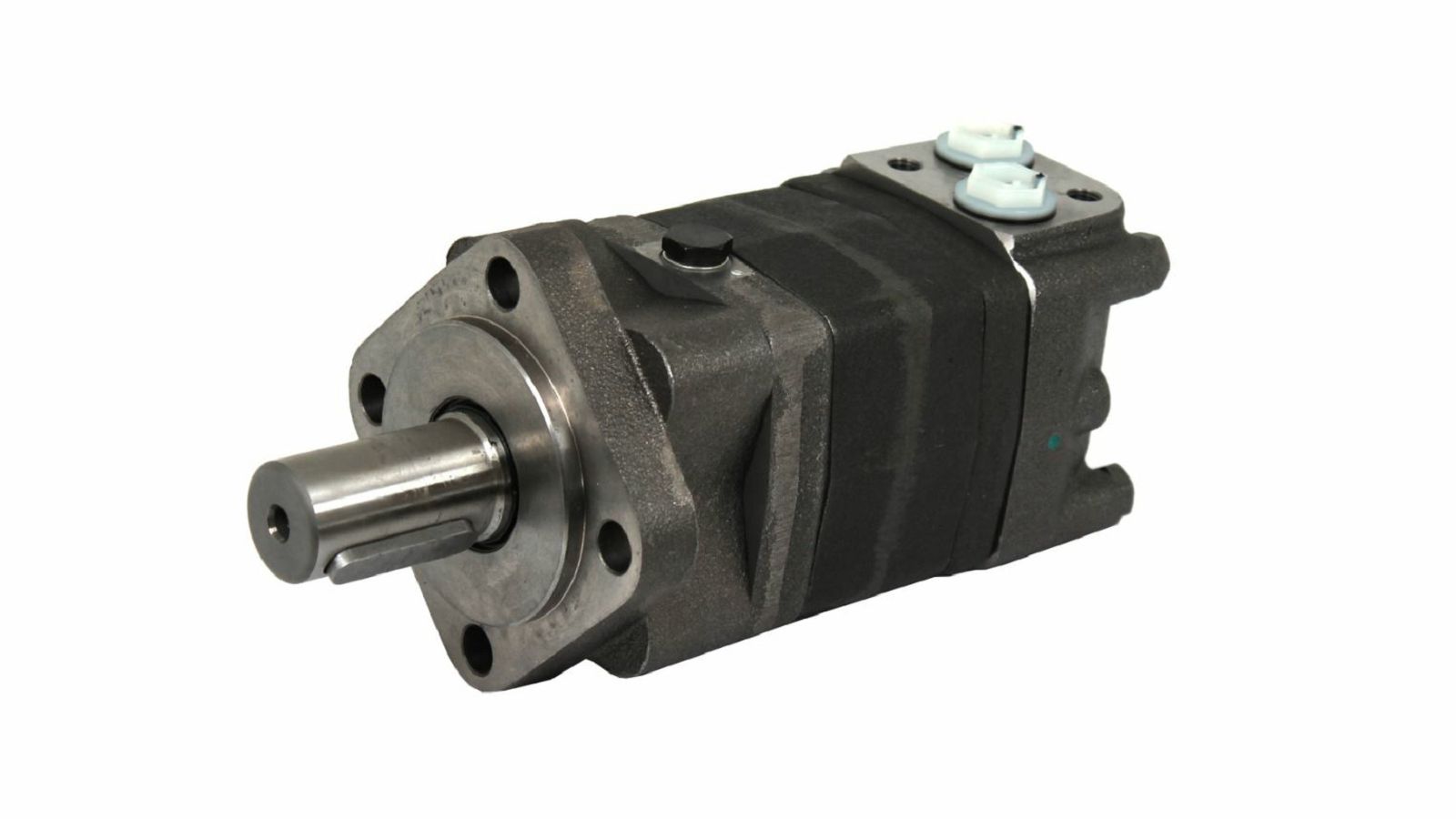

Type OMS 315
Max. oil flow (l/min): 75
Specification drive: cylindrical shaft with feather key thread internal
Optional equipment valve: check valve
Oil connection A (inches) :1/2 internal thread
Oil connection B (inches): 1/2 internal thread
Leakage oil connection (inches): 1/4 internal thread
Assembly flange drive: 4-hole 105x105 mm M 12
