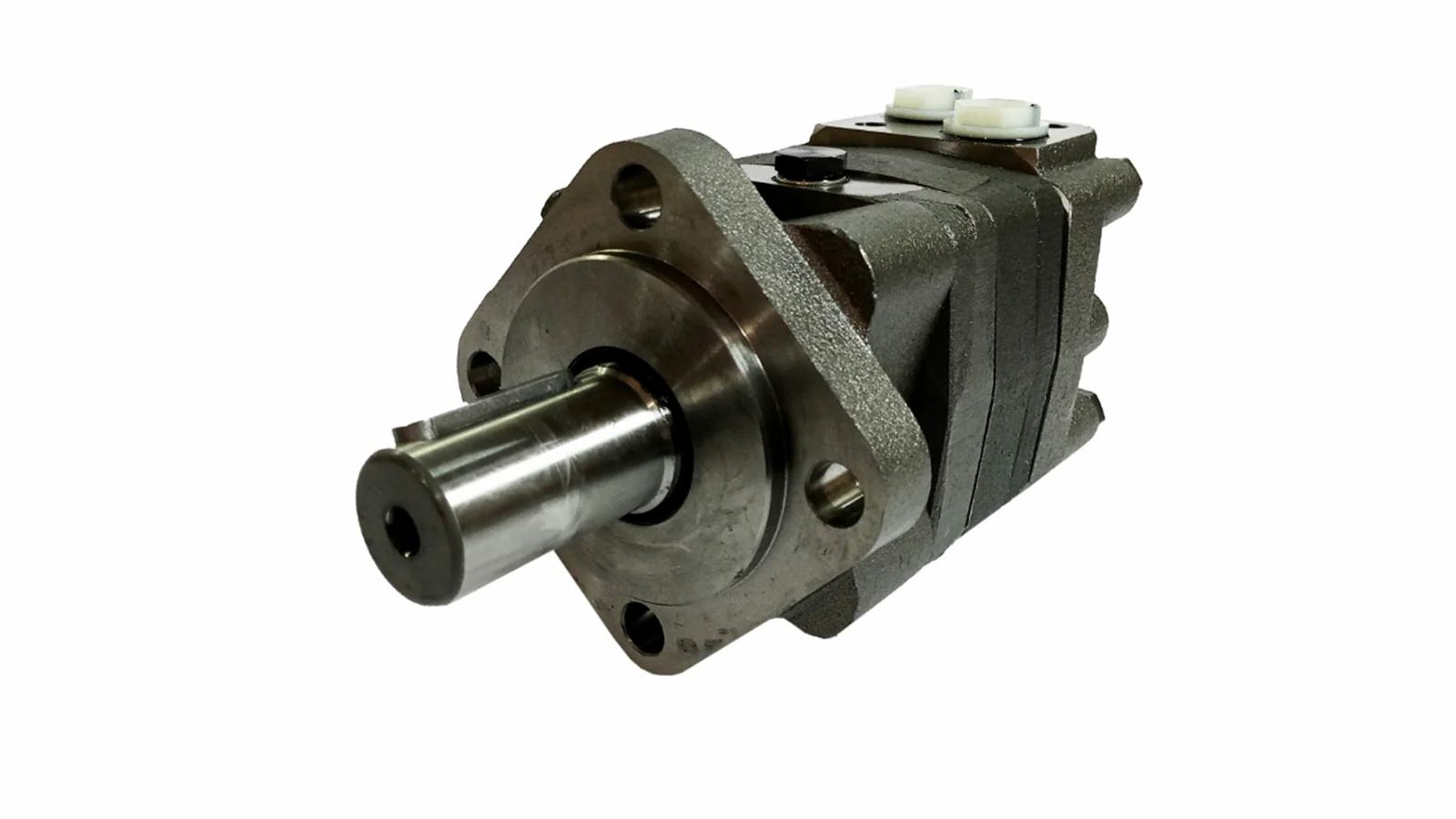

ORBITALNI MOTOR OMS125, 125,7cm3 - DANFOSS

151F0502
OMS125
151F0202
OMS125-151F0502
OMS125151F0502
Equivalent = 2000 Series 2-125AJA-E
61100108400

------------


Continuous power max.
18 kW

Continuous rotation max.
600 rpm

Dimension L
175 mm

Dimension L1
21.8 mm

Dimension L2
132 mm

Dimension L3
67 mm

Displacement
125.7 cm3

Drainport
G 1/4 BSP

Holes circle
106.4 mm

Intrastat code
84122981

Mounting flange
Square 82,5

Number of mounting holes
4

Oil viscocity recommended
20 - 75 cSt

Port position
Side

Pressure drop continuous max.
210 bar

Recess
82,5 mm

Shaft diameter
32 mm

Shaft keyway
10,0 mm

Shaft type
Cylindrical

Torque continuous max.
375 Nm

Working ports
G 1/2 BSP
