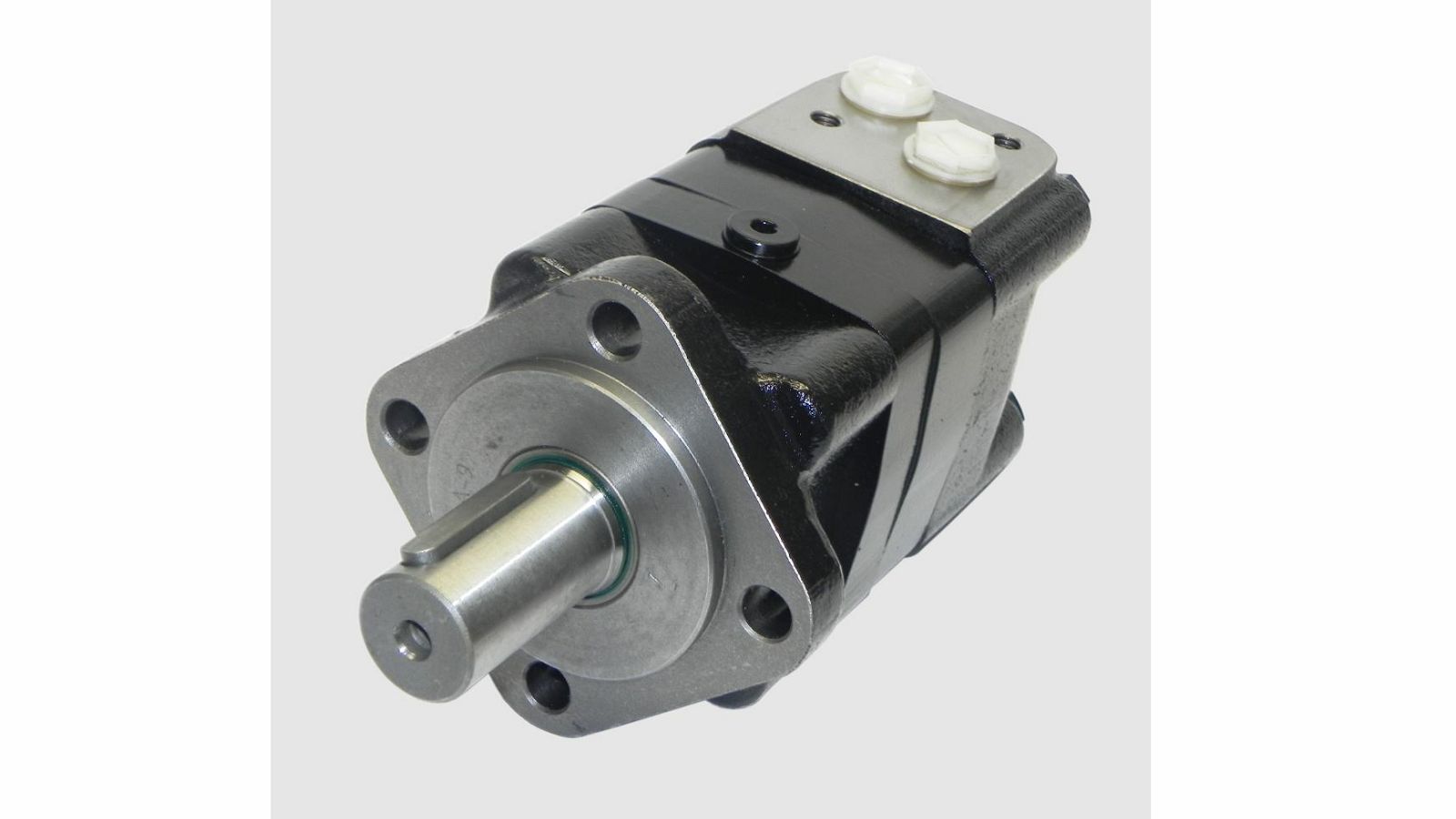

ORBITALNI MOTOR OMS 200, 200,0cm3/r - DANFOSS

151F0504
61100108600
OMS200151F0504


Weight (kg)
11.1

Power (kW)
16.5

Brand
Danfoss

Operating pressure (bar)
230

Max. torque (Nm)
610

Max. revolution (rpm)
375

Max. pressure (bar)
300

Displacement (cm3/r)
200

o shaft/hub (mm)
32

Standard drive DIN
6885

Material housing
cast steel

Type
OMS 200

Max. oil flow (l/min)
75

Specification drive
cylindrical shaft with feather key thread internal

Oil connection A (inches)
1/2 internal thread

Oil connection B (inches)
1/2 internal thread

Leakage oil connection (inches)
1/4 internal thread

Assembly flange drive
4-hole 105x105 mm M 12
