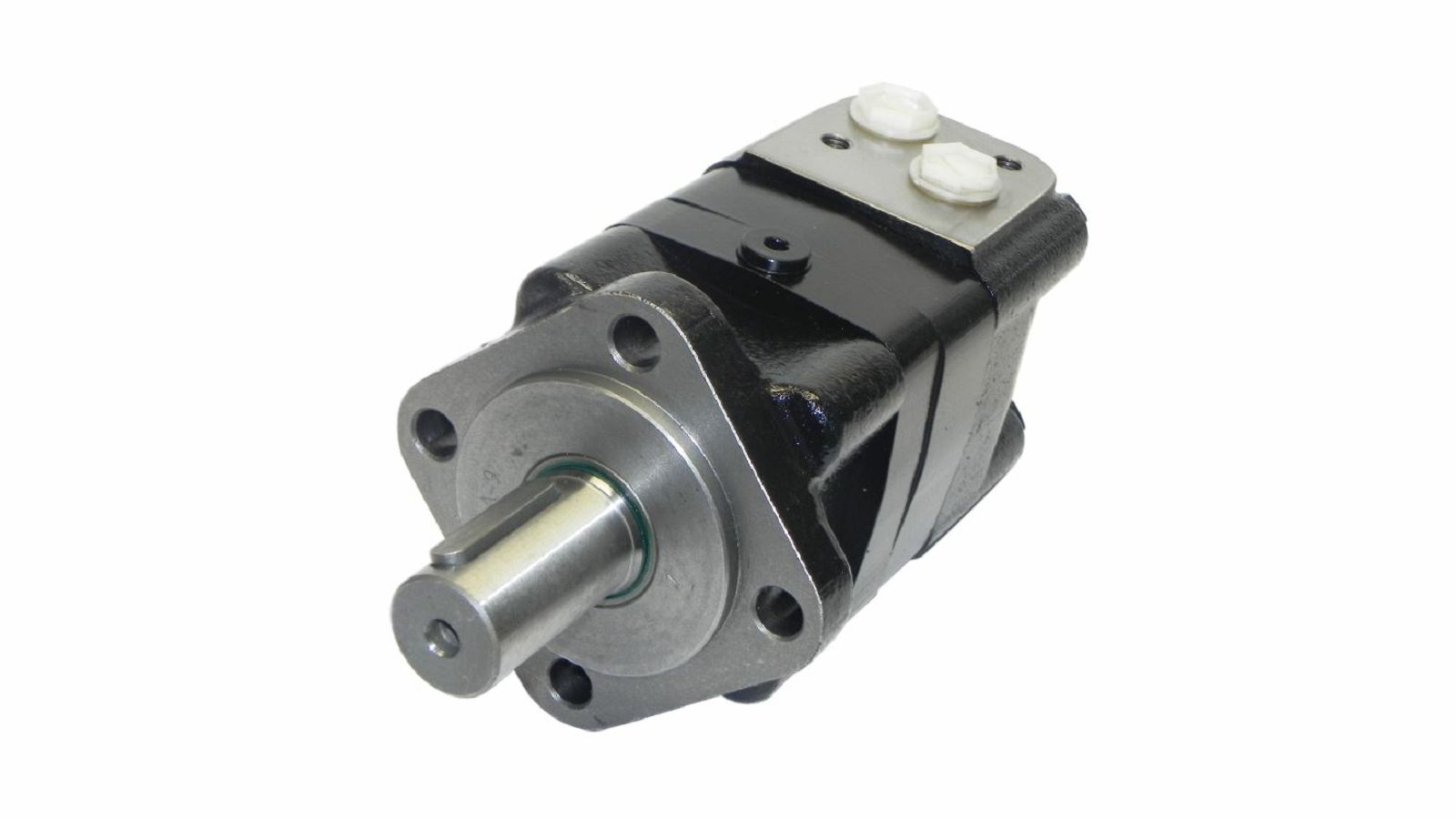

ORBITALNI MOTOR OMS 160, 159,7cm3/r, 16,5kW, RUPE 105x105 - DANFOSS OE

151F0503
61100108500
OMS160
151F0503 BMSY-160-E4BD
BMSY-160-E4BD


Weight (kg): 11.14
Power (kW): 16.5
Brand: Danfoss
Operating pressure (bar): 230
Max. torque (Nm): 490
Max. revolution (rpm): 470
Max. pressure (bar) :300
Displacement (cm3/r) :159.7
FI shaft/hub (mm): 32
Standard drive DIN 6885
Material housing: cast steel
Type: OMS 160
Max. oil flow (l/min): 75
Specification drive: cylindrical shaft with feather key thread internal
Optional equipment valve: check valve
Oil connection A (inches): 1/2 internal thread
Oil connection B (inches) :1/2 internal thread
Leakage oil connection (inches) :1/4 internal thread
Assembly flange drive :4-hole 105x105 mm M 12
