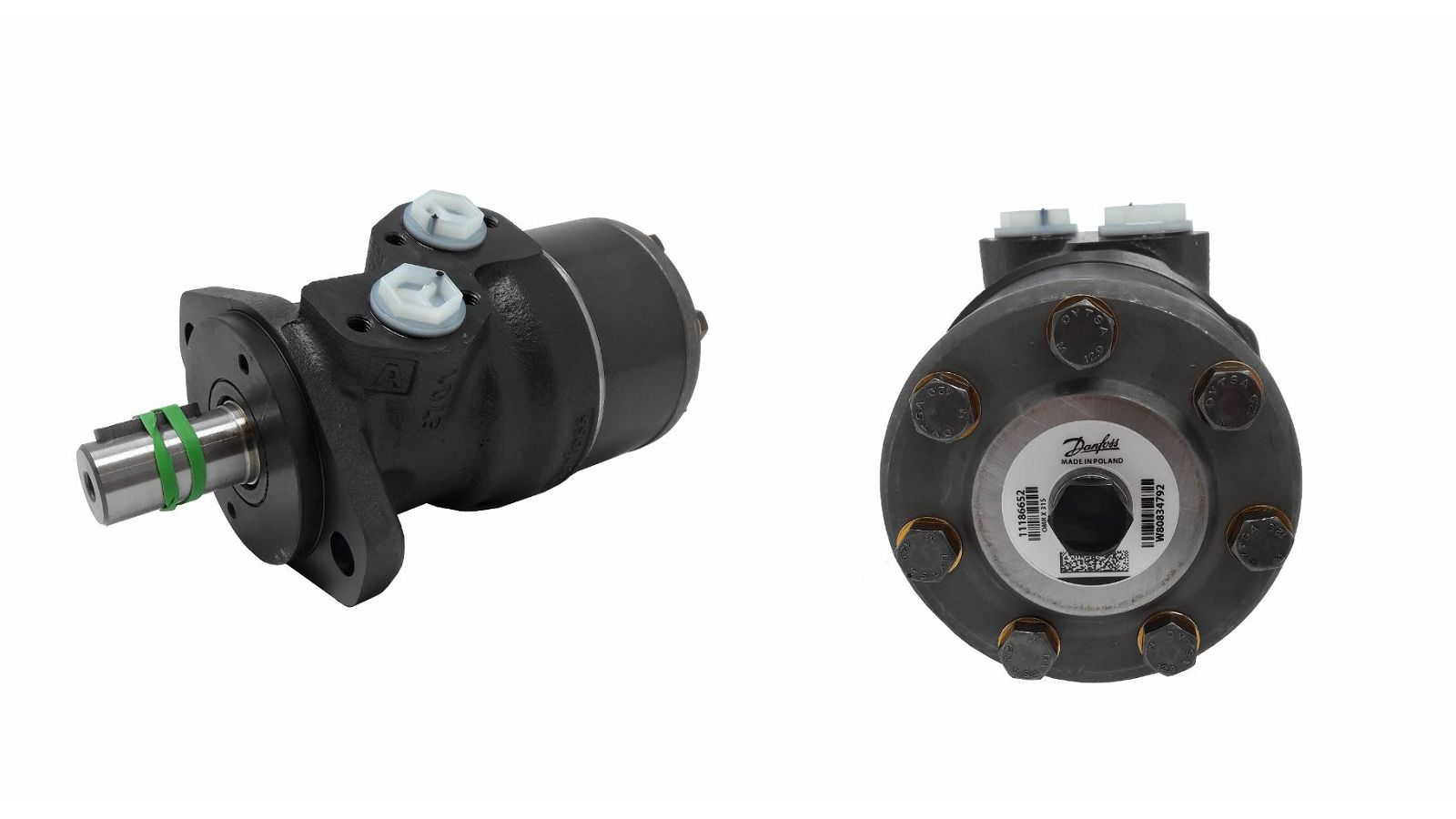

ORBITALNI MOTOR, OMRX315, 310,1cm3/r, OSOVINA 25mm, MAX Protok (LPM): 60 - DANFOSS

11186652
OMRX315
OMR315
OMR3151510717
1510717
61100427600

------------

Weight (kg)
9.084

Power (kW)
7

Brand
Danfoss

Operating pressure (bar)
100

Max. torque (Nm)
400

Max. revolution (rpm)
195

Max. pressure (bar)
140

Displacement (cm3/r)
310.1

o shaft/hub (mm)
25

Standard drive DIN
6885

Material housing
cast steel

Type
OMRX 315

Max. oil flow (l/min)
60

Specification drive
cylindrical shaft thread internal

Optional equipment valve
check valve

Oil connection A (inches)
1/2 internal thread

Oil connection B (inches)
1/2 internal thread

Leakage oil connection (inches)
1/4 internal thread

Assembly flange drive
2-hole oval (A2) M 12
