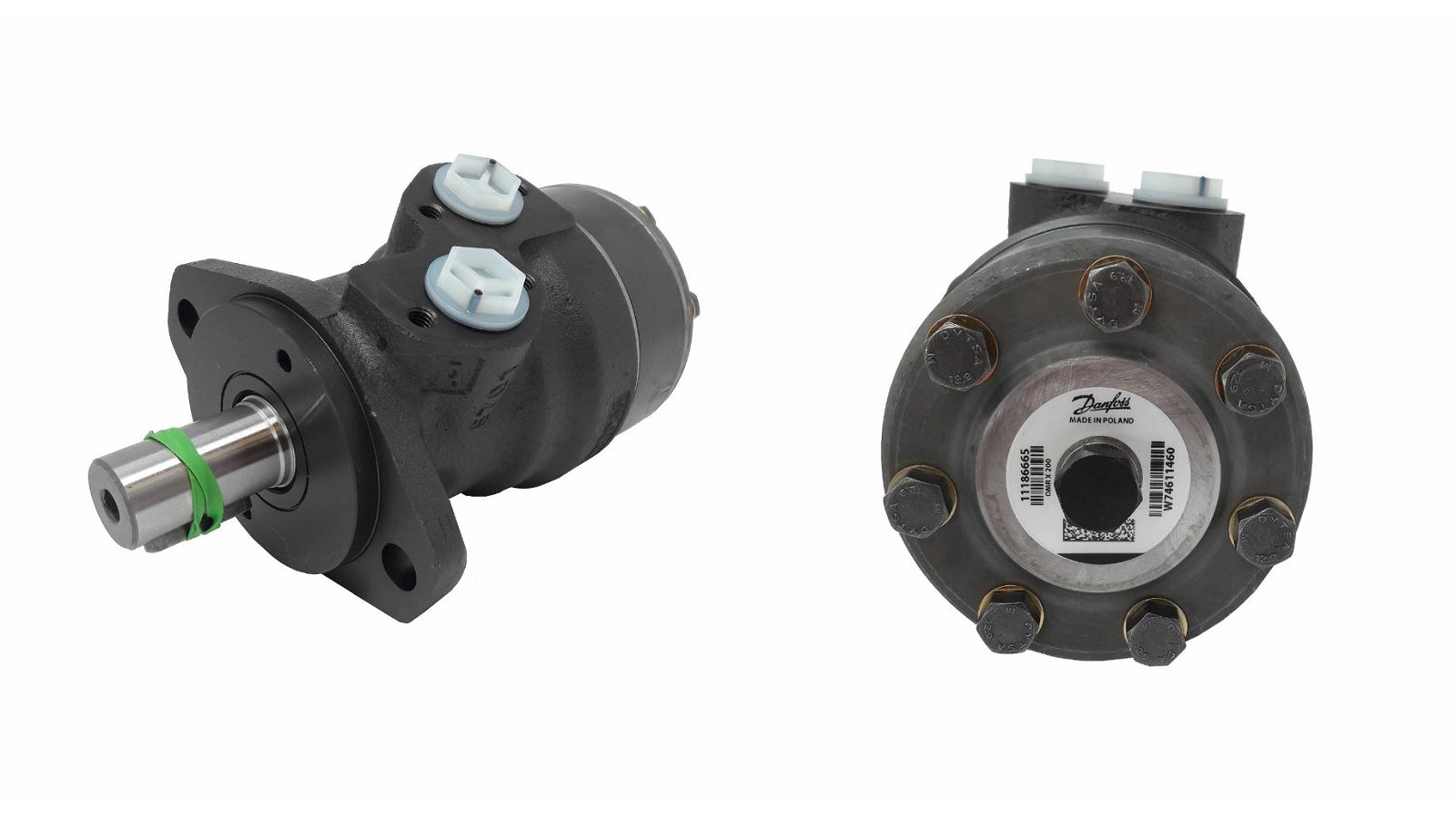

ORBITALNI MOTOR OMRX 200, 198,2cm3/r - DANFOSS

11186665
OMRX200
61100427400

Upgrade of 151-0415 (1510415)


Weight (kg)
8.265

Power (kW)
10.5

Brand
Danfoss

Operating pressure (bar)
150

Max. torque (Nm)
400

Max. revolution (rpm)
305

Max. pressure (bar)
195

Displacement (cm3/r)
198.2

o shaft/hub (mm)
25

Standard drive DIN
6885

Material housing
cast steel

Type
OMRX 200

Max. oil flow (l/min)
60

Specification drive
cylindrical shaft thread internal

Optional equipment valve
check valve

Oil connection A (inches)
1/2 internal thread

Oil connection B (inches)
1/2 internal thread

Leakage oil connection (inches)
1/4 internal thread

Assembly flange drive
2-hole oval (A2) M 12
