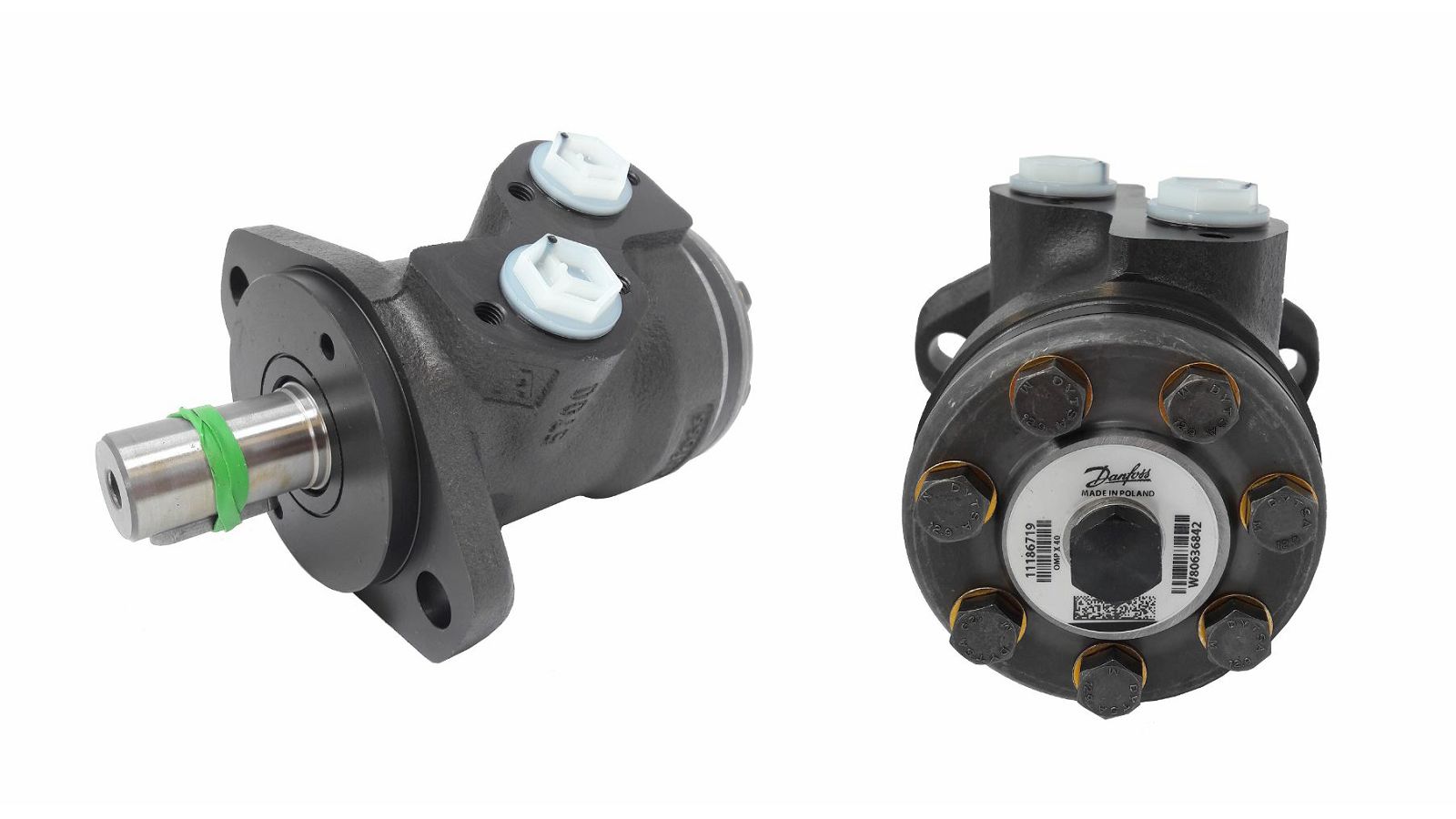

ORBITALNI MOTOR OMPX40, 40,0cm3/r - DANFOSS

11186719
OMPX40
1510642
OMP401510342
OMP40
1510342
61100426300

-----------

White Drive hidraulički motor OMPX 40
nasljednik White Drive tipova 151-0642 i 151-0342

----------

Weight (kg)
6.149

Power (kW)
7

Brand
Danfoss

Operating pressure (bar)
115

Max. torque (Nm)
52

Max. revolution (rpm)
1500

Max. pressure (bar)
160

Displacement (cm3/r)
40

FI shaft/hub (mm)
25

Standard drive DIN
6885

Material housing
cast steel

Type
OMPX 40

Max. oil flow (l/min)
60

Specification drive
cylindrical shaft with feather key thread internal

Optional equipment valve
check valve

Oil connection A (inches)
1/2 internal thread

Oil connection B (inches)
1/2 internal thread

Leakage oil connection (inches)
1/4 internal thread

Assembly flange drive
2-hole oval (A2) M 12
