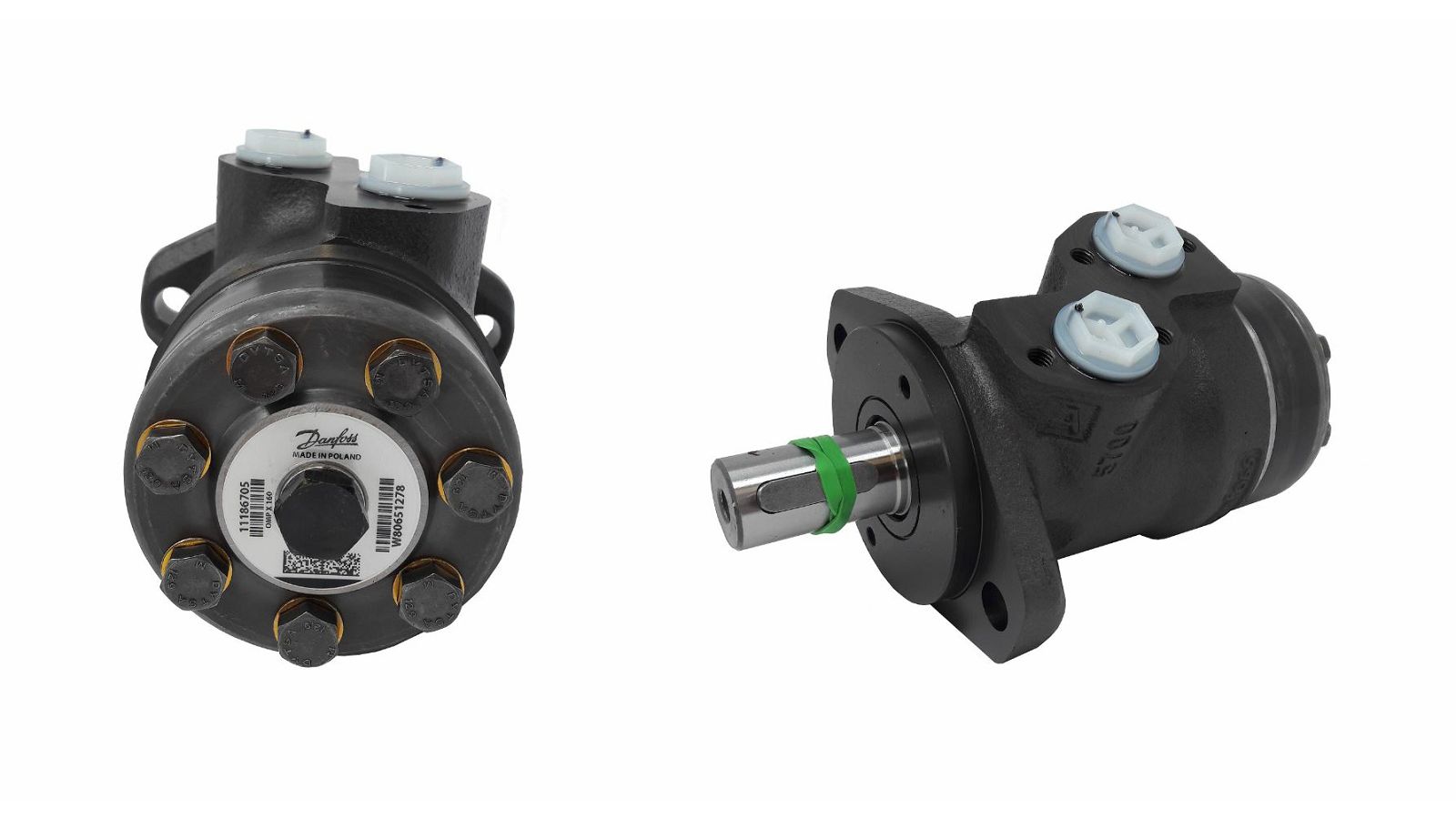

ORBITALNI MOTOR OMPX160, 155,7cm3/r - DANFOSS

11186705
1510614
1510314
OMP160
OMP1601510314
OMPX160
61100426800

----------

White Drive hidraulički motor OMPX 160
nasljednik White Drive tipova 151-0314 i 151-0614


Weight (kg) 6.756
Power (kW): 11.2
Brand Danfoss
Operating pressure (bar) 160
Max. torque (Nm) 335
Max. revolution (rpm) 385
Max. pressure (bar) 200
Displacement (cm3/r) 155.7
FI shaft/hub (mm): 25
Standard drive DIN 6885
Material housing: cast steel
Type OMPX 160
Max. oil flow (l/min) :60
Specification drive :cylindrical shaft with feather key thread internal
Optional equipment valve :check valve
Oil connection A (inches) :1/2 internal thread
Oil connection B (inches): 1/2 internal thread
Leakage oil connection (inches) :1/4 internal thread
Assembly flange drive: 2-hole oval (A2) M 12
