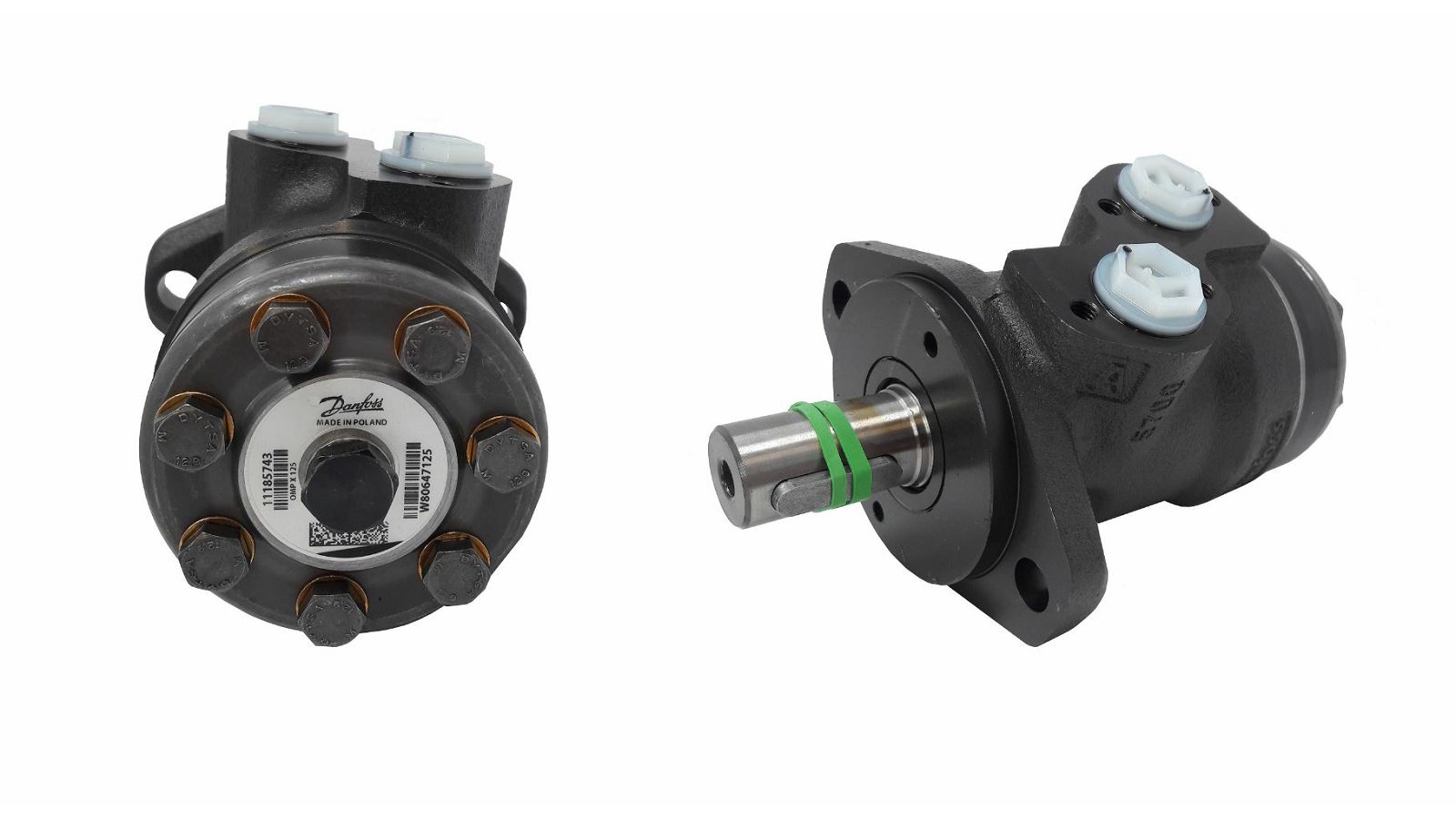

ORBITALNI MOTOR OMPX125, 125cm3/r - DANFOSS

11185743
OMPX125
61100426700


White Drive hidraulički motor OMPX 125
nasljednik White Drive tipova 151-0313 i 151-0613



Weight (kg)
6.573

Power (kW)
11.2

Brand
Danfoss

Operating pressure (bar)
160

Max. torque (Nm)
270

Max. revolution (rpm)
480

Max. pressure (bar)
200

Displacement (cm3/r)
125

FI shaft/hub (mm)
25

Standard drive DIN
6885

Material housing
cast steel

Type
OMPX 125

Max. oil flow (l/min)
60

Specification drive
cylindrical shaft with feather key thread internal

Optional equipment valve
check valve

Oil connection A (inches)
1/2 internal thread

Oil connection B (inches)
1/2 internal thread

Leakage oil connection (inches)
1/4 internal thread

Assembly flange drive
2-hole oval (A2) M 12
