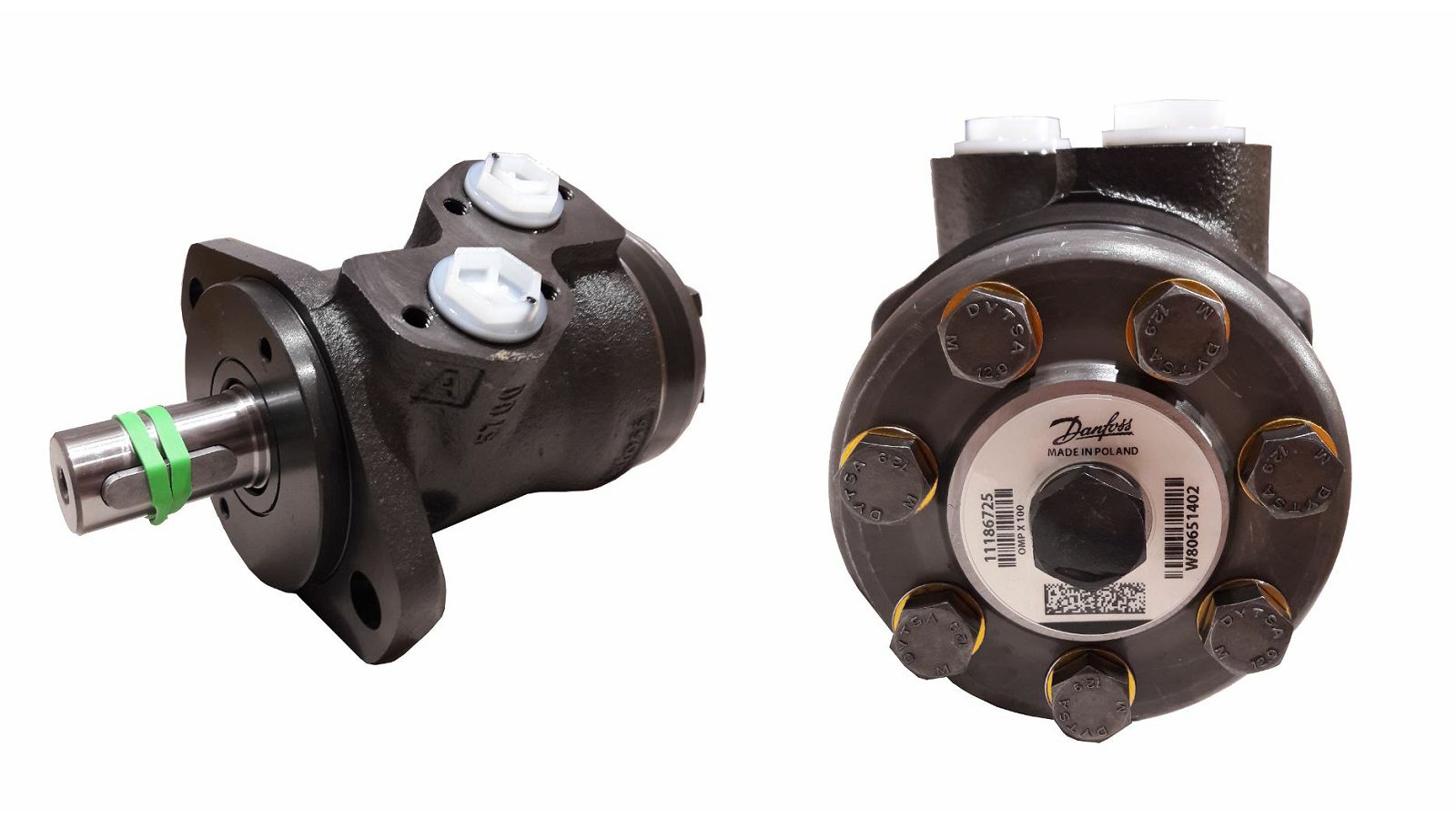

ORBITALNI MOTOR OMPX100, 97,3cm3/r - DANFOSS

11186725
OMPX100
1510612
1510312
OMP1001510612
OMP100
61100426600

------------

White Drive hidraulički motor OMPX 100
nasljednik White Drive tipova 151-0312 i 151-0612



Weight (kg)
6.484

Power (kW)
11.2

Brand
Danfoss

Operating pressure (bar)
160

Max. torque (Nm)
210

Max. revolution (rpm)
615

Max. pressure (bar)
200

Displacement (cm3/r)
97.3

FI shaft/hub (mm)
25

Standard drive DIN
6885

Material housing
cast steel

Type
OMPX 100

Max. oil flow (l/min)
60

Specification drive
cylindrical shaft with feather key thread internal

Optional equipment valve
check valve

Oil connection A (inches)
1/2 internal thread

Oil connection B (inches)
1/2 internal thread

Leakage oil connection (inches)
1/4 internal thread

Assembly flange drive
2-hole oval (A2) M 12
