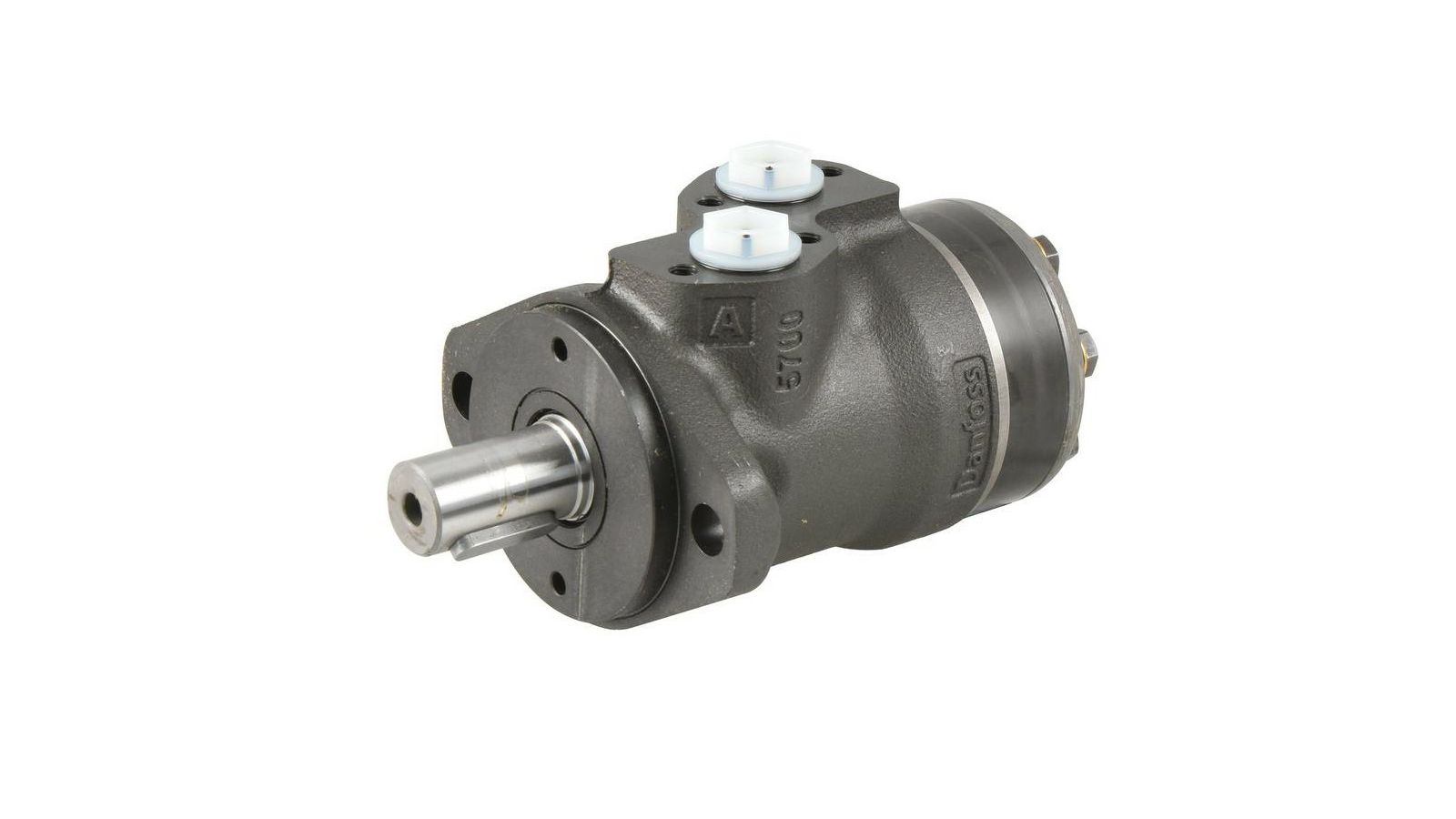

ORBITALNI MOTOR OMP50, OSOVINA 25mm, MAX 60L/min - DANFOSS

11185771
1510610
OMP50
OMP501510610
501510610
61100426400

----------

The operating principle of the motor is based on an internal gearbox consisting of a fixed toothed ring with internal teeth and a gearwheel meshing with it, through which the output torque and speed are transmitted.
The distributor valve is driven synchronously with the gear set so that the filling and emptying of the individual chambers of the engine takes place precisely - without losses.
The drum valve is part of the output shaft. The cardan shaft transmits the mechanical energy from the gear set to the output shaft.


Assembly flange drive
2-hole oval (A2) M 12

Displacement (cm3/r)
48,6

Installation length (mm)
133,2

Leakage oil connection (inches)
G 1/4 internal thread

Material housing
cast steel

Max. oil flow (l/min)
60

Max. pressure (bar)
200

Max. revolution (rpm)
1230

Max. torque (Nm)
110

Oil connection A (inches)
G 1/2 internal thread

Oil connection B (inches)
G 1/2 internal thread

Operating pressure (bar)
160

Optional equipment valve
check valve

Power (kW)
9,8

Specification drive
cylindrical shaft with feather key thread internal

Standard drive
DIN 6885

Weight (kg)
6,127

o shaft/hub (mm)
25
