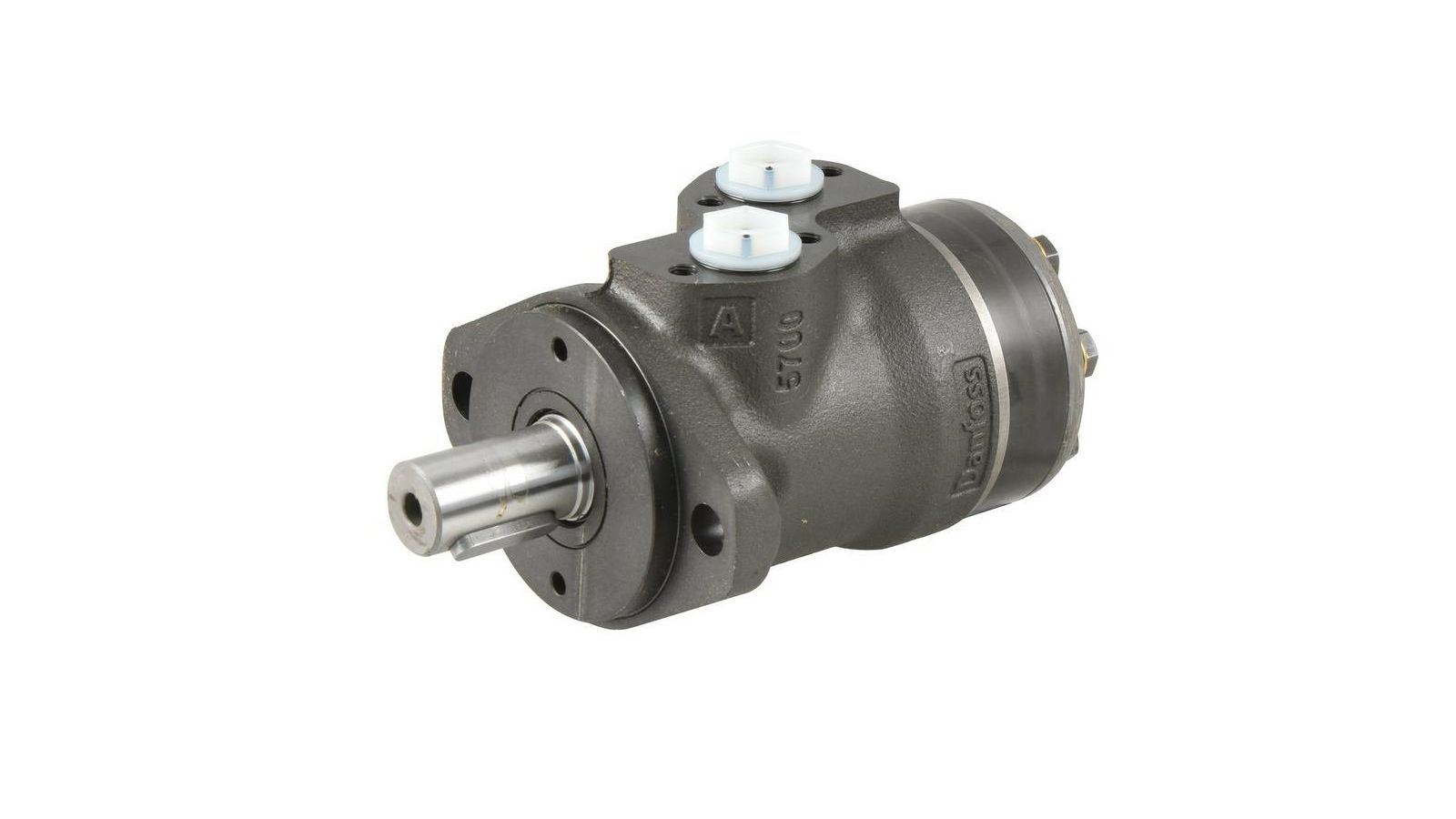

ORBITALNI MOTOR OMP315, OSOVINA 25mm, MAX 60L/min - DANFOSS

11186712
OMP3151510317
1510317
1510617
OMP315
OMPX315
61100427000

------------

Assembly flange drive
2-hole oval (A2) M 12

Brand
White

Displacement (cm3/r)
306,1

Installation length (mm)
167,6

Leakage oil connection (inches)
G 1/4 internal thread

Material housing
cast steel

Max. oil flow (l/min)
60

Max. pressure (bar)
125

Max. revolution (rpm)
195

Max. torque (Nm)
400

Oil connection A (inches)
G 1/2 internal thread

Oil connection B (inches)
G 1/2 internal thread

Operating pressure (bar)
100

Optional equipment valve
check valve

Power (kW)
7

Specification drive
cylindrical shaft with feather key thread internal

Standard drive
DIN 6885

Weight (kg)
7,277

o shaft/hub (mm)
25
