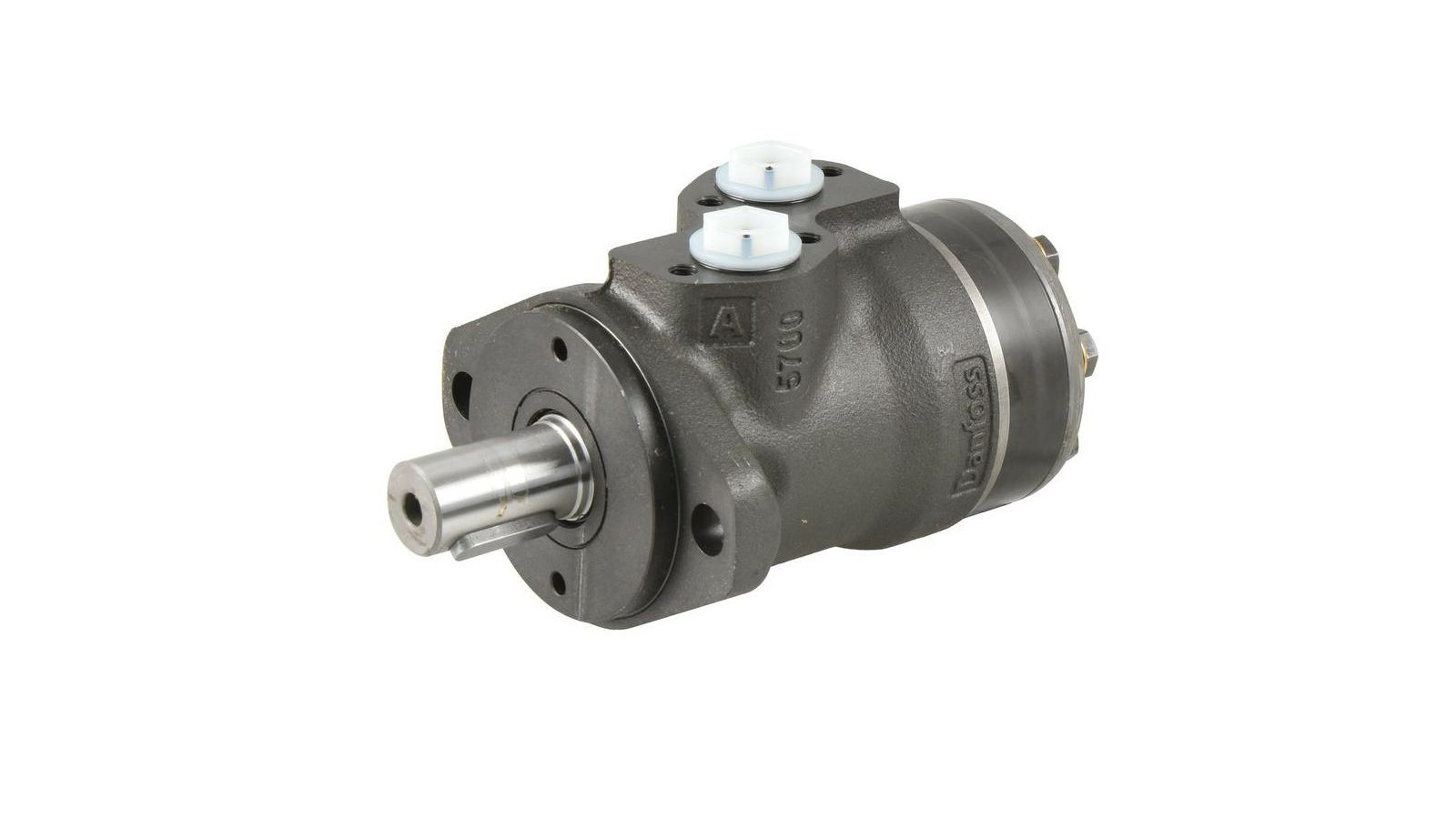

ORBITALNI MOTOR OMP200, 194,6cm3/r, OSOVINA 25mm, MAX 60L/min - DANFOSS

11186708
2001510615
OMP200
1510615
OMP2001510615
OMPX200
61100417500

----------

Assembly flange drive
2-hole oval (A2) M 12

Brand
White

Displacement (cm3/r)
194,6

Installation length (mm)
152,7

Leakage oil connection (inches)
G 1/4 internal thread

Material housing
cast steel

Max. oil flow (l/min)
60

Max. pressure (bar)
195

Max. revolution (rpm)
310

Max. torque (Nm)
400

Oil connection A (inches)
G 1/2 internal thread

Oil connection B (inches)
G 1/2 internal thread

Operating pressure (bar)
155

Optional equipment valve
check valve

Power (kW)
10,9

Specification drive
cylindrical shaft with feather key thread internal

Standard drive
DIN 6885

Weight (kg)
6,915

o shaft/hub (mm)
25
