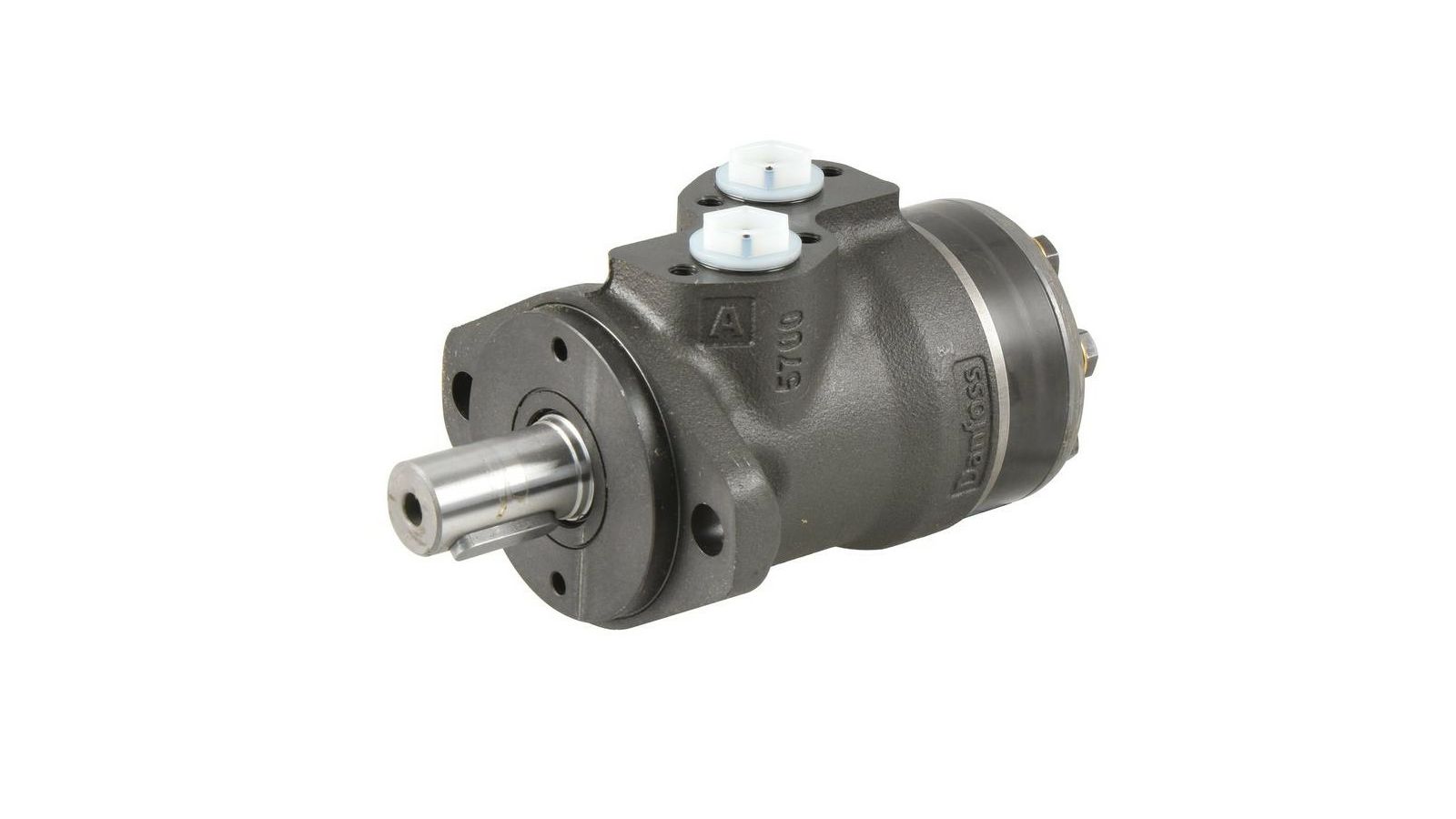

ORBITALNI MOTOR 25,0cm3/r, OSOVINA 25mm, MAX 40L/min - DANFOSS

11185769
1510640
OMP251510640
OMP25
OMPX25
61100426100

-----------

Assembly flange drive
2-hole oval (A2) M 12

Brand
White

Displacement (cm3/r)
25,0

Installation length (mm)
130,8

Leakage oil connection (inches)
G 1/4 internal thread

Material housing
cast steel

Max. oil flow (l/min)
40

Max. pressure (bar)
160

Max. revolution (rpm)
1600

Max. torque (Nm)
40

Oil connection A (inches)
G 1/2 internal thread

Oil connection B (inches)
G 1/2 internal thread

Operating pressure (bar)
115

Optional equipment valve
check valve

Power (kW)
5,4

Specification drive
cylindrical shaft with feather key thread internal

Standard drive
DIN 6885

Weight (kg)
6,083

o shaft/hub (mm)
25
