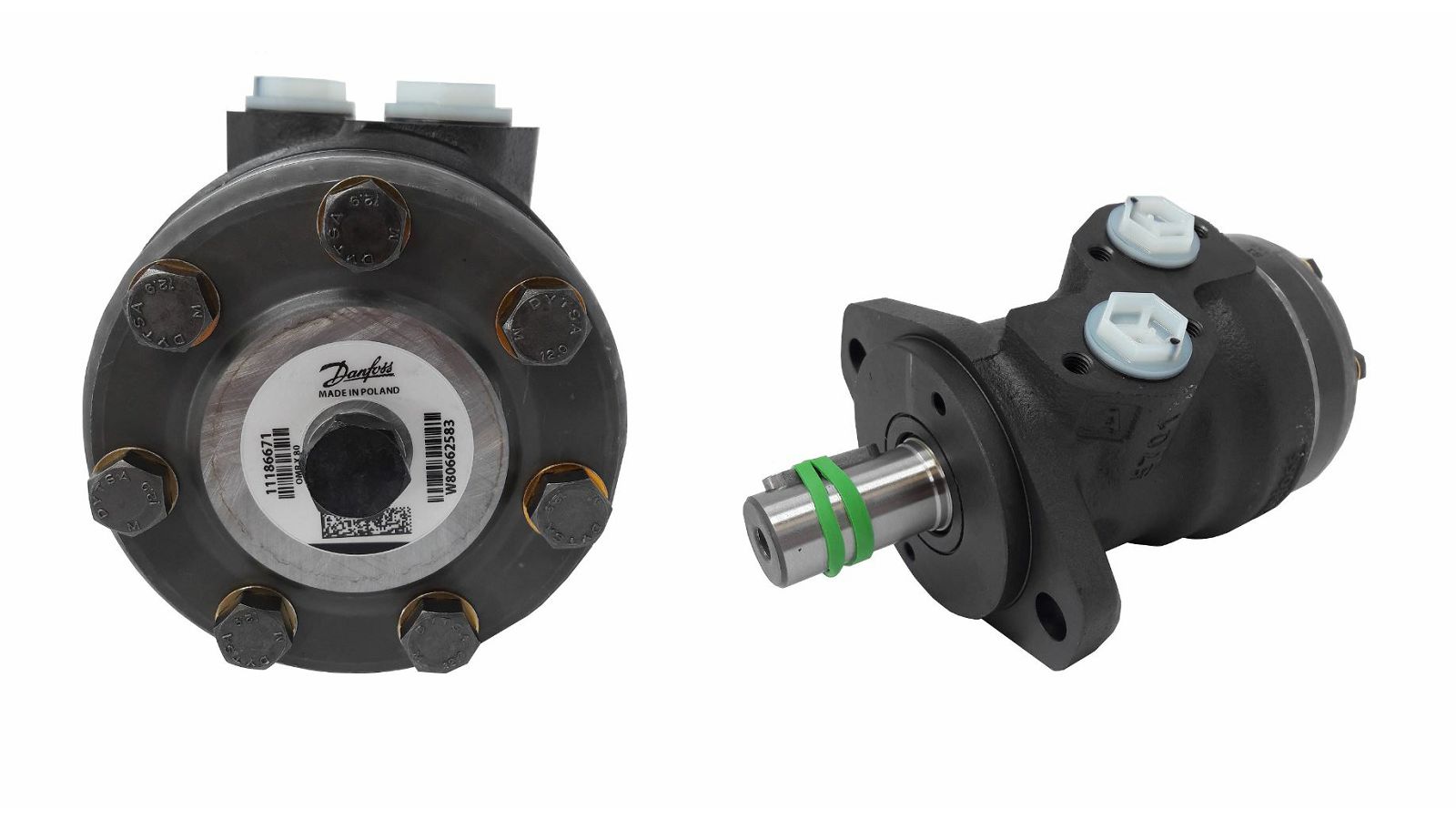

11186671
OMRX80
61100417100
Weight (kg)
7.502
Power (kW)
14
Brand
Danfoss
Operating pressure (bar)
200
Max. torque (Nm)
170
Max. revolution (rpm)
770
Max. pressure (bar)
225
Displacement (cm3/r)
80.3
o shaft/hub (mm)
25
Standard drive DIN
6885
Material housing
cast steel
Type
OMRX 80
Max. oil flow (l/min)
60
Specification drive
cylindrical shaft with feather key thread internal
Optional equipment valve
check valve
Oil connection A (inches)
1/2 internal thread
Oil connection B (inches)
1/2 internal thread
Leakage oil connection (inches)
1/4 internal thread
Assembly flange drive
2-hole oval (A2) M 12
