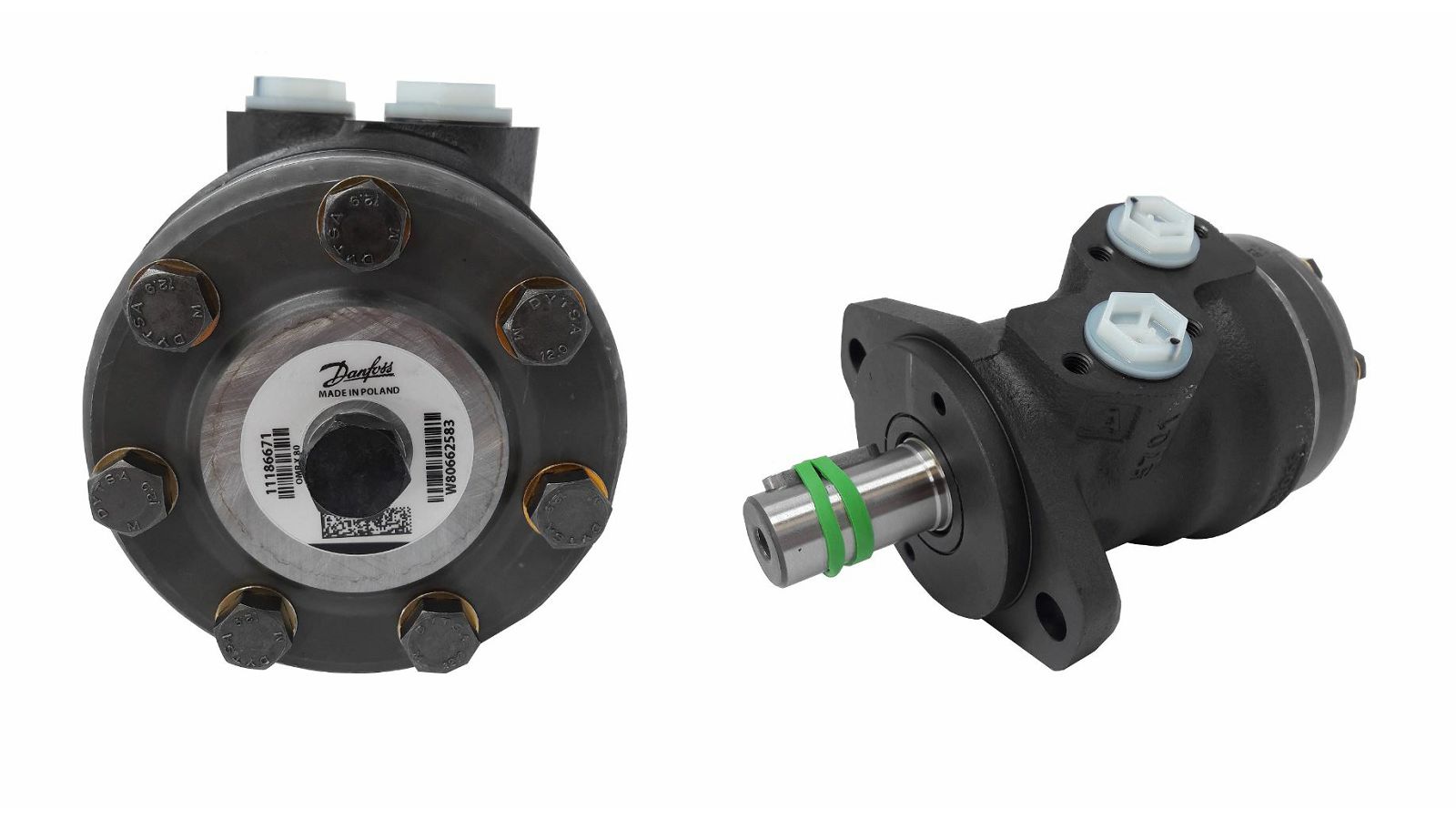

ORBITALNA PUMPA OMRX 80, 80,3cm3/r - DANFOSS

11186671
OMRX80
61100417100



Weight (kg)
7.502

Power (kW)
14

Brand
Danfoss

Operating pressure (bar)
200

Max. torque (Nm)
170

Max. revolution (rpm)
770

Max. pressure (bar)
225

Displacement (cm3/r)
80.3

o shaft/hub (mm)
25

Standard drive DIN
6885

Material housing
cast steel

Type
OMRX 80

Max. oil flow (l/min)
60

Specification drive
cylindrical shaft with feather key thread internal

Optional equipment valve
check valve

Oil connection A (inches)
1/2 internal thread

Oil connection B (inches)
1/2 internal thread

Leakage oil connection (inches)
1/4 internal thread

Assembly flange drive
2-hole oval (A2) M 12
