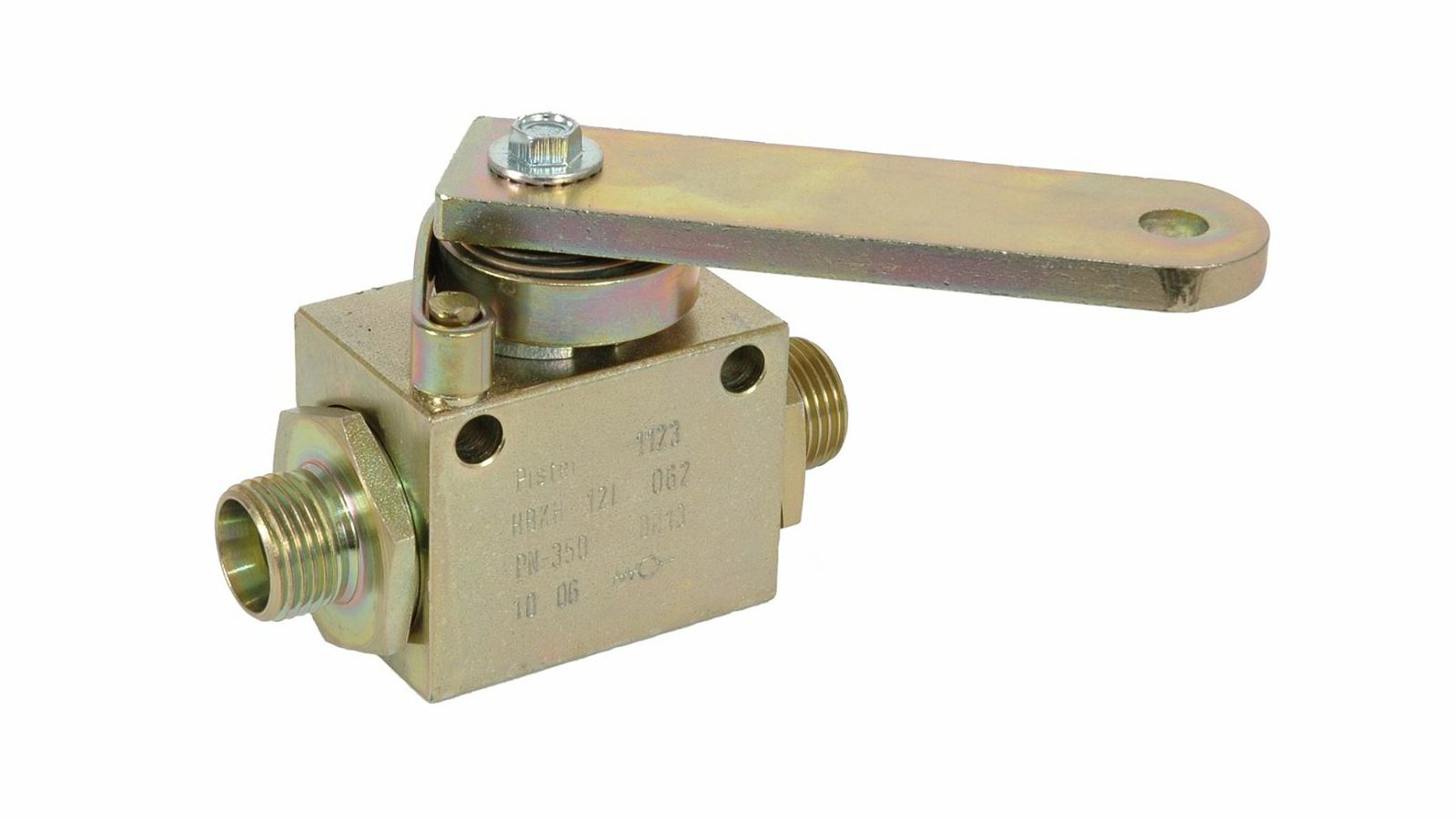

OGRANIČAVAJUĆI VENTIL M18X1,5, MAX250Bar

HBKH12L1311231B
HBKH-12L
61100076700

---------

Width (mm)
36

Height (mm)
40

Length (mm)
84

Material
steel

Thread external A metric
M 18x1,5

Thread external B metric
M 18x1,5

Nominal diameter (mm)
13

Max. flow rate (l/min)
40

Shifting travel
zero position open

Mounting bore (mm)
6,5

Surface
galvanized

Tube AD series
12 L

Weight (kg)
0,66

Brand
Pister

Max. operating pressure (bar)
250
