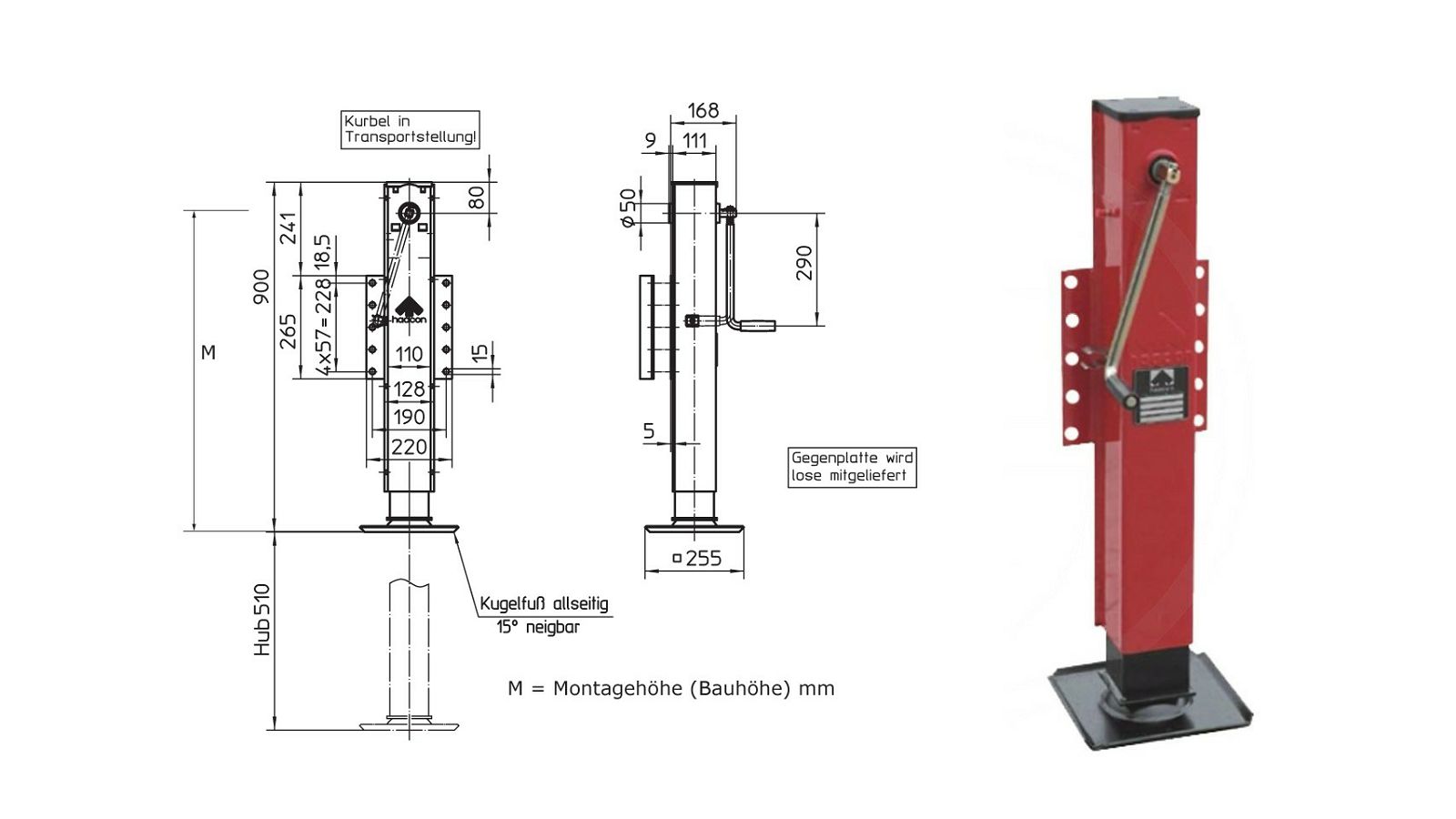

NOGAR Typ S/DK900 FORM K, L=D, MIN-900mm, MAX-1410mm - HAACON

230320
S/DKoG900
Typ S/DK900
S/DK900-230320
53100005600

------------

Brand
Haacon

Construction form foot
Haacon Form K

Hoisting capacity per unit (t)
2

Including gears
yes

Installation location left/right
left
right

Max. height (mm)
1410

Min. height (mm)
900

Mounting
rigid

Mounting height (mm)
820

Production series
S/DKoG900

Ref. no.
Haacon 230320

Setting range (mm)
4x57

Stroke (mm)
510

Support load per unit (t)
25

Version screw plate
screw plate center

Weight (kg)
39
