NOGAR HAACON typ. 8248.2 - SAF, L-600mm, L=D - HAACON

HAA230321
GOS-07
207916I
7020791600
GOS07
S/DS615
SDS615
S/DS615230321
CARGOPARTS

------------

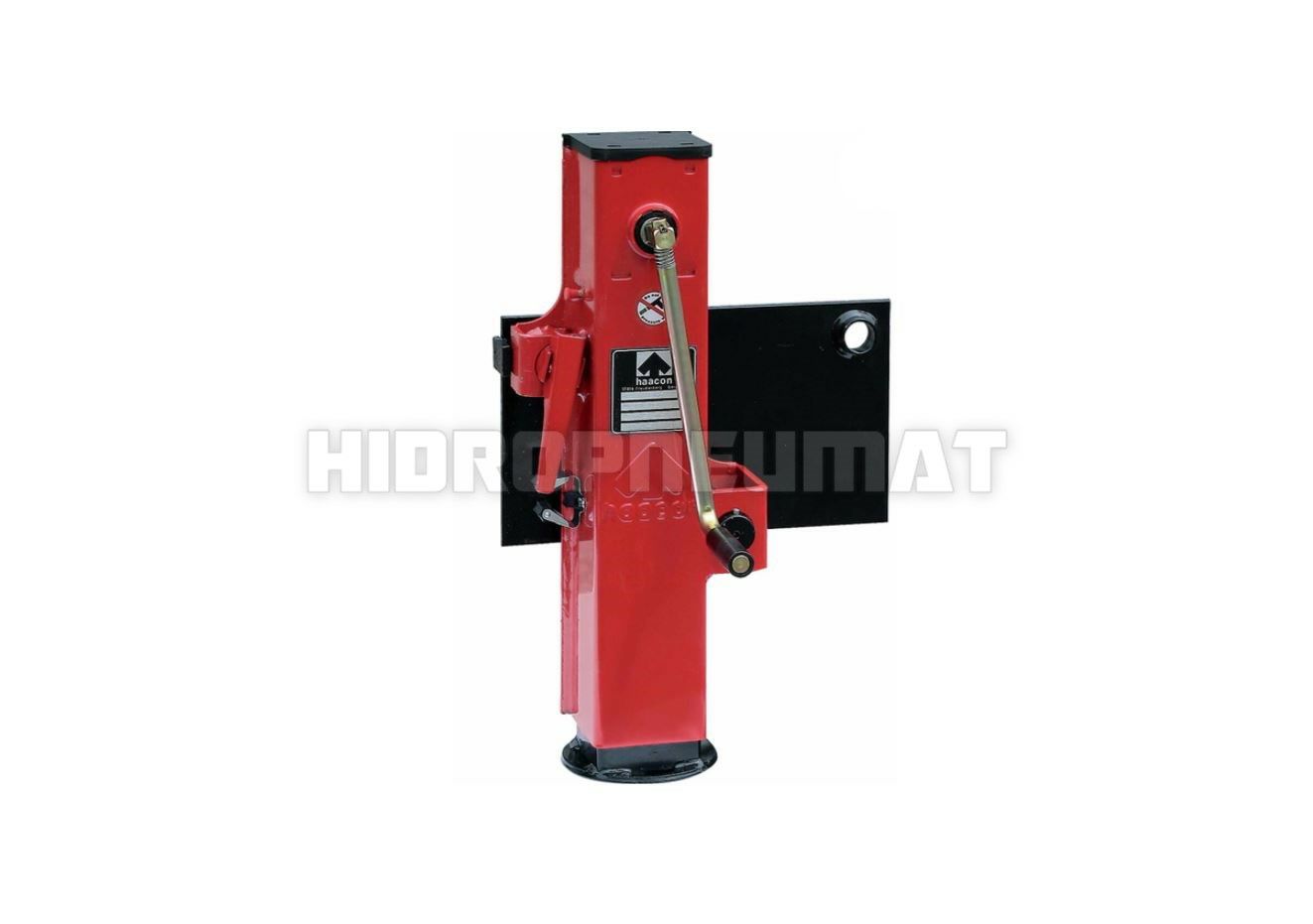

spindle support for attachment on the drawbar of tandem trailers, optimal ground clearance thanks to swivel mechanism and locking device

Brand
Haacon

Construction form foot
base plate o 150 mm

Including gears
yes

Info 1
with fixed crank and crank safety device

Installation location left/right
left/right

Max. height (mm)
915

Min. height (mm)
615

Mounting
swiveling

Production series
S/DS 615

Ref. no.
Haacon 230 321

Setting range (mm)
none

Stroke (mm)
300

Support load per unit (t)
7

Usage vehicle
tandem trailer

Version screw plate
screw plate center

Weight (kg)
35
