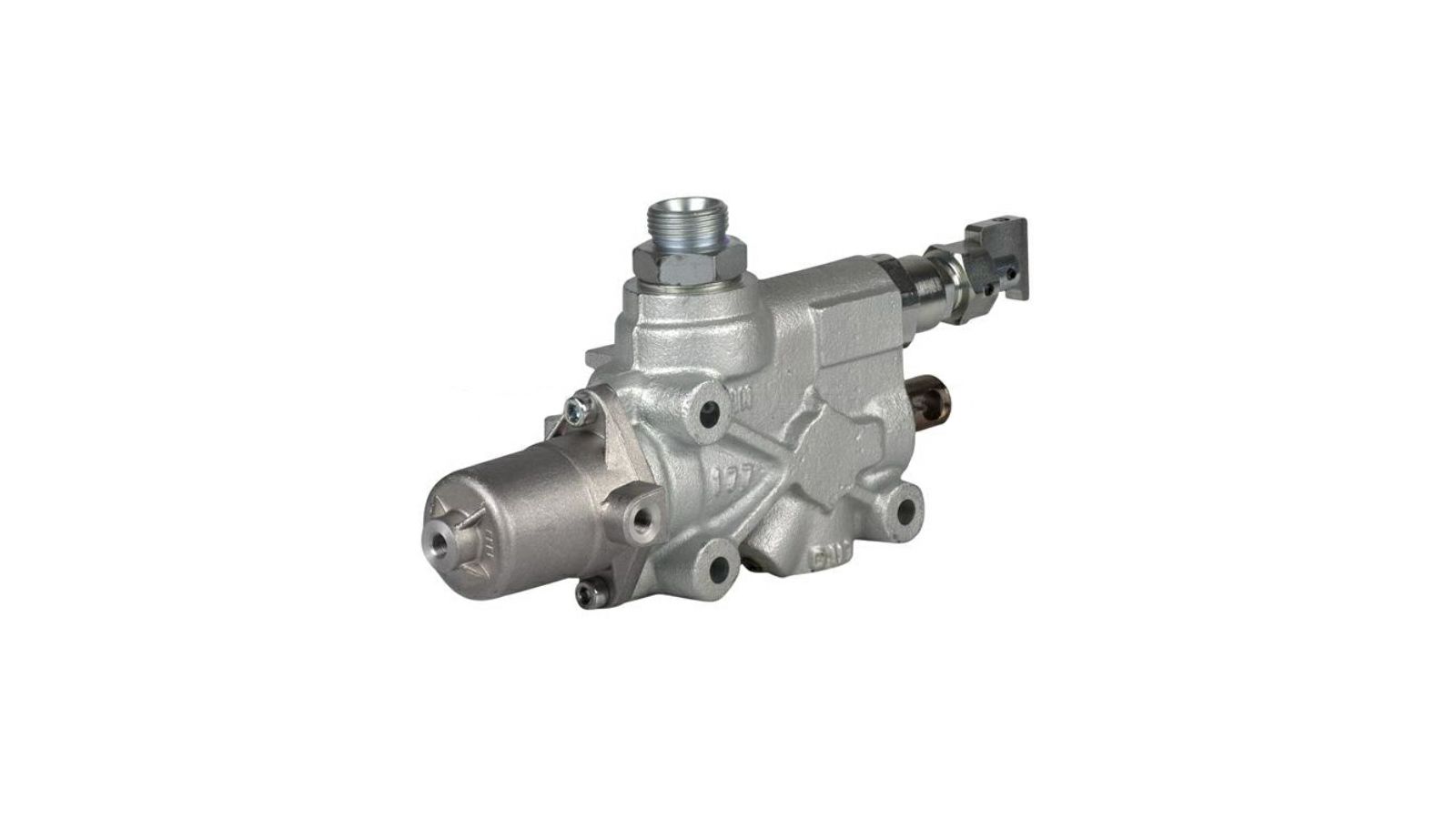

NAGIBNI VENTIL MODULAR 250 CE 2PM, DAF - OMFB

12100700202
1527719 DAF

------------

3-position pneumatic tipping valve
Designed for heavy-duty tipper bodies and semi-trailers
Proportional lowering
Pressure capacity up to 400 bar


Flow : 250 lt/min

P.R.V. Factory setting : 140 bar (1st pressure)
230 bar (2st pressure)

P.R.V. Max setting : 330 bar (1st pressure)
410 bar (2st pressure)

IN : G 1
Tank : G 1
OUT : G 1
Pneumatic connection : 1/8” fitting, pipe 6mm
