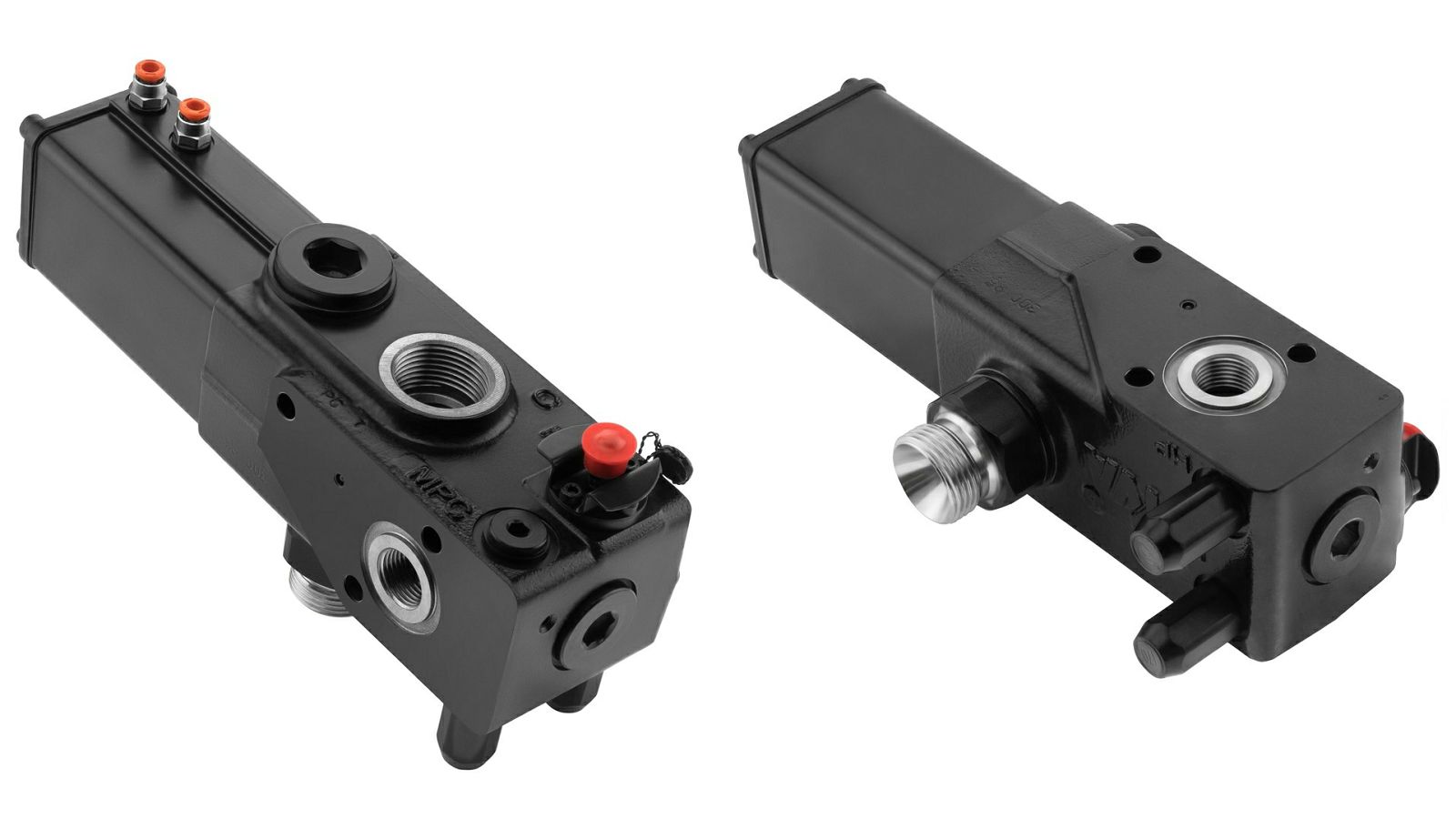

NAGIBNI VENTIL 220L/min, max 350Bar - HYVA

14767155
HT-TNK-2220-150-250-P1
61100022600

----------

Actuation
pneumatic

Brand
Hyva

Connection consumer
G 1 inch internal thread

Connection control line
G 1/8 inch internal thread with push-in 6x1

Connection pressure input
G 1 inch internal thread

Flow lowering operation (l/min)
220

Flow rate tilting operation (l/min)
220

Material
cast steel

Max. operating pressure (bar)
350

Set pressure (bar)
150/250

Surface
painted

Test connection
G 1/4 inch internal thread

Type
HT-TNK-2220-150-250-P1

Weight (kg)
6,625
