MANOMETAR 0-600Bar, G 1/4, DIGITALNI - PARKER

SCJN-600-01
SCJN60001
62300215500


The digital pressure gauge allows measuring, displaying and storing pressures in one device. It features an extremely robust type of construction in a metal housing and simple operation. Multiple mechanical manometers are often required for accurate measurements over a wide pressure range.
Due to the high accuracy, resolution and long-term stability as well as the 4 1/2 digit display, this task can be done with only one device.

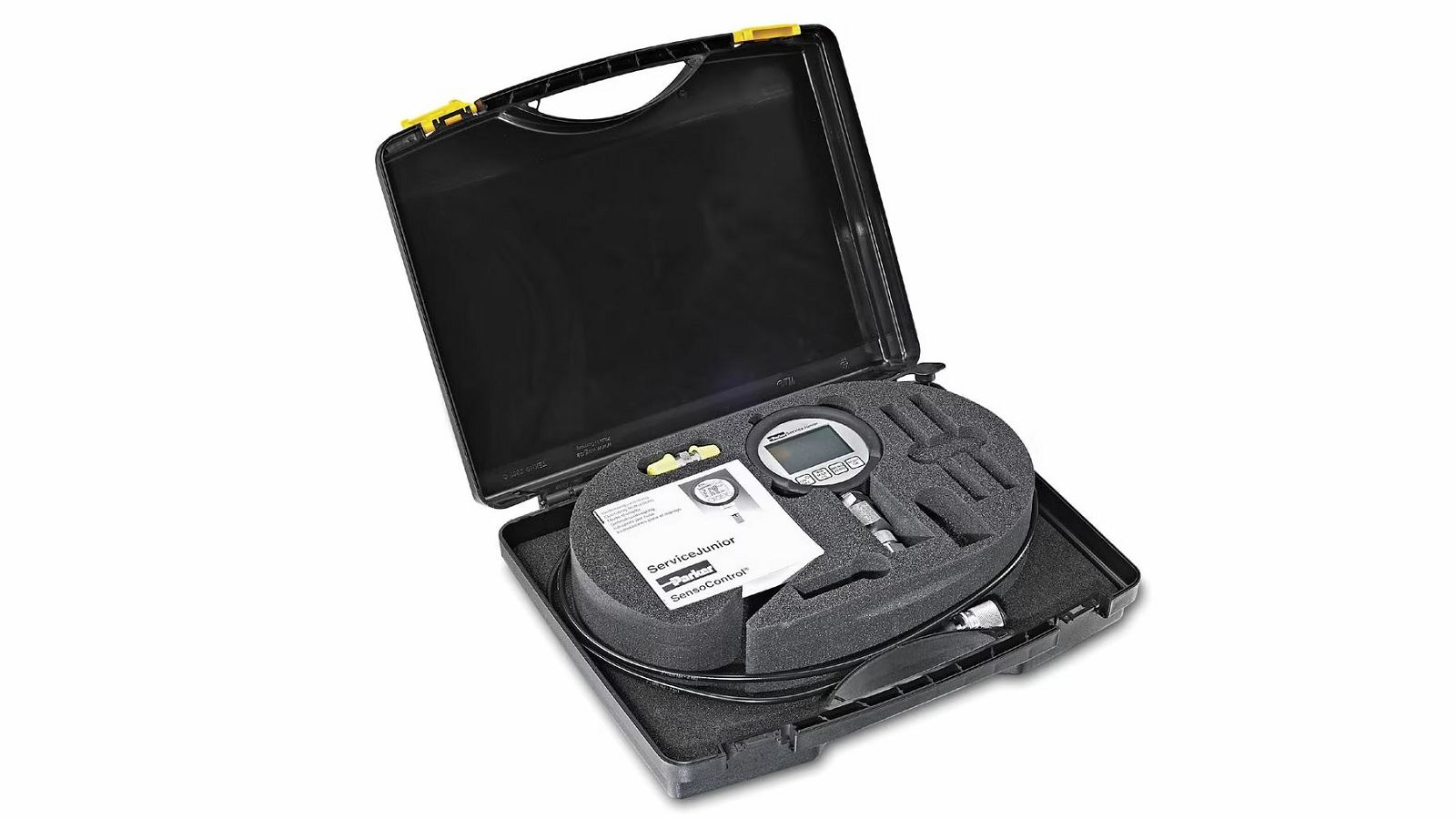

Pressure peaks are reliably detected with a sampling rate of 10 ms. with the help of the MIN/MAX function, the minimum and maximum pressure is automatically stored and can be recalled at the touch of a button{b}scope of delivery:{/b} digital pressure gauge (LCD text display with measured value and min/max display) with rubber protection cover, adapter 1/4 inch inside - M16x2 inside and power supply 2x 1.5 V AA batteries



Info 1
sa zaštitnom kapicom (guma)

FI mjernog instrumenta (mm)
79

Min.mjerno područje (barovi)
0

Mjerni raspon do (bar)
600

Podjela ljestvice (bar)
0,1

Tekućina za prigušivanje
bez

Točnost
0,5 % FS ± 1 znamenka

Težina (kg)
0,26

marka
Parker

Priključni navoj (inči)
G 1/4 vanjski navoj

Materijal kućišta
lijevani cink

Verzija
digitalni

Koristiti
hidraulika
