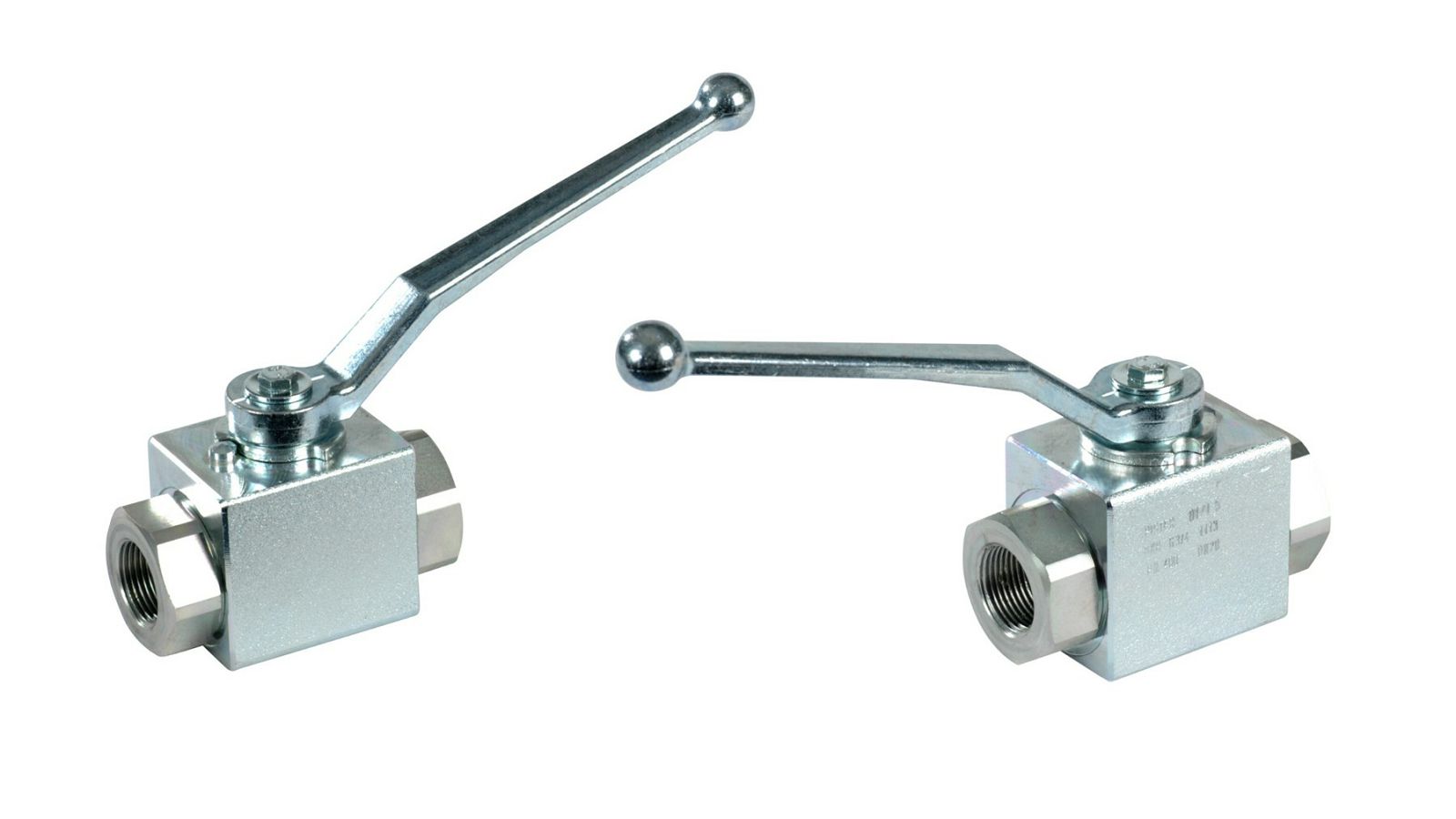

KUGLASTI VENTIL VISOKOG PRITISKA, ŽENSKA, G 3/4 - PISTER

BKH-3/4
BKH G3/4 20 1113 1
3/4 BSP BKH G3/4 20 1113 1
BKHG3/42011131
62300054300

------------

In the unsupported ball valves, the ball floats between the ball seals.
Absolute tightness is ensured in vacuum, at low pressure as well as at high pressure due to the inherently elastic preload of the ball seals.
These ball valves are specially constructed and designed for hydraulics.
They are characterized by freedom from maintenance and durability.
Applications up to 200 °C and 500 bar operating pressure are possible at any time.
The impact-resistant and high-quality aluminum handle ensures good operation.


Ball bore form
channel

Brand
Pister

Length (mm)
96

Material
steel

Max. operating pressure (bar)
400

Mounting bore (mm)
without

Nominal diameter (mm)
20

Surface
galvanized

Thread internal A (inches)
G 3/4

Thread internal B (inches)
G 3/4

Weight (kg)
1,52

Width across flats line connection (mm)
41

Width across flats square (mm)
14
