HPBYB8M8FHP
------------
Product Type: Ball Valve
Body Material: 316 Stainless Steel
Inlet Connection Size: 1/2 Inch
Connection 1 Type: Male NPT
Outlet Connection Size: 1/2 Inch
Connection 2 Type: Female NPT
Bore Diameter: 10 MM
Seat Material: PTFE
Packing Material: PTFE
Maximum Operating Pressure: 689 BAR
Specifications Met: N/A
Options: N/A
Additional Options: N/A
ANSI Flange Class: 4500
------------
Item Information

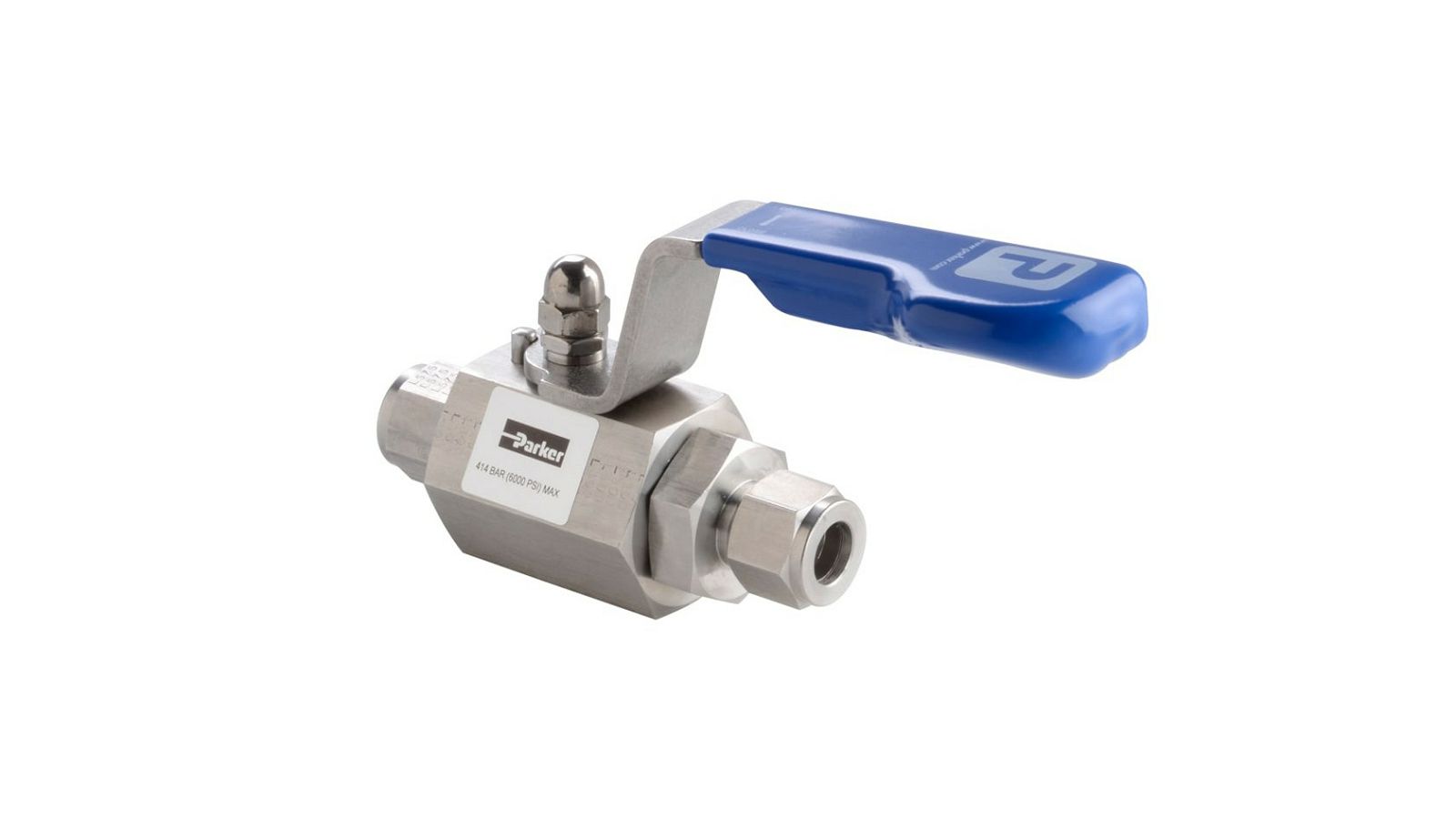

Parker's high performance two piece bi-directional instrumentation Hi-Pro ball valves offer the user full cold working pressure ratings up to 10,000 PSI (689 Bar), giving 100% bubble tight shut off and continuous repeatable performance.
The instrumentation ball valves are suitable for the most demanding applications and meet the requirements of ANSI B31.1 for use in power plants. By offering a true two piece design, body leakage paths are reduced to a minimum.
With the added opportunity to select integral compression ends the user can eliminate the use of taper threads and thread sealant.
This avoids system contamination, reduces leakage paths, installation costs, weight and space. Parker’s low fugitive emission Hi-Pro ball valve is tested and certified to ISO 15848-1.
Industries:
• Oil & Gas
• Chemical Processing
• Trucks & Buses
• Semiconductor
• Industrial Gas
• Power Generation & Renewable Energy
Features/Benefits:
• Two piece body design - minimal leakage paths
• 4:1 Pressure boundary designed safety factor
• Bubble tight shutoff
• Floating ball principal with dynamic response seats featuring inherent self relief
• Anti blowout stem
• Low torque operation
• PTFE Packing with PEEK Seats
• Full hydrostatic and low pressure air tested
• Connector thread environmentally sealed
• Anti static
• Certified to ISO 15848-1 Class A, B and C
Applications
• Instrumentation Hook-up Systems
• Analytical Installations
• Hydrogen Service
• Offshore Control Panels
• Sensing Lines
