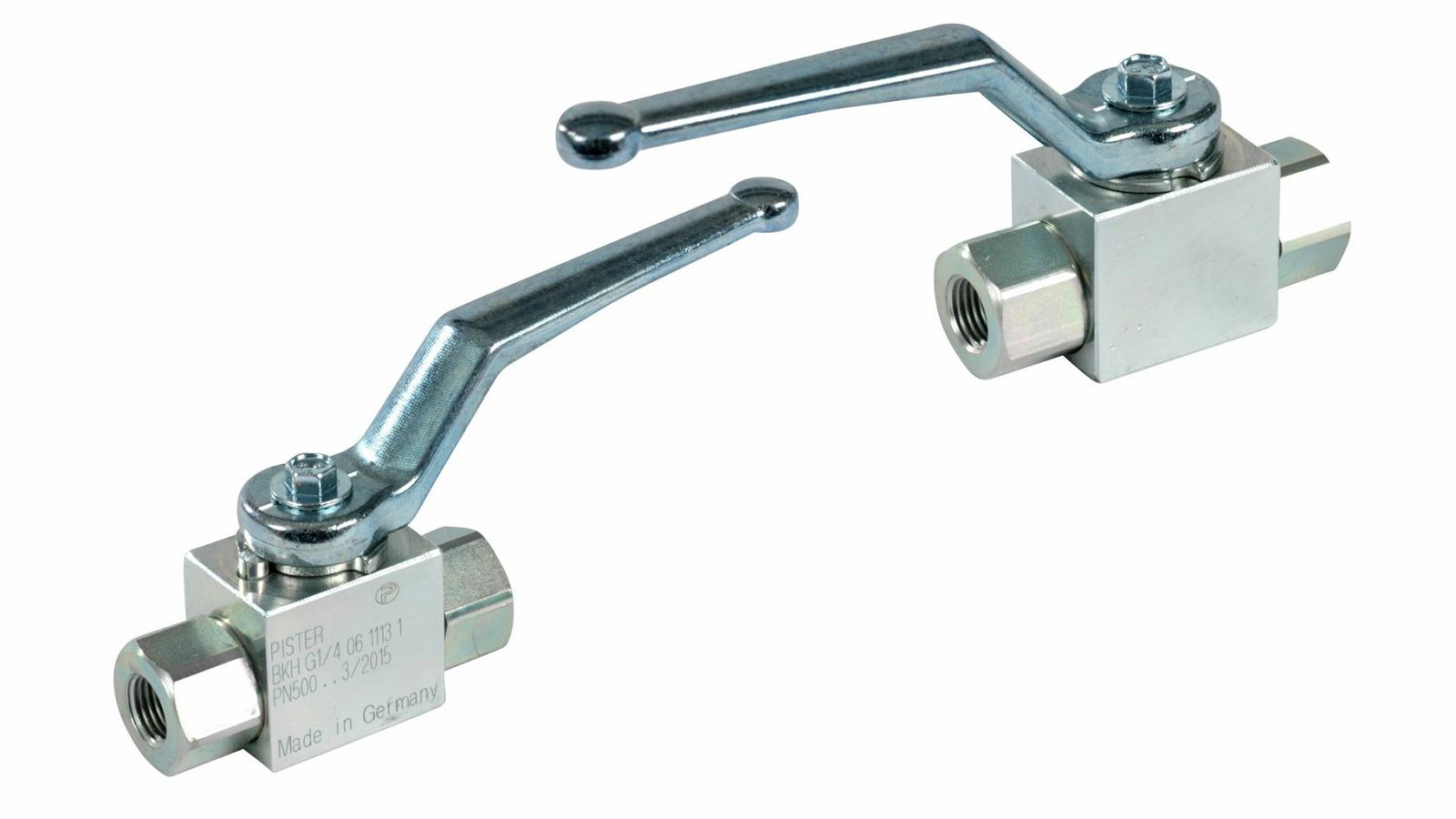

KUGLASTI 2/2 WAY VENTIL, G1/4, MAX 500Bar, ŽENSKI - PISTER

BKHG1/40611131
BKHG140611131
BKH-1/4
BKH G1/4 06 1113 1
1/4 BSP BKH G1/4 06 1113 1
62300054000

-----------

Length (mm)
69

Thread internal B (inches)
G 1/4

Nominal diameter (mm)
6

Surface
galvanized

Type
2/2-way

Ball bore form
channel

Mounting bore (mm)
without

Width across flats square (mm)
9

Width across flats line connection (mm)
22

Material
steel

Weight (kg)
0,36

Brand
Pister

Max. operating pressure (bar)
500

Thread internal A (inches)
G 1/4
