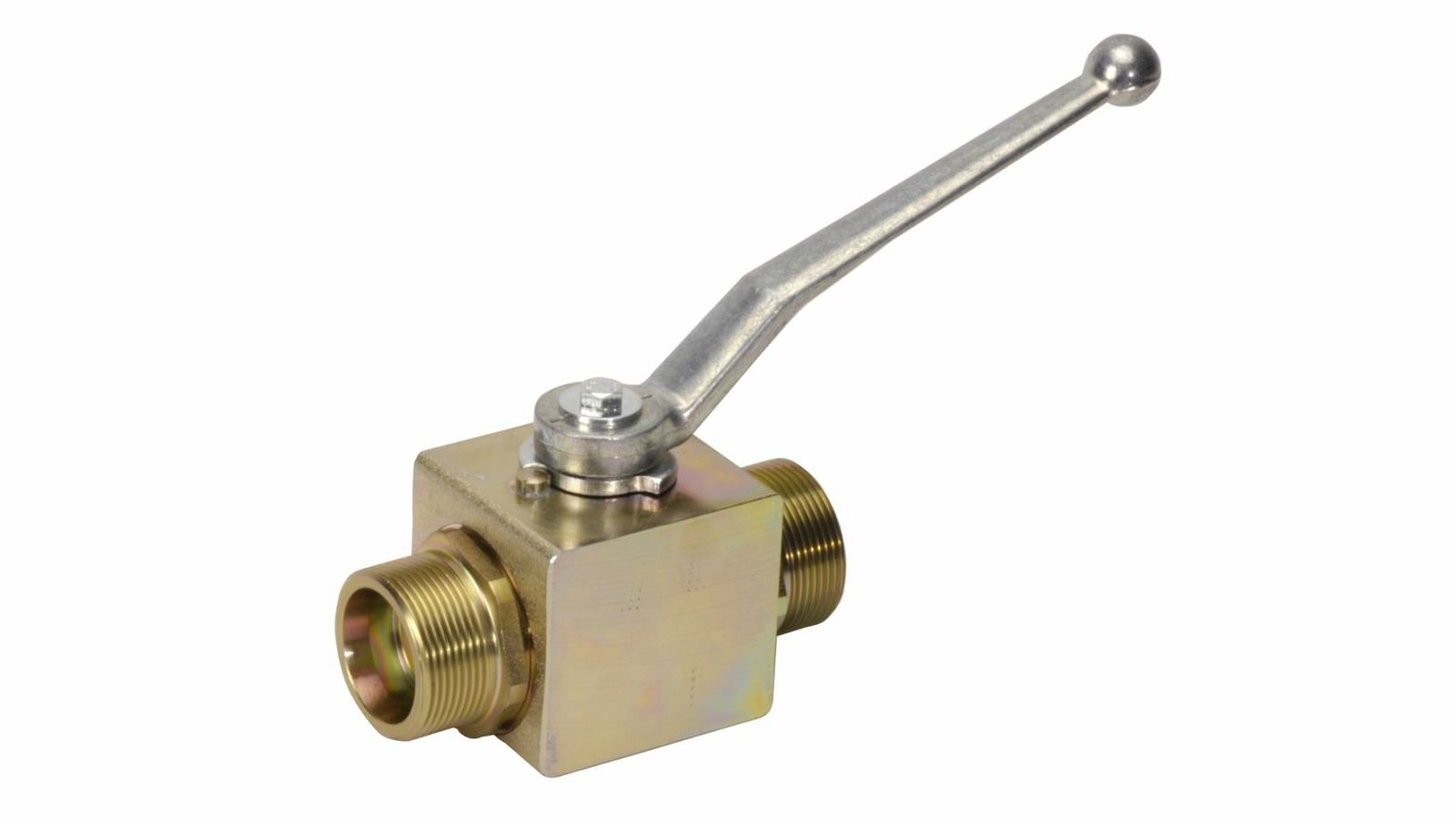

KUGLASTI 2/2 WAY VENTIL, 30S, M42x2,0/FI-30 - PISTER

BKH30S2511131
BKH-30S
BKH 30S 25 1113 1
62300011600

-----------

Thread external A metric
M 42x2

Thread external B metric
M 42x2

Ball bore form
channel

Mounting bore (mm)
without

Width across flats square (mm)
14

Width across flats line connection (mm)
46

Type
2/2-way

Production series
heavy

Weight (kg)
2,2

Surface
galvanized

For FI tube A (mm)
30

For FI tube B (mm)
30

Tube AD series
30 S

Material
steel

Brand
Pister

Max. operating pressure (bar)
350

Length (mm)
49,5

Nominal diameter (mm)
25
