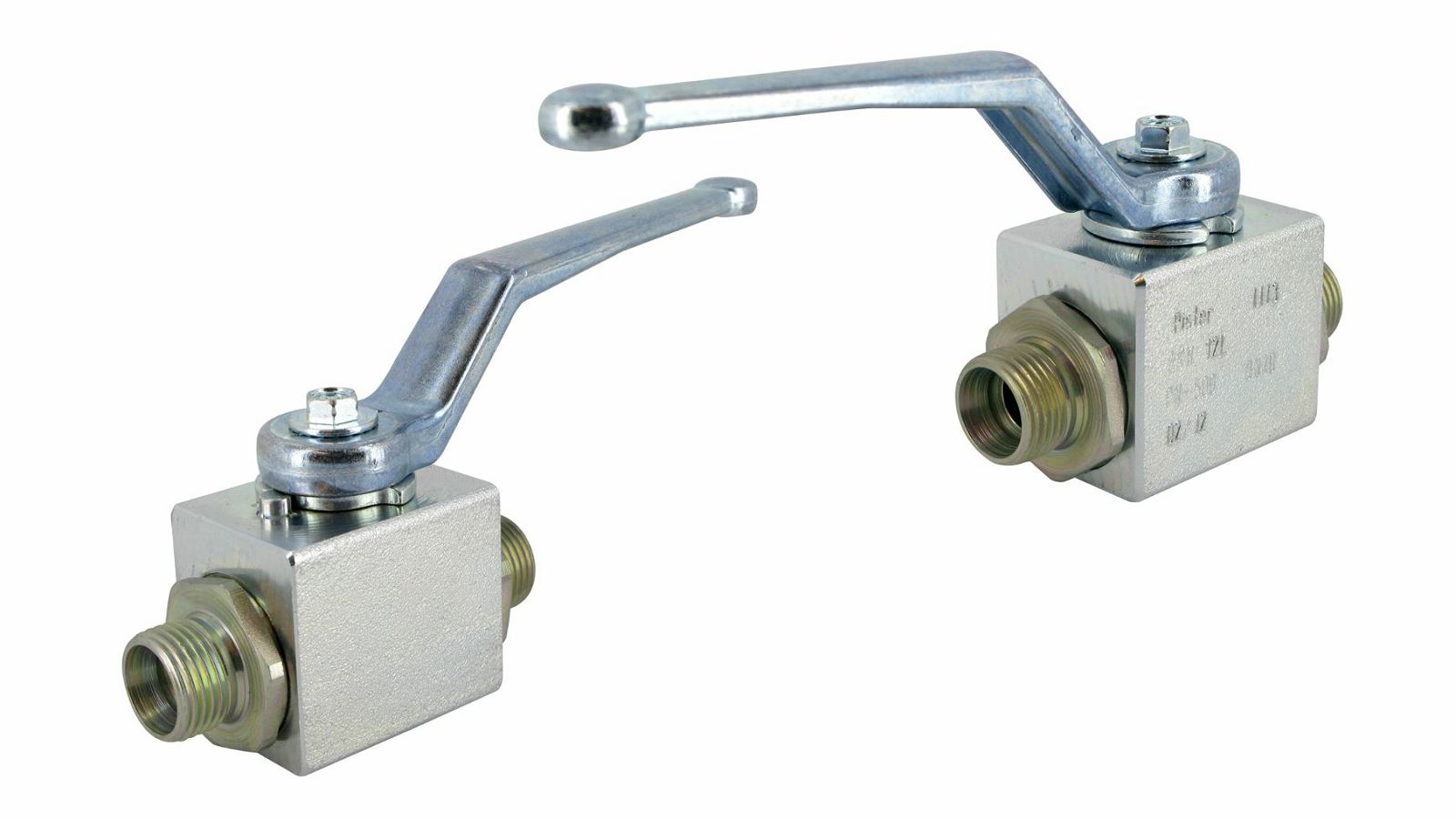

BKH10L0811131
BKH-10L
BKH10L
BKH 10l 08 1113 1
M16x1,5/o10 BKH 10l 08 1113 1
62300010400
---------
Length (mm)
30,5
Thread external A metric
M 16x1,5
Thread external B metric
M 16x1,5
Nominal diameter (mm)
8
Production series
light
For FI tube A (mm)
10
For FI tube B (mm)
10
Surface
galvanized
Type
2/2-way
Ball bore form
channel
Mounting bore (mm)
without
Width across flats square (mm)
9
Width across flats line connection (mm)
22
Material
steel
Tube AD series
10 L
Weight (kg)
0,32
Brand
Pister
Max. operating pressure (bar)
500
