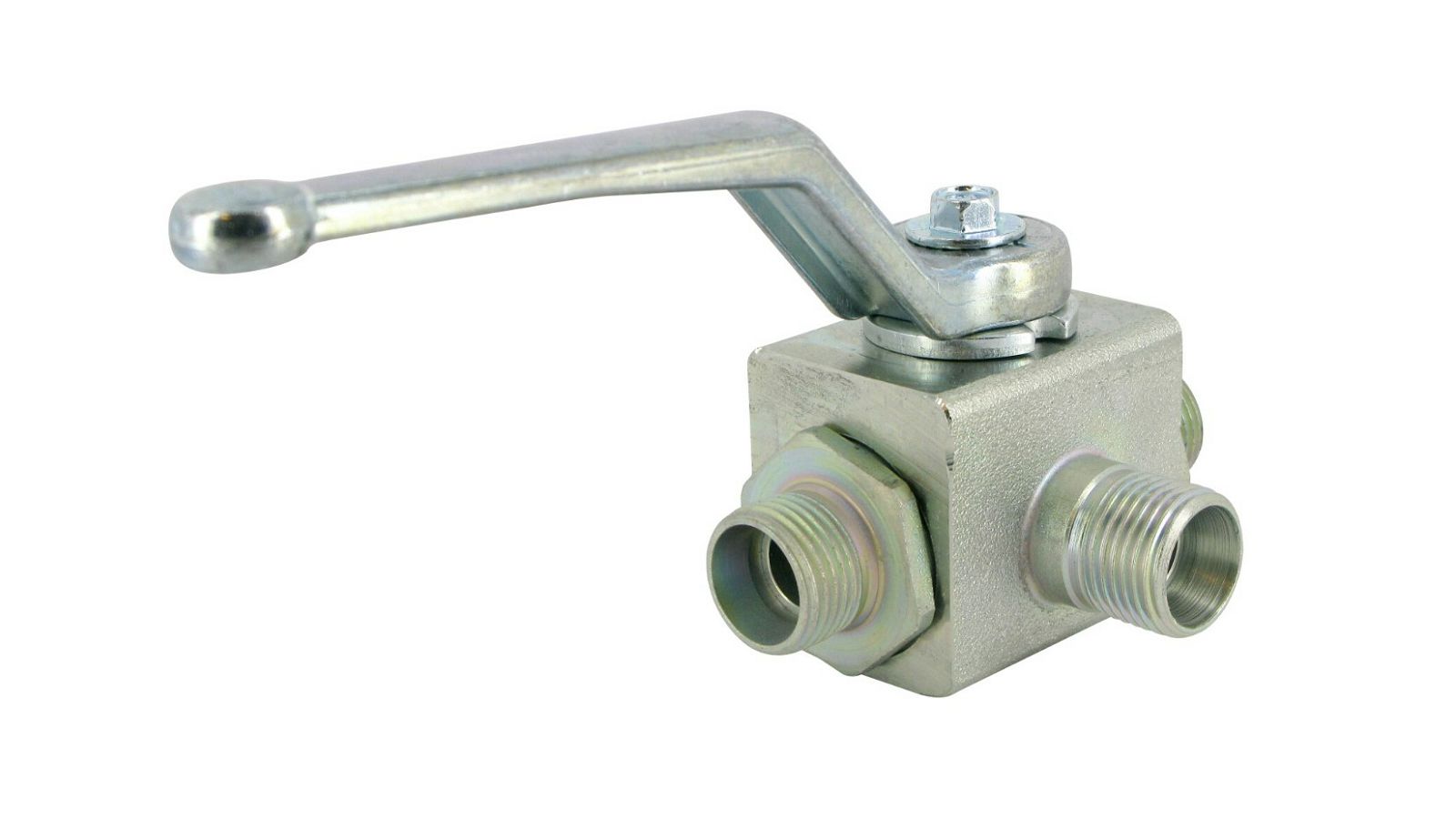

KUGLASTA SPOJKA VISOKOG PRITISKA 15L, M22x1,5 - PISTER

BK3 15L 13 1123 1
BK315L1311231
BK315L
62300026000

-----------

In the unsupported ball valves, the ball floats between the ball seals.
Absolute tightness is ensured in vacuum, at low pressure as well as at high pressure due to the inherently elastic preload of the ball seals.
These ball valves are specially constructed and designed for hydraulics.
They are characterized by freedom from maintenance and durability.
Applications up to 200 °C and 500 bar operating pressure are possible at any time.
The impact-resistant and high-quality aluminum handle ensures good operation.



Ball bore form
L

Brand
Pister

For o tube A (mm)
15

For o tube B (mm)
15

For o tube C (mm)
15

Length (mm)
84

Material
steel

Max. operating pressure (bar)
350

Mounting bore (mm)
without

Nominal diameter (mm)
13

Production series
light

Shifting travel
negative overlap

Surface
galvanized

Thread external A metric
M 22x1,5

Thread external B metric
M 22x1,5

Thread external C metric
M 22x1,5

Tube AD series
15 L

Weight (kg)
0,8

Width across flats line connection (mm)
30

Width across flats square (mm)
9
