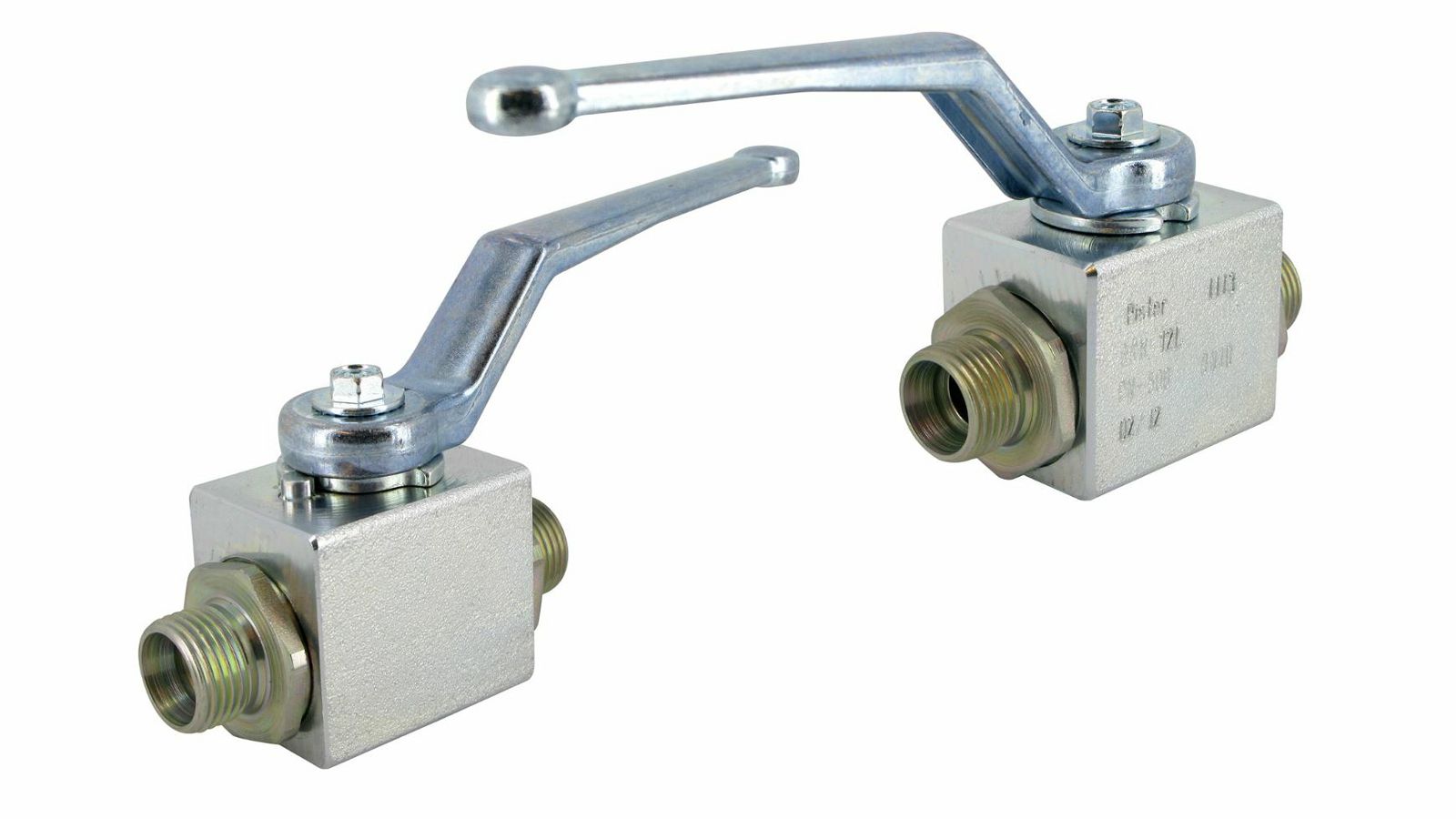

KUGLASTA SLAVINA 2/2 WAY VENTIL, 12L, VISOKI PRITISAK, M18x1,5/FI12

BKH12L1011131
BKH12l1011131
BKH 12l 10 1113 1
BKH-12L
M18x1,5/o12 BKH 12l 10 1113 1
62300010500

---------

Length (mm)
33

Thread external A metric
M 18x1,5

Thread external B metric
M 18x1,5

Nominal diameter (mm)
10

Production series
light

For FI tube A (mm)
12

For FI tube B (mm)
12

Surface
galvanized

Type
2/2-way

Ball bore form
channel

Mounting bore (mm)
without

Width across flats square (mm)
9

Width across flats line connection (mm)
22

Material
steel

Tube AD series
12 L

Weight (kg)
0,5

Brand
Pister

Max. operating pressure (bar)
500
