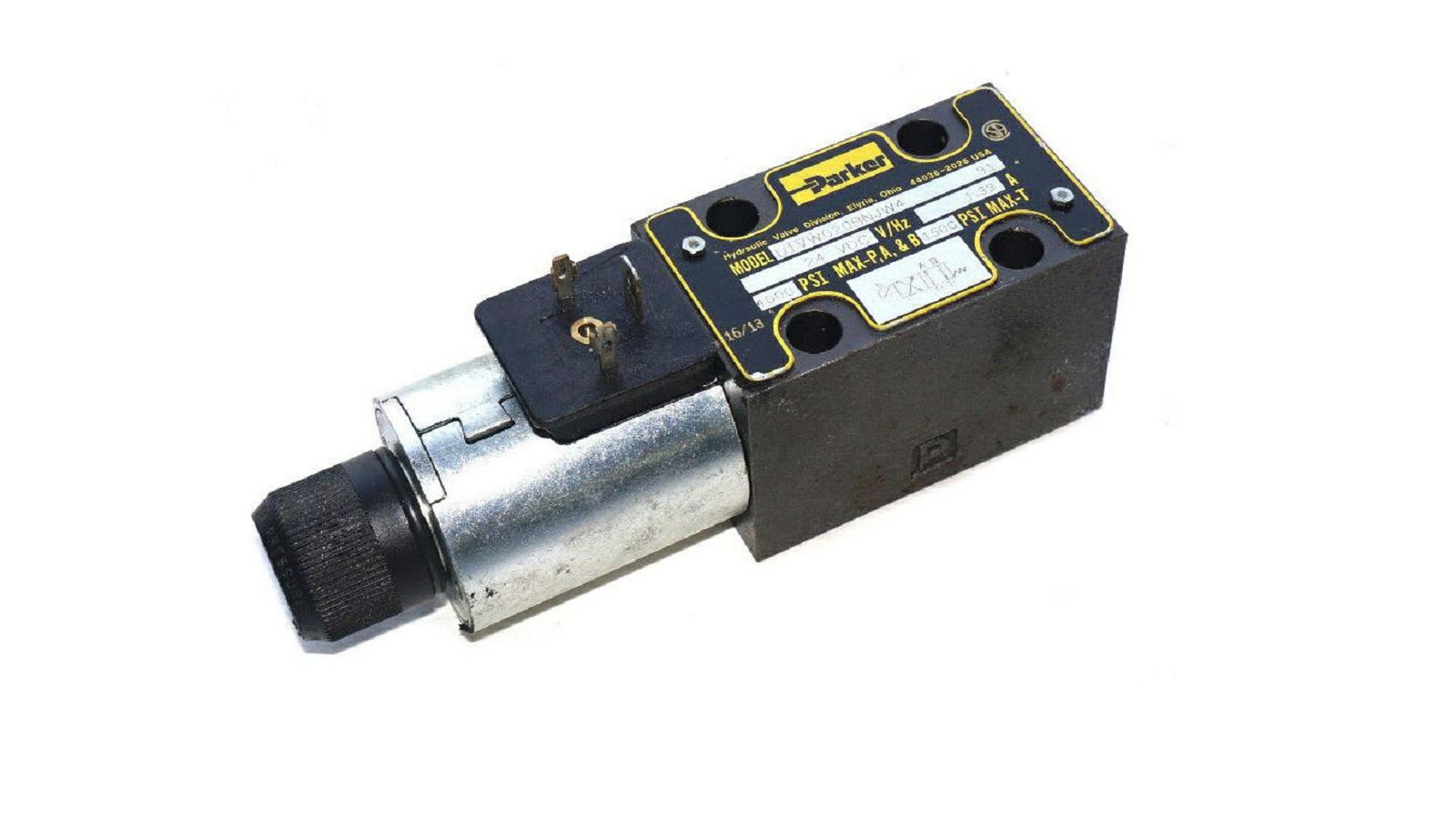

KONTROLNI VENTIL CETOP 3 - PARKER

D1VW020BNJW
61100344000


Width (mm)
46

Weight (kg)
1,705

Height (mm)
93

Length (mm)
162

Power (W)
30

Brand
Parker

Voltage (V)
24

Max. flow rate (l/min)
80

Material
steel

Degree of protection
IP 65

Standard ISO
4401

Including magnetic coil
yes

Max. operating pressure (bar)
350

Electrical connection
DIN 43650 Form A

Electrical connection
EN 175301 - 803 mold A

Max. operating pressure return flow (bar)
210

Status zero position
P after A open B after T open

Switch function
4/2-way

Nominal size
6

Type
03
