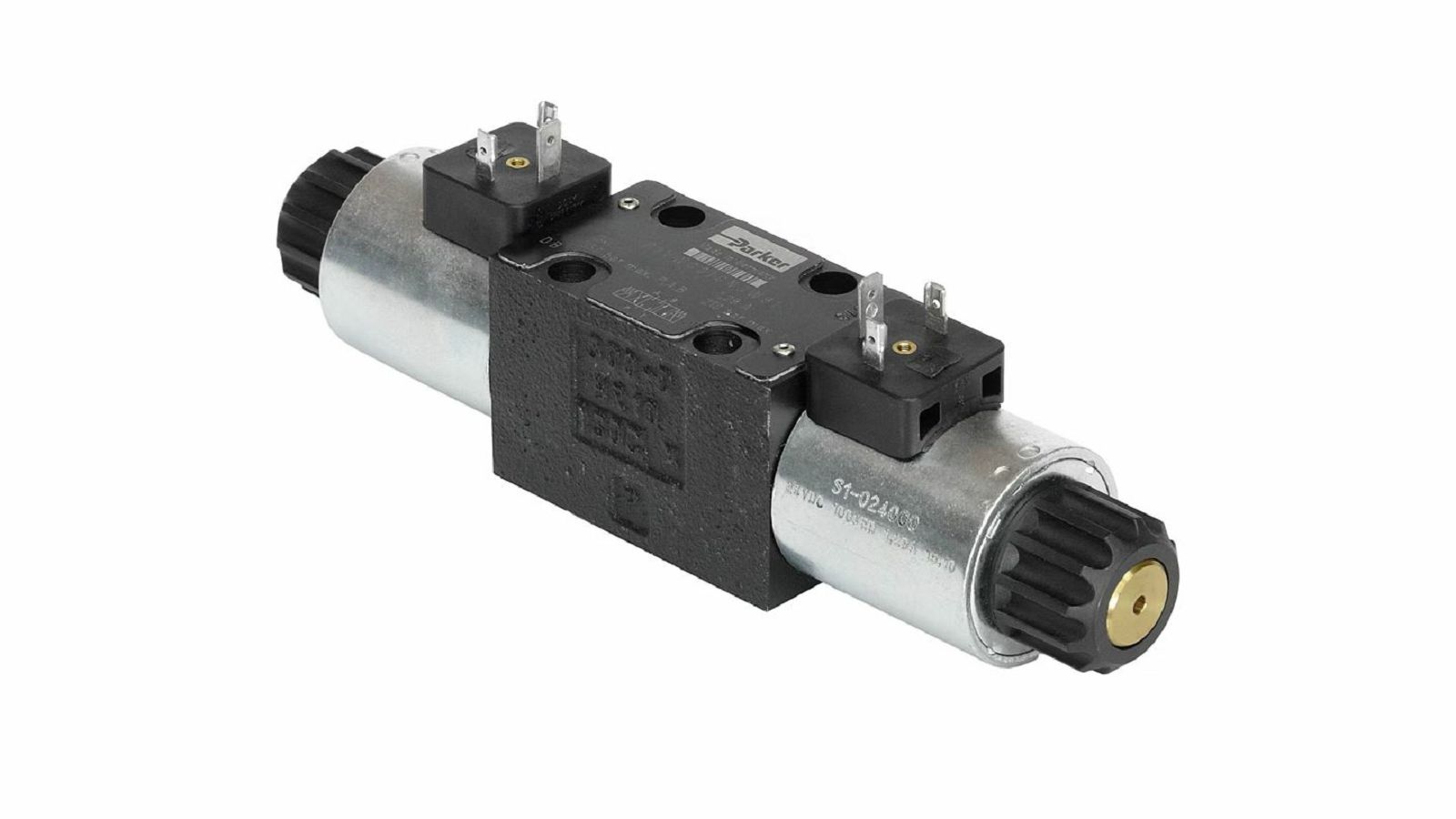

KONNROLNI VENTIL CETOP, D1VW - PARKER

D1VW001CNKW
61100123300


Width (mm)
46

Weight (kg)
2,241

Height (mm)
69

Length (mm)
226

Power (W)
30

Brand
Parker

Voltage (V)
12

Max. flow rate (l/min)
80

Material
steel

Degree of protection
IP 65

Standard ISO
4401

Surface
nitrided

Including magnetic coil
yes

Max. operating pressure (bar)
350

Electrical connection
DIN 43650 Form A

Electrical connection
EN 175301 - 803 mold A

Max. operating pressure return flow (bar)
210

Status zero position
P T A B closed

Switch function
4/3-way

Nominal size
6

Type
D1VW
