ILLZRF11G2010
HFFHFLE11B06WNCD
61100443400
------------

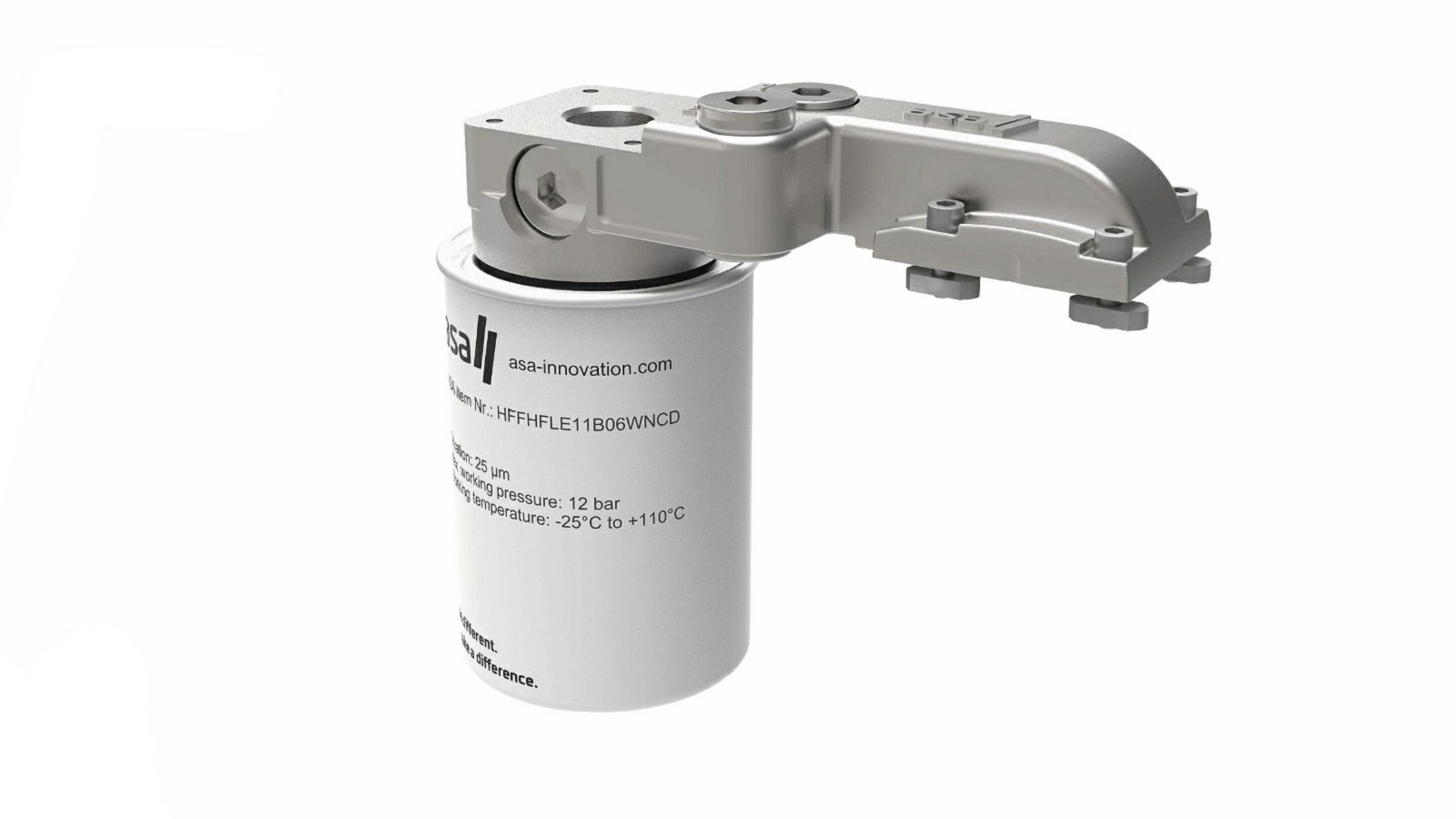

The spin-on hydraulic filter attachment kit is a compact and cost-effective filter connection directly to the cooler.
The standard 2 bar bypass protects the filter element from overload.
Optionally, both an optical and an electrical contamination indicator can be integrated on the connector.
Another G 1 inch on the rail connection gives the possibility for the use of a temperature sensor or switch.
Brand
asahydraulik
Connection input
flange
Connection output
flange
Connection sensor (inches)
1/2 internal thread
Depth (mm)
177,5
Filtration fineness (µm)
10
Flow quantity (l/min)
60
Height (mm)
146
Material cooler element
aluminum
Type
ASA Rail System
Weight (kg)
1,396
