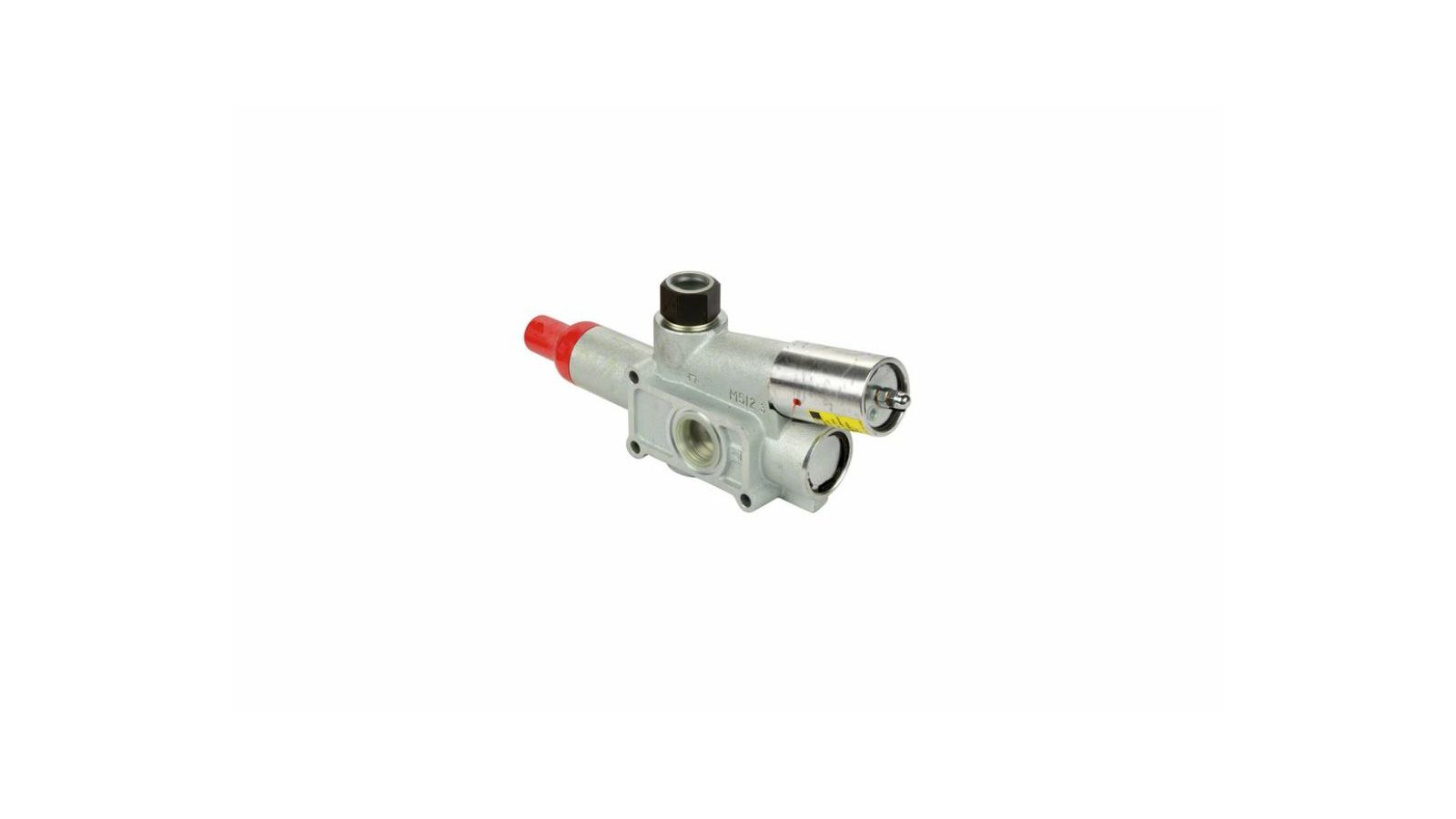

KIPER VENTIL 150/250Bar - SCHWARZMULLER

85750322PV
107194 SCHWARZMULLER
DMP180-160/250
35255SCH
61100028900
CARGOPARTS

---------

Tighten the fastening screws with max. 40 Nm +/- 5 Nm!

Actuation
pneumatic

Connection consumer
G 1 inch internal thread

Connection control line
G 1/8 inch internal thread

Connection pressure input
G 3/4 inch internal thread

Flow lowering operation (l/min)
250

Flow rate tilting operation (l/min)
180

Info 1
mounting screws with

Info 2
max. 40 Nm +/- 5 Nm pull

Material
cast steel

Max. operating pressure (bar)
300

Set pressure (bar)
150/250

Surface
galvanized

Test connection
G 1/8 inch internal thread

Type
DMP180-160/250

Weight (kg)
8,727
