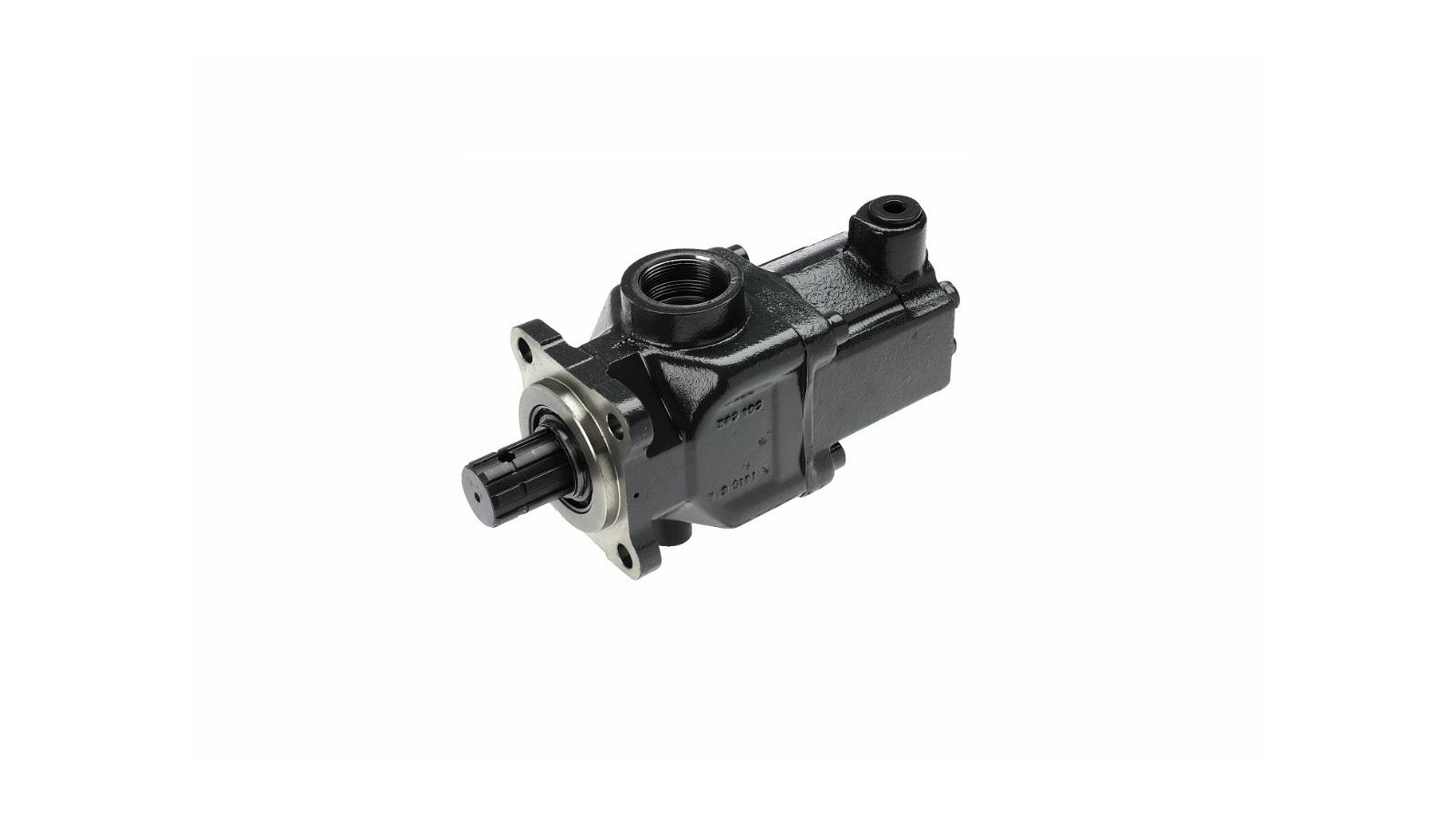

KIPER PUMPA MEILLER TIP265/1, MERCEDES ACTROS, ATEGO, MAN - 52cm3/r, LIJEVA/DESNA

265/1
02652001001MEILLER
0002366105
PAM50 - HYDROLEDUC
0501212721 ZF
0501212720 ZF
OMFB DARK-52 (
10800505225 OMFB
108-005-05225
380954
C382192
81657046027
380954
265/1x
1222666
48/24
SLR2
45104-4202265-90 KAMAZ
81.65704-6027
61102525300
02652001001
A0002366105
F1-61-L
3781061
202.099 SAMPA
75182 AUGER
0515920 hydro leduc
GEO857606
BH174.006, 174006
81657046013
81.65704-6013
265/62 - 02652001001
OMFB DARK 52 ISO SHORT
PZB - 31610502000 - P1 50-4D
201PE050ZSE
255/1

-------------------

Max. revolution (rpm)2000
Delivery rate (cm3/r) 52
Direction of rotation left
Direction of rotation right
Standard drive DIN 5462
Type 265/1
Assembly flange drive: 4-hole 80x80 mm
Weight (kg) 11.678
Suction connection: M 45x2 internal thread
Material housing: cast steel
Pressure connection: M 22x1.5 internal thread
Construction straight
Specification drive: shaft 8x32x36


ZA: MERCEDES-BENZ ACTROS/ ATEGO 2/ ACTROS MP2/ AXOR 2/ LK/ LN2/ LK/ LN2/ LK/ LN2/ LK/ LN2/

Assembly flange drive
4-hole 80x80 mm

Brand
Meiller

Construction form
straight

Delivery rate (cm3/r)
52

Direction of rotation
left
right

Direction of rotation changeable
no

Material housing
cast steel

Max. pressure (bar)
350

Max. revolution (rpm)
2000

Operating pressure (bar)
350

Pressure connection
M 22x1.5 internal thread

Specification drive
shaft 8x32x36

Standard drive
DIN 5462

Suction connection
M 45x2 internal thread

Type
265/1

Weight (kg)
11,678
