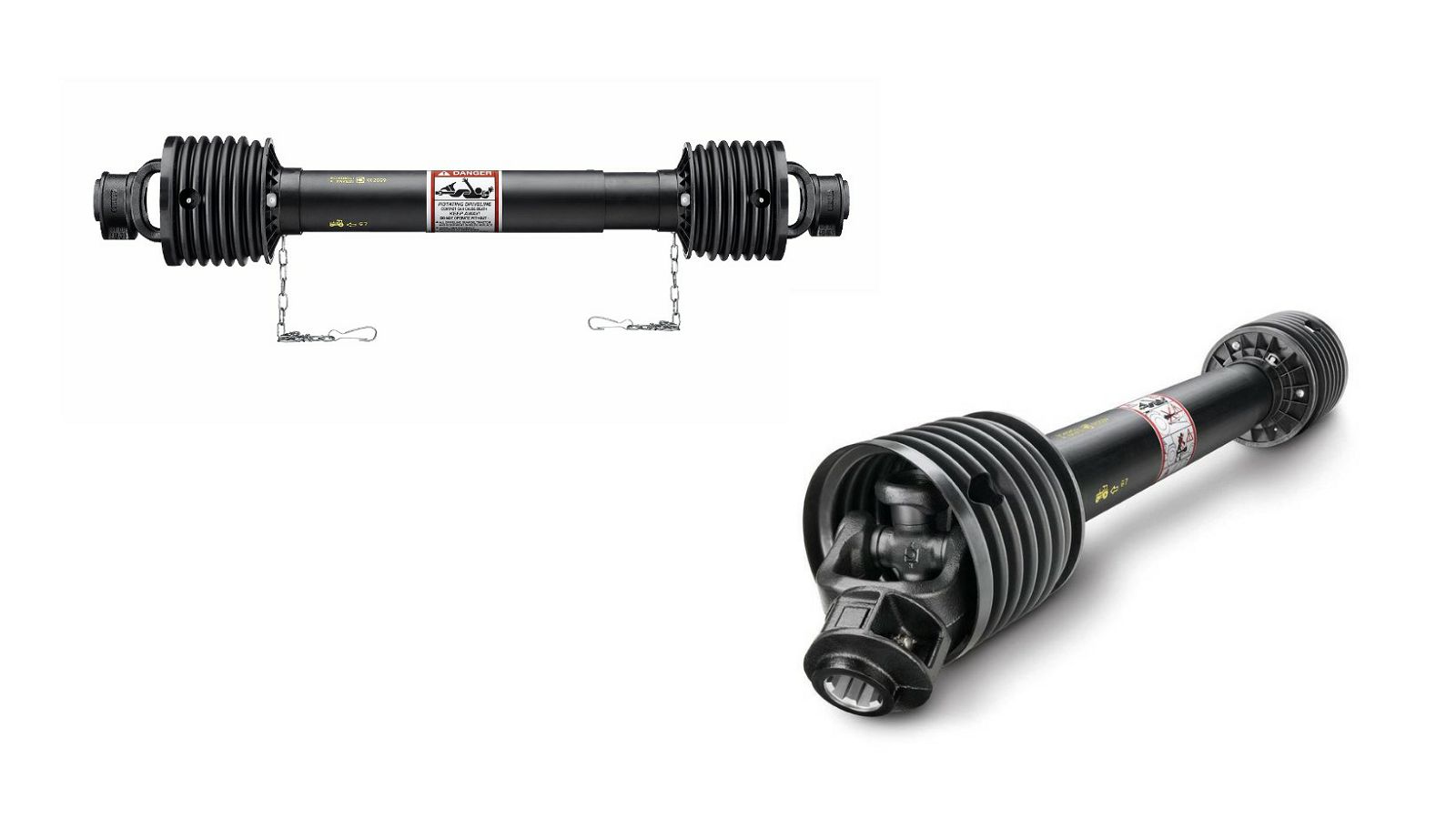

KARDANSKO VRATILO G4, PTO Shaft, L-1210mm, 1 3/8'' x 6 Spline Q.R. to 1 3/8'' x 6 Spline Q.R.

7G4N121CE007007
81100150000

----------

Brand
Bondioli & Pavesi

Connection machine-side
1 3/8 inch 6 teeth

Connection tractor side
1 3/8 inch 6 teeth

Info 1
global

Length (mm)
1210

Manufactured size
G4

Power (kW)
to approx. 40

Profile pairing
7/8

Profile pairing OE
4-36/3.4-43.5

Version machine-side
sliding pin lock

Version tractor side
Schiebestiftverschluss

Weight (kg)
13,648

HP Rating @ 540RPM
35

HP Rating @ 1000RPM
55

HP Rating Range @ 540RPM
up to 54

Implement End
1 3/8'' x 6 Spline Q.R.

Italian Series
Global G4

Kilowatt Power Rating @ 540RPM
26

Kilowatt Power Rating @ 1000RPM
40

Universal Joint Dimensions
27x74.5mm
