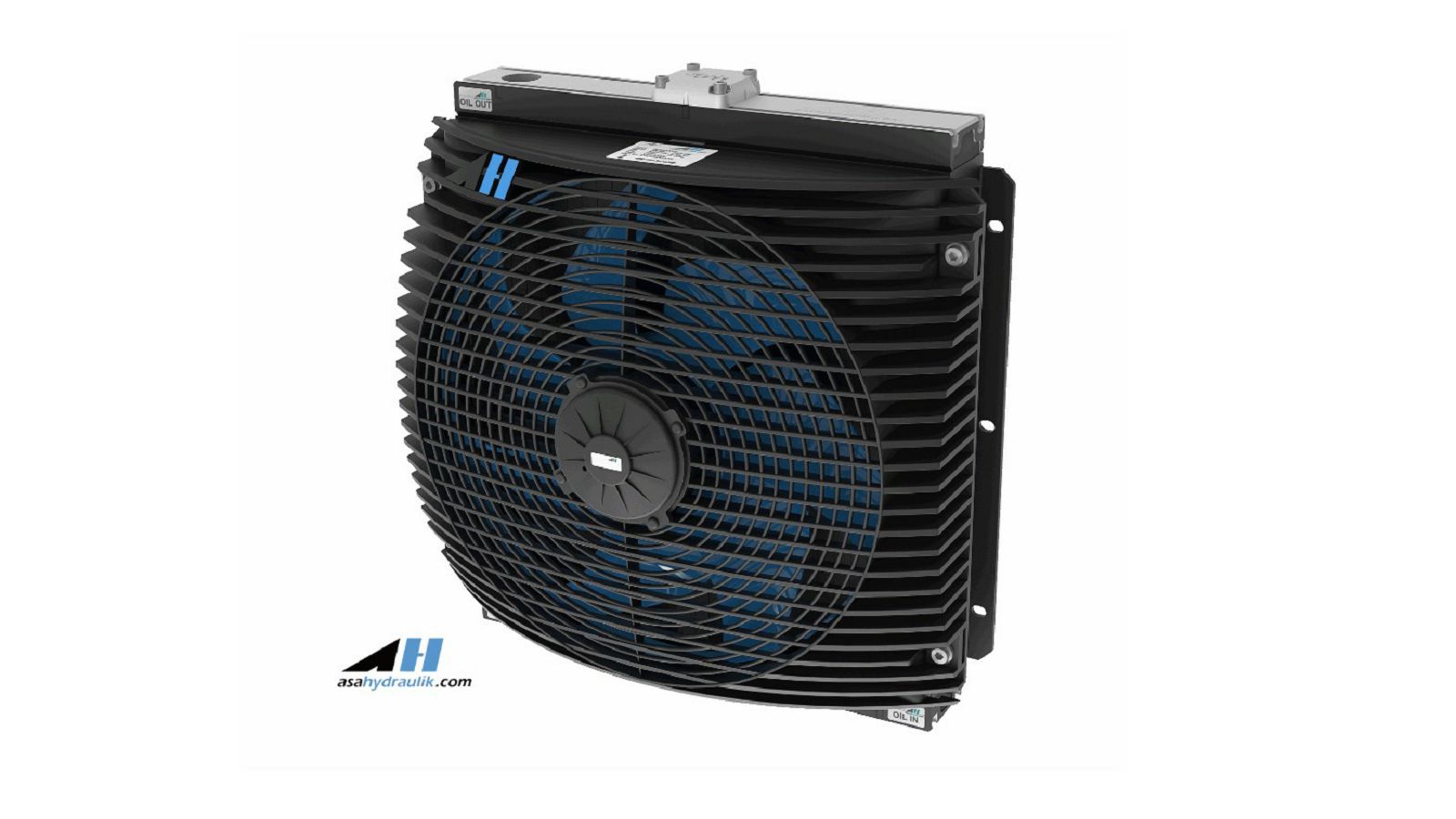

HLADNJAK ULJA TT16 Rail, 25-250l/min, 24V, 210X450X515 - ASA

ASATT16RD02BP
61100378700

--------------

The integration of a bypass system in the cooling element avoids overstressing the cooler during cold starts (high back pressure due to extremely viscous oil).
This design is also used to divert larger amounts of oil in the case of large return quantities such as those that occur when retracting differential hydraulic cylinders. spring-loaded valve in ball design opening pressure: 2 bar

Brand
asahydraulik

Connection input
flange

Connection output
flange

Connection sensor (inches)
1/2 internal thread

Depth (mm)
210

Width (mm)
450

Height (mm)
515

Flow quantity (l/min)
25-250

Info 1
with bypass

Material cooler element
aluminum

Specific cooling capacity (kW/°C)
0,18-0,38

Type
TT16 Rail

Voltage fan motor (V)
24

Weight (kg)
33,5
