ASATT11GD02GT
61100378100
----------

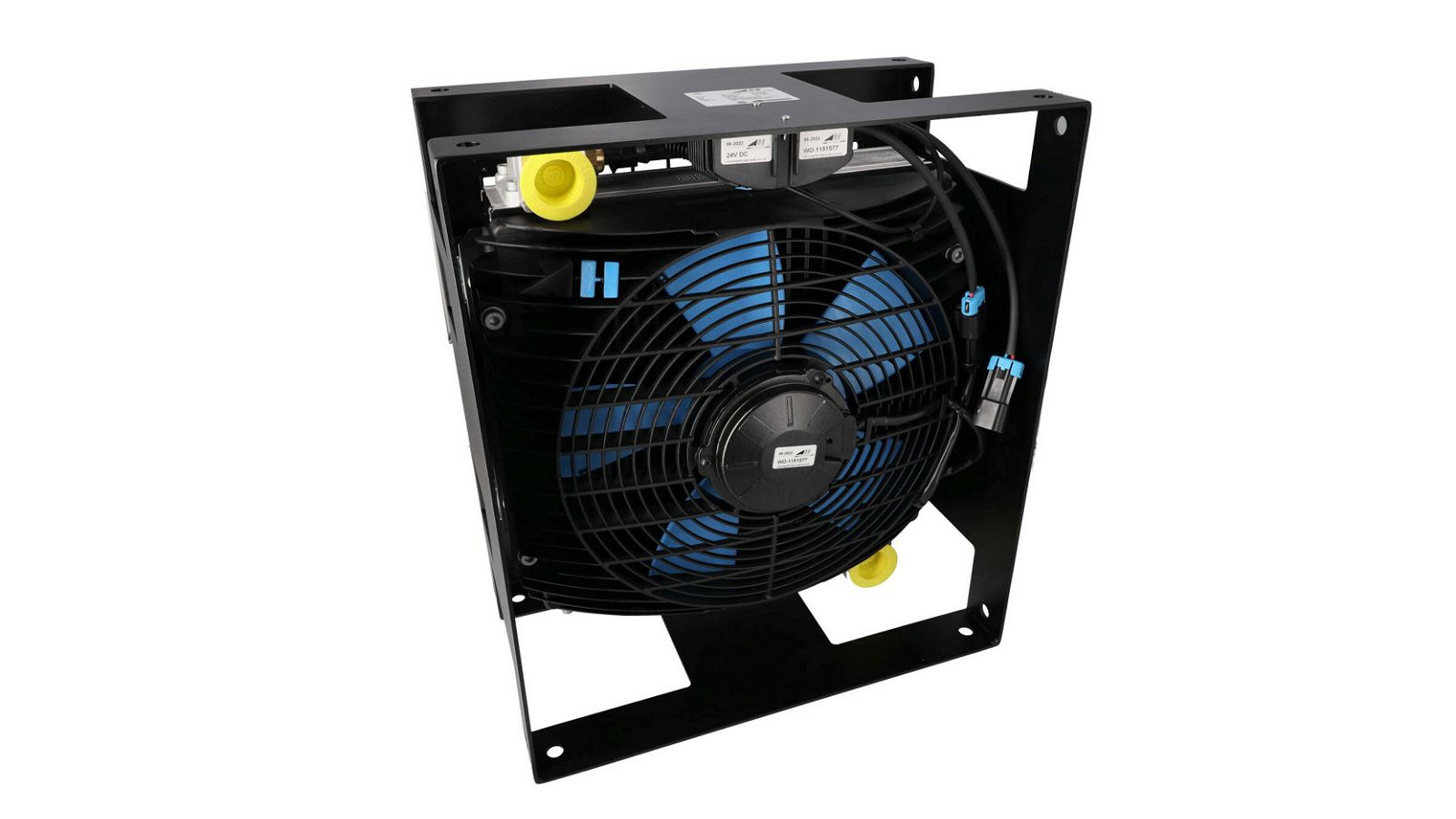

The GT cooler is a pre-assembled cooler package consisting of a vibration damped oil air cooler with DC fan drive, protective housing, mounted rail connectors and pre-wired fan control.
The fan control varies the fan speed according to the oil temperature to minimize noise and maximize fan life.
The protective housing is a rugged steel construction designed specifically for mobile applications.scope of delivery: oil cooler with protective housing, temperature switch, fan control and connections
Brand
asahydraulik
Connection input
flange
Connection output
flange
Connection sensor (inches)
1/2 internal thread
Depth (mm)
240
Flow quantity (l/min)
20-180
Height (mm)
465
Material cooler element
aluminum
Specific cooling capacity (kW/°C)
0,15-0,26
Type
TT11 RailTT
Voltage fan motor (V)
24
Weight (kg)
21,916
Width (mm)
410
