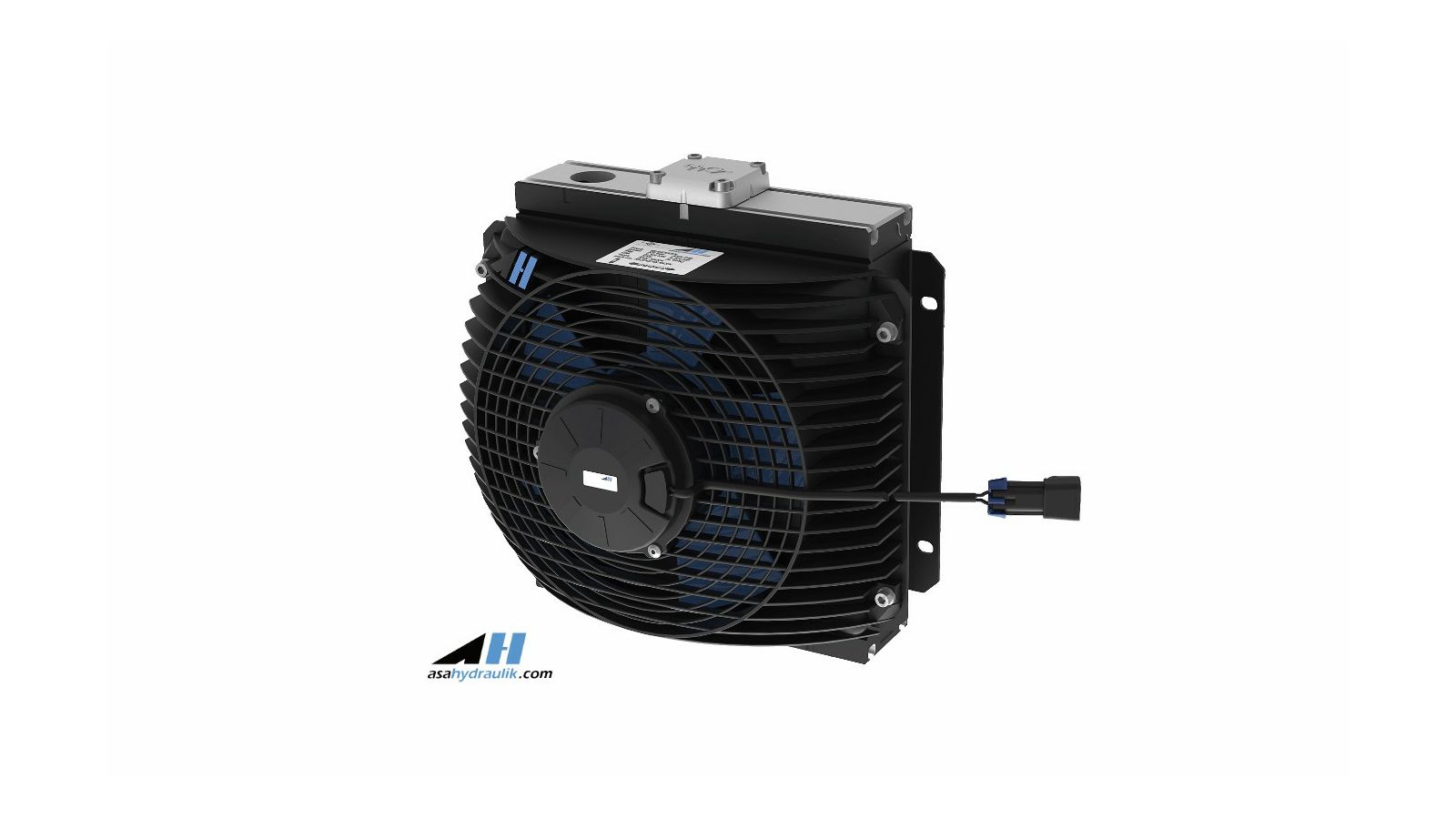

HLADNJAK ULJA TT07BP, 10-150l/min, 24V, 176X320X320, WITH BYPASS - ASA

ASATT07RD04BP
61100308800

------------

The integration of a bypass system in the cooling element avoids overstressing the cooler during cold starts (high back pressure due to extremely viscous oil).
This design is also used to divert larger amounts of oil in the case of large return quantities such as those that occur when retracting differential hydraulic cylinders. spring-loaded valve in ball design opening pressure: 2 bar

Brand
asahydraulik

Connection input
flange

Connection output
flange

Depth (mm)
176

Flow quantity (l/min)
10-150

Height (mm)
320

Info 1
with bypass

Material cooler element
aluminum

Specific cooling capacity (kW/°C)
0,12-0,18

Type
TT07BP Rail

Voltage fan motor (V)
24

Weight (kg)
6

Width (mm)
320
