HLADNJAK ULJA TT07 RailTT, 10-150l/min, 24V - ASA

ASATT07GD04GT
61100377700

-----------

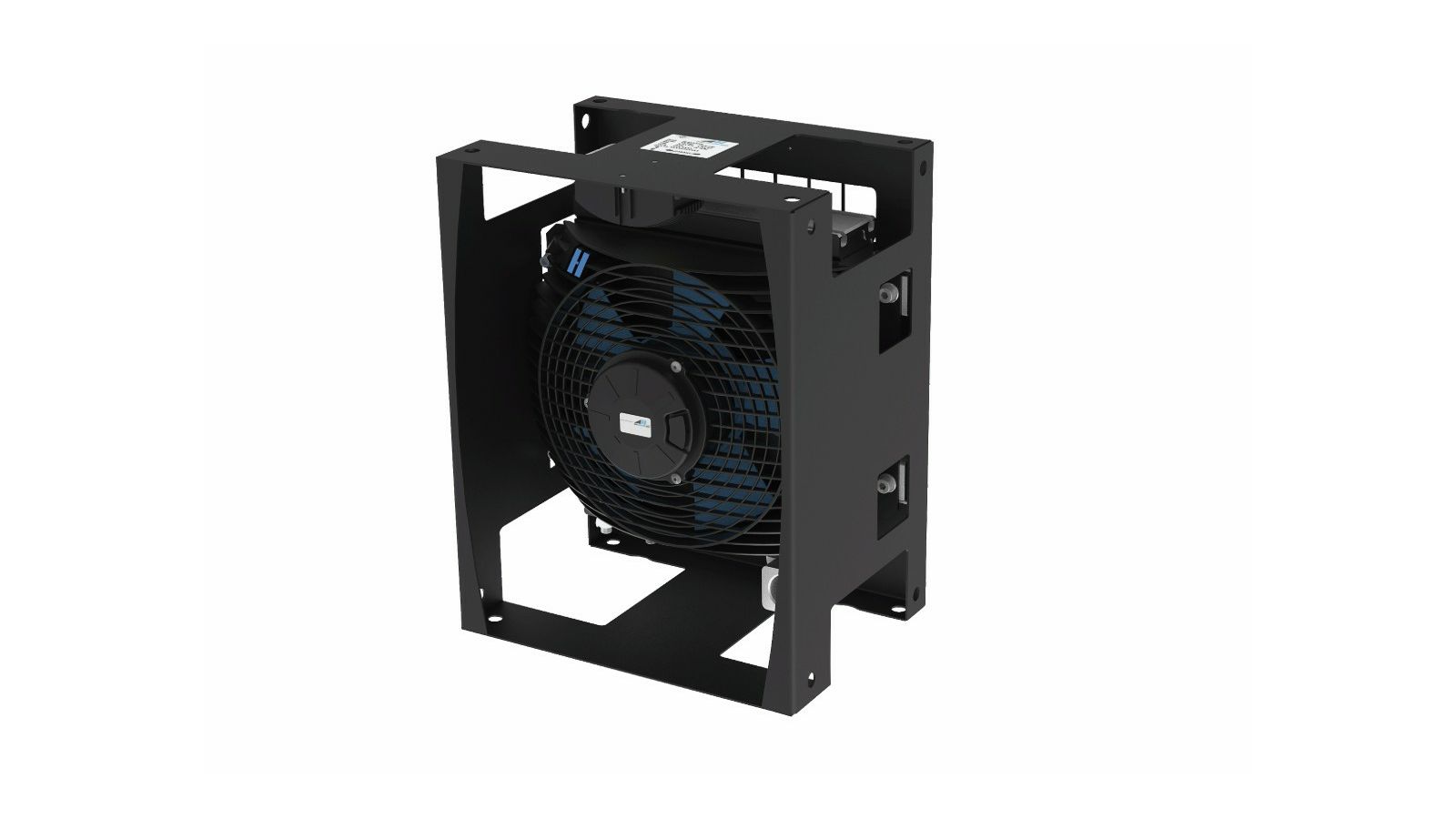

The GT cooler is a pre-assembled cooler package consisting of a vibration damped oil air cooler with DC fan drive, protective housing, mounted rail connectors and pre-wired fan control.
The fan control varies the fan speed according to the oil temperature to minimize noise and maximize fan life.
The protective housing is a rugged steel construction designed specifically for mobile applications.scope of delivery: oil cooler with protective housing, temperature switch, fan control and connections

Brand
asahydraulik

Connection input
flange

Connection output
flange

Depth (mm)
240

Flow quantity (l/min)
10-150

Height (mm)
425

Material cooler element
aluminum

Specific cooling capacity (kW/°C)
0,12-0,18

Type
TT07 RailTT

Voltage fan motor (V)
24

Weight (kg)
14,284

Width (mm)
334
