HLADNJAK ULJA 24V, TT16 RailTT, 25-250l/min - ASA

ASATT16GD02GT
61100378500

-----------

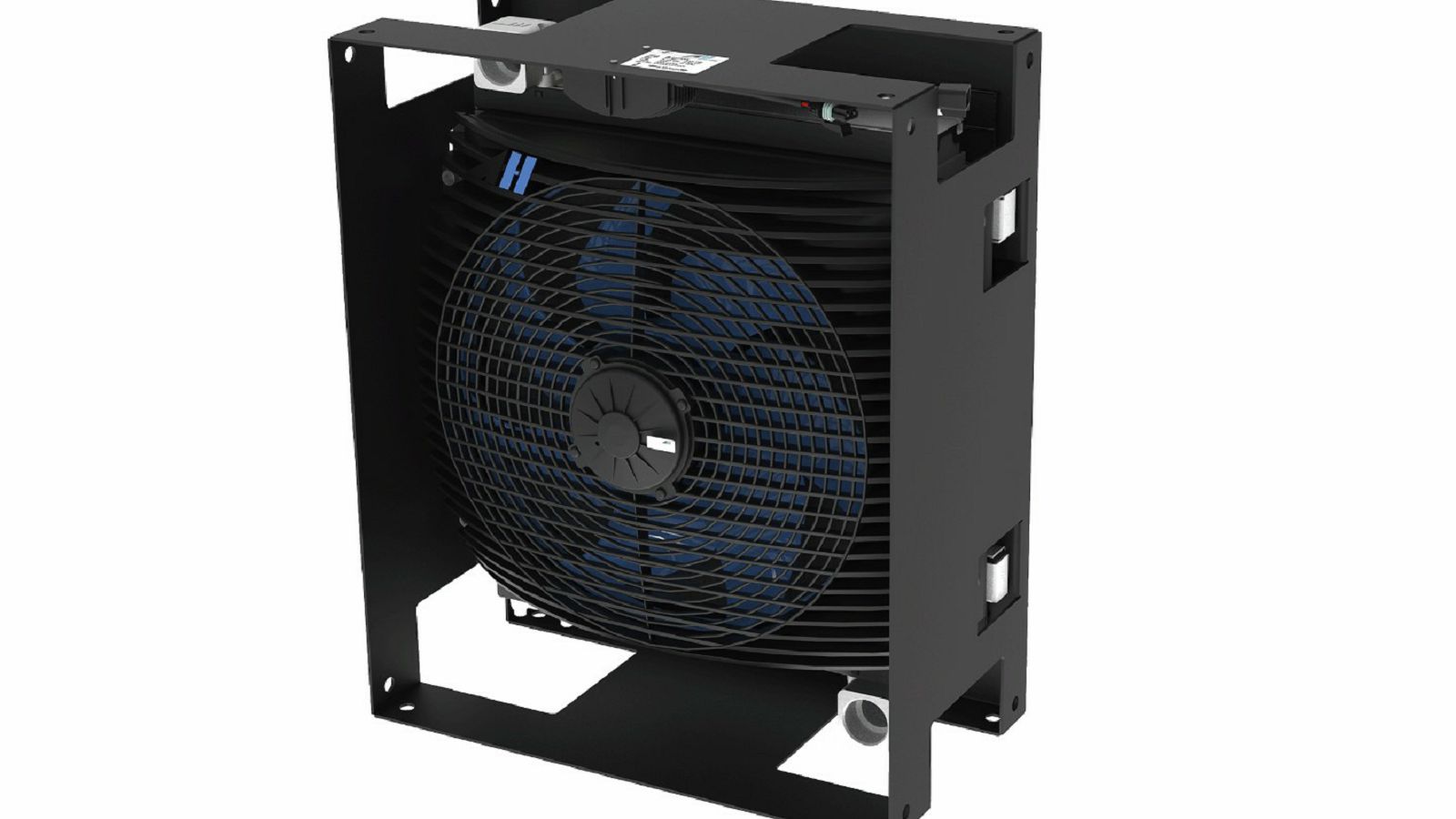

The GT cooler is a pre-assembled cooler package consisting of a vibration damped oil air cooler with DC fan drive, protective housing, mounted rail connectors and pre-wired fan control.
The fan control varies the fan rotational speed according to the oil temperature to minimize noise and maximize fan life.
The protective housing is a rugged steel construction designed specifically for mobile applications.
scope of delivery: oil cooler with protective housing, temperature switch, fan control and connections

Brand
asahydraulik

Connection input
flange

Connection output
flange

Connection sensor (inches)
1/2 internal thread

Depth (mm)
260

Flow quantity (l/min)
25-250

Height (mm)
590

Material cooler element
aluminum

Specific cooling capacity (kW/°C)
0,18-0,38

Type
TT16 RailTT

Voltage fan motor (V)
24

Weight (kg)
32,5

Width (mm)
490
